Roller Pillow Blocks

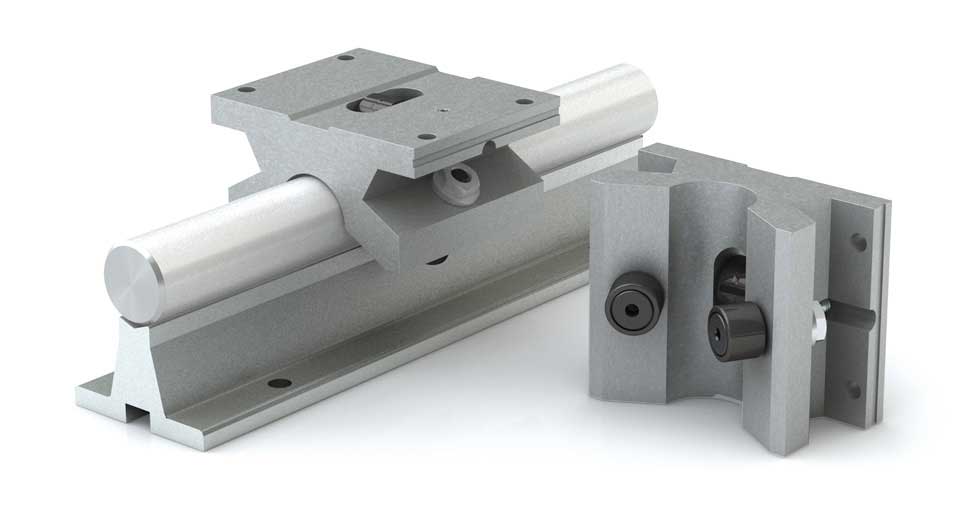

SPB (Inch) Single Roller Pillow Block

SPB (Inch) Single Roller Pillow Block

The Single Roller Pillow Block is constructed from aluminum and coated steel rollers, designed for use with carbon steel shafts. It offers ease of installation, outperforming THK products in several key areas, making it an ideal solution for demanding applications.

  • Long Runs with Butt Joints: Handles shaft joints better than ball bearings due to larger surface areas.
  • High Speeds: Capable of traveling 2.5 times faster than ball bearings, with a maximum speed of ~8 m/s.
  • High Loads: Higher load ratings allow for better shock absorption and the use of smaller roller pillow blocks, saving on shafting costs.
  • Dirty/Contaminated Environments: Outperforms ball bearings in dirty conditions.
  • Higher Temperatures: Standard rollers handle temperatures up to 250°F; high-temp rollers up to 392°F.
  • Load Capacity: Supports loads up to 12,500 pounds.
  • Self-Aligning: Ensures proper alignment during operation.
  • Adjustable Clearance: Allows for precise adjustments.
  • Corrosion Resistant: Designed to withstand harsh environments.
  • High Speeds: Suitable for high-speed applications.
  • Standard Mounting Holes: Easy installation with standard holes.
  • Re-buildable: Can be rebuilt for extended service life.
  • Interchangeable: Compatible with industry-standard components.
Name Shaft Diameter (in) Bearing Width (in) Bearing Length (in) Dynamic Load Rating (lbs) Shop Link
SPB-08-OPN 0.500 2.000 1.500 400 Shop Now
SPB-10-OPN 0.625 2.500 1.750 500 Shop Now
SPB-12-OPN 0.750 2.750 1.875 600 Shop Now
SPB-16-OPN 1.000 3.250 2.625 955 Shop Now
SPB-20-OPN 1.250 4.000 3.375 1400 Shop Now
SPB-24-OPN 1.500 4.750 3.750 1660 Shop Now
SPB-32-OPN 2.000 6.000 4.750 2400 Shop Now
SPB-48-OPN 3.000 8.375 5.500 6260 Shop Now

MSPB (Metric) Single Roller Pillow Block

MSPB (Metric) Single Roller Pillow Block

Low friction Single Roller Pillow Blocks are ideal for standard linear movement and applications involving shaft deflection. These self-aligning blocks can accommodate up to half a degree of misalignment, offering high load capacities, high speeds, and design compatibility with industry-standard blocks. In contaminated environments, the roller bearings effectively push particulates out of the way or roll seamlessly over them. Large rollers are particularly suited for long travel applications, minimizing vibration and ensuring smooth, quiet travel over joined shafts. Roller Pillow Blocks are available in single, double, and twin types in various shaft diameters.

  • Load Capacity: Supports loads up to 12,500 pounds.
  • Self-Aligning: Ensures proper alignment during operation.
  • Adjustable: Allows for precise adjustments.
  • Corrosion Resistant: Designed to withstand harsh environments.
  • High Speeds: Suitable for high-speed applications.
  • Standard Mounting Holes: Easy installation with standard holes.
  • Re-buildable: Can be rebuilt for extended service life.
  • Interchangeable: Compatible with industry-standard components.
Name Shaft Diameter (mm) Bearing Width (mm) Bearing Length (mm) Dynamic Load Rating (N) Shop Link
MSPB-16-OPN 16.00 63.50 44.45 2224.11 Shop Now
MSPB-20-OPN 20.00 69.85 45.34 2668.93 Shop Now
MSPB-25-OPN 25.00 82.55 66.68 4248.05 Shop Now
MSPB-30-OPN 30.00 101.60 85.73 6227.51 Shop Now

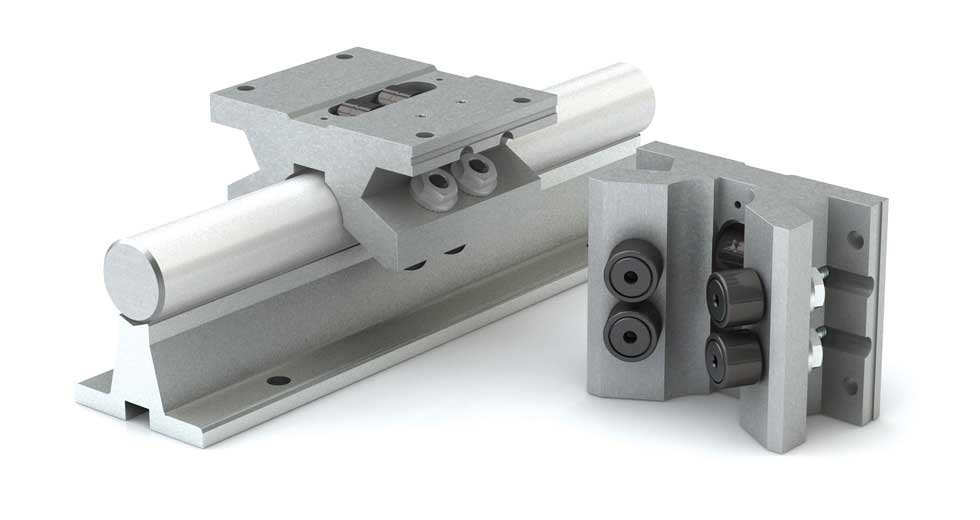

DPB (Inch) Double Roller Pillow Block

DPB (Inch) Double Roller Pillow Block

The Double Roller Pillow Block offers twice the dynamic load rating of a single Roller Pillow Block, providing double the capacity within a similar mounting footprint. This design is ideal for applications requiring longer travel life or increased load capacity. The Roller Pillow Block delivers key performance benefits, including high load capacities, high speeds, and design compatibility with industry-standard blocks. In contaminated environments, the roller bearings efficiently push particulates out of the way or roll seamlessly over them. The large rollers are particularly suited for long travel applications, minimizing vibration and ensuring smooth, quiet travel over joined shafts. Roller Pillow Blocks are available in single, double, and twin types in various shaft diameters.

  • Load Capacity: Supports loads up to 12,500 pounds.
  • Self-Aligning: Ensures proper alignment during operation.
  • Adjustable: Allows for precise adjustments.
  • Corrosion Resistant: Designed to withstand harsh environments.
  • High Speeds: Suitable for high-speed applications.
  • Standard Mounting Holes: Easy installation with standard holes.
  • Re-buildable: Can be rebuilt for extended service life.
  • Interchangeable: Compatible with industry-standard components.
Name Shaft Diameter (in) Bearing Width (in) Bearing Length (in) Dynamic Load Rating (lbs) Shop Link
DPB-08-OPN 0.500 2.000 2.000 800 Shop Now
DPB-10-OPN 0.625 2.500 2.500 1000 Shop Now
DPB-12-OPN 0.750 2.750 2.625 1200 Shop Now
DPB-16-OPN 1.000 3.250 2.625 1910 Shop Now
DPB-20-OPN 1.250 4.000 3.375 2800 Shop Now
DPB-24-OPN 1.500 4.750 3.750 3320 Shop Now
DPB-32-OPN 2.000 6.000 4.750 4800 Shop Now
DPB-48-OPN 3.000 8.375 7.250 12520 Shop Now

MDPB (Metric) Double Roller Pillow Block

MDPB (Metric) Double Roller Pillow Block

The Double Roller Pillow Block offers twice the dynamic load rating of a single Roller Pillow Block, providing double the capacity within a similar mounting footprint. This design is ideal for applications requiring longer travel life or increased load capacity. The Roller Pillow Block delivers key performance benefits, including high load capacities, high speeds, and design compatibility with industry-standard blocks. In contaminated environments, the roller bearings efficiently push particulates out of the way or roll seamlessly over them. The large rollers are particularly suited for long travel applications, minimizing vibration and ensuring smooth, quiet travel over joined shafts. Roller Pillow Blocks are available in single, double, and twin types in various shaft diameters.

  • Load Capacity: Supports loads up to 12,500 pounds.
  • Self-Aligning: Ensures proper alignment during operation.
  • Adjustable: Allows for precise adjustments.
  • Corrosion Resistant: Designed to withstand harsh environments.
  • High Speeds: Suitable for high-speed applications.
  • Standard Mounting Holes: Easy installation with standard holes.
  • Re-buildable: Can be rebuilt for extended service life.
  • Interchangeable: Compatible with industry-standard components.
Name Shaft Diameter (mm) Bearing Width (mm) Bearing Length (mm) Dynamic Load Rating (N) Shop Link
MDPB-16-OPN 16.00 63.50 44.45 4448.22 Shop Now
MDPB-20-OPN 20.00 69.85 45.34 5337.87 Shop Now
MDPB-25-OPN 25.00 82.55 66.68 8496.1 Shop Now
MDPB-30-OPN 30.00 101.60 85.73 12455.02 Shop Now

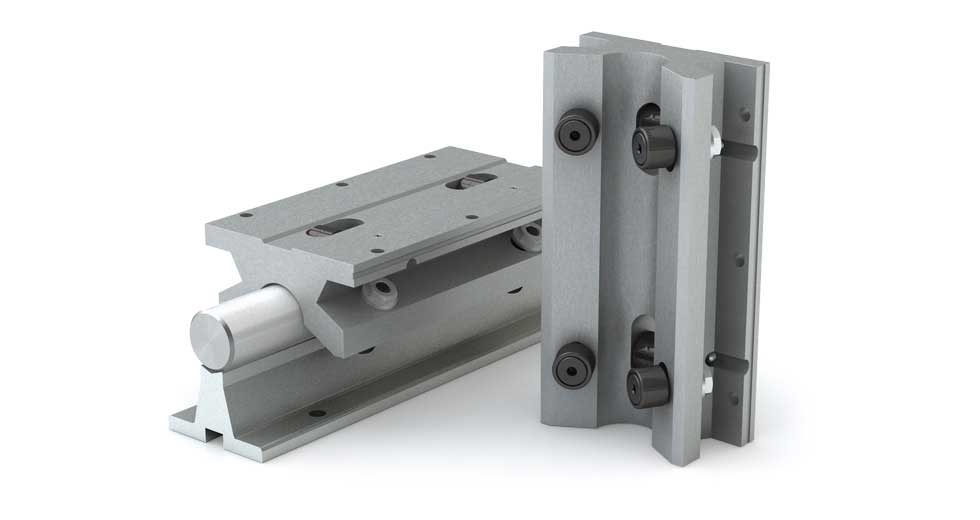

TWN (Inch) Twin Roller Pillow Block

TWN (Inch) Twin Roller Pillow Block

The Twin Roller Pillow Block offers the same load rating as the double model and is an excellent choice when using only one Roller Pillow Block per shaft. The twin model includes an additional pair of mounting holes for enhanced stability. The Roller Pillow Block provides key performance benefits, including high load capacities, high speeds, and design compatibility with industry-standard blocks. In contaminated environments, the roller bearings effectively push particulates out of the way or roll seamlessly over them. Large rollers in the Roller Pillow Block system are well suited for long travel applications, minimizing vibration and ensuring smooth, quiet travel over joined shafts. Roller Pillow Blocks are available in single, double, and twin types in various shaft diameters.

  • Load Capacity: Supports loads up to 12,500 pounds.
  • Self-Aligning: Ensures proper alignment during operation.
  • Adjustable: Allows for precise adjustments.
  • Corrosion Resistant: Designed to withstand harsh environments.
  • High Speeds: Suitable for high-speed applications.
  • Standard Mounting Holes: Easy installation with standard holes.
  • Re-buildable: Can be rebuilt for extended service life.
  • Interchangeable: Compatible with industry-standard components.
Name Shaft Diameter (in) Bearing Width (in) Bearing Length (in) Dynamic Load Rating (lbs) Shop Link
TWN-08-OPN 0.500 2.000 3.500 800 Shop Now
TWN-10-OPN 0.625 2.500 4.000 1000 Shop Now
TWN-12-OPN 0.750 2.750 4.500 1200 Shop Now
TWN-16-OPN 1.000 3.250 6.000 1910 Shop Now
TWN-20-OPN 1.250 4.000 7.500 2800 Shop Now
TWN-24-OPN 1.500 4.750 9.000 3320 Shop Now
TWN-32-OPN 2.000 6.000 12.000 4800 Shop Now

MTWN (Metric) Twin Roller Pillow Block

MTWN (Metric) Twin Roller Pillow Block

The Twin Roller Pillow Block offers the same load rating as the double model and is an excellent choice when using only one Roller Pillow Block per shaft. The twin model includes an additional pair of mounting holes for enhanced stability. The Roller Pillow Block provides key performance benefits, including high load capacities, high speeds, and design compatibility with industry-standard blocks. In contaminated environments, the roller bearings effectively push particulates out of the way or roll seamlessly over them. Large rollers in the Roller Pillow Block system are well suited for long travel applications, minimizing vibration and ensuring smooth, quiet travel over joined shafts. Roller Pillow Blocks are available in single, double, and twin types in various shaft diameters.

  • Load Capacity: Supports loads up to 12,500 pounds.
  • Self-Aligning: Ensures proper alignment during operation.
  • Adjustable: Allows for precise adjustments.
  • Corrosion Resistant: Designed to withstand harsh environments.
  • High Speeds: Suitable for high-speed applications.
  • Standard Mounting Holes: Easy installation with standard holes.
  • Re-buildable: Can be rebuilt for extended service life.
  • Interchangeable: Compatible with industry-standard components.
Name Shaft Diameter (mm) Bearing Width (mm) Bearing Length (mm) Dynamic Load Rating (N) Shop Link
MTWN-16-OPN 16.00 63.50 101.60 4448.22 Shop Now
MTWN-20-OPN 20.00 69.85 114.30 5337.87 Shop Now
MTWN-25-OPN 25.00 82.55 152.40 8496.1 Shop Now
MTWN-30-OPN 30.00 101.60 190.50 12455.02 Shop Now

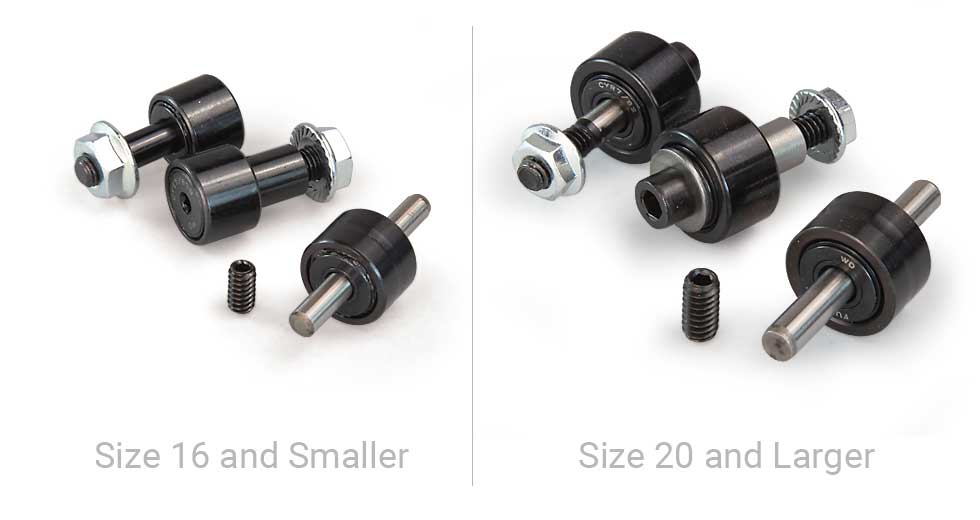

FUBK (Inch) Pillow Block Rebuild Kits

FUBK (Inch) Pillow Block Rebuild Kits

The Roller Pillow Block rebuild kit includes all the necessary components for a complete rebuild of a single roller unit. For a double roller or twin roller rebuild, two kits should be ordered. It is recommended that all parts of a Roller Pillow Block be replaced before re-installation to ensure optimal performance.

Name Price Shop Link
FUBK08 $119.27 Shop Now
FUBK10 $109.60 Shop Now
FUBK12 $113.60 Shop Now
FUBK16 $111.61 Shop Now
FUBK20 $99.21 Shop Now
FUBK24 $101.99 Shop Now
FUBK32 $113.91 Shop Now
FUBK48 $403.15 Shop Now
