CCR (Inch) Ceramic Coated Aluminum Linear Shafting and Rail

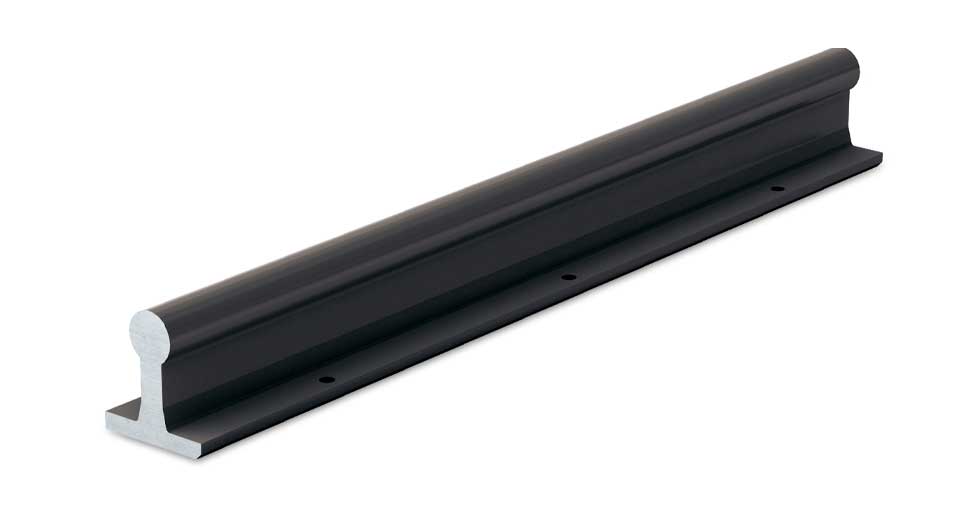

The Ceramic Coated Aluminum Rail Assembly, also known as Feather Rail, is a one-piece integrated shaft and support rail designed to the same dimensions as conventional shaft and support rail assemblies. This integrated design reduces assembly time, complexity, and weight in a single package. Ideal for use in contaminated environments, the ceramic coated aluminum rail assembly offers excellent corrosion resistance and is optimized for use with open shelled Simplicity FrelonGOLD® linear plain bearings and pillow blocks.

• Available in inch sizes from ½” to 2” up to a maximum length of 10 feet
• Offers high load-carrying capacity due to the integral design
• Predrilled mounting holes offer an easy mounting solution, with an option available without mounting holes
• Aluminum alloy base material for lighter weight
• Ceramic-like coating provides hardness up to RC70 and increased corrosion resistance
• Optimized for FrelonGOLD® liners
• NOT to be used with linear ball bearings (Does not apply to linear guide products – MR, UG, UGA, etc.)
• Resistant to weld splatter, paints, and other contaminants
• Non-magnetic and vibration-resistant
• Economical alternative to traditional shaft/rail assemblies
