Linear Shafting Support Rails

SR (Inch) Linear Support Rail - Aluminum

SR (Inch) Linear Support Rail - Aluminum

Aluminum support rails deliver full-length, rigid support for linear shafting, eliminating binding from shaft sagging and thus accommodating higher loads. The SR product number indicates undrilled versions that come in lengths up to 4 feet that can be end-joined for extended continuous support. Suitable for vertical or horizontal mounting, these rails support shaft diameters from 0.5 to 3 inches or, for the SRM product number, 12mm to 50mm.

  • Undrilled aluminum support rail available in inch sizes from ½” to 3”
  • Full-length support rails offer rigid, continuous support for higher loads
  • Eliminates binding caused by shaft deflection or sag
Name Shaft Diameter (in) Length (in) Mounting Hole Diameter (in) Hole Position Y (in) Shop Link
SR08-012.000-SL 0.500 12 Shop Now
SR08-024.000-SL 0.500 24 Shop Now
SR08-036.000-SL 0.500 36 Shop Now
SR10-012.000-SL 0.625 12 Shop Now
SR10-024.000-SL 0.625 24 Shop Now
SR10-036.000-SL 0.625 36 Shop Now
SR12-012.000-SL 0.750 12 Shop Now
SR12-024.000-SL 0.750 24 Shop Now
SR12-036.000-SL 0.750 36 Shop Now
SR16-012.000-SL 1.000 12 Shop Now
SR16-024.000-SL 1.000 24 Shop Now
SR16-036.000-SL 1.000 36 Shop Now
SR20-012.000-SL 1.250 12 Shop Now
SR20-024.000-SL 1.250 24 Shop Now
SR20-036.000-SL 1.250 36 Shop Now
SR24-018.000-SL 1.500 18 Shop Now
SR24-024.000-SL 1.500 24 Shop Now
SR24-036.000-SL 1.500 36 Shop Now
SR32-016.000-SL 2.000 16 Shop Now
SR32-024.000-SL 2.000 24 Shop Now
SR32-036.000-SL 2.000 36 Shop Now
SR48-024.000-SL 3.000 24 0.660 4.000 Shop Now
SR48-036.000-SL 3.000 36 0.660 4.000 Shop Now
SR48-048.000-SL 3.000 48 0.660 4.000 Shop Now

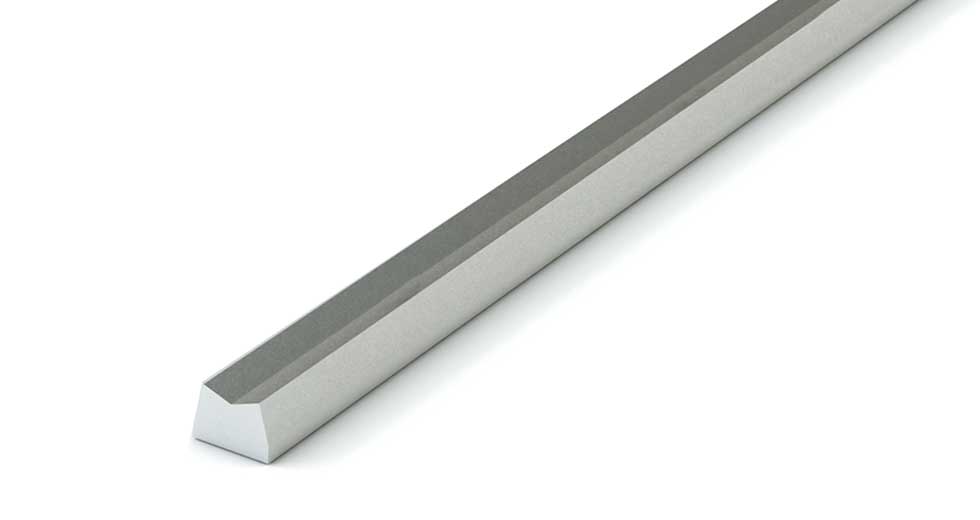

SRM (Metric) Linear Support Rail - Aluminum

SRM (Metric) Linear Aluminum Support Rail

Designed to provide full-length support for metric linear shafting, these durable aluminum alloy support rails are undrilled. Available in lengths up to 1200 mm, the support rails can be end-joined for extended continuous support, allowing for vertical or horizontal mounting of shafting.

  • Undrilled aluminum support rail available in metric sizes from 12 mm to 50 mm
  • Full-length support rails offer rigid, continuous support for higher loads
  • Eliminates binding caused by shaft deflection or sag
Name Shaft Diameter (mm) Length (mm) Mounting Hole Diameter (mm) Hole Position Y (mm) Shop Link
SRM12-0360-SL 12.00 360 Shop Now
SRM12-0600-SL 12.00 600 Shop Now
SRM12-1000-SL 12.00 1000 Shop Now
SRM16-0300-SL 16.00 300 Shop Now
SRM16-0600-SL 16.00 600 Shop Now
SRM16-0900-SL 16.00 900 Shop Now
SRM20-0300-SL 20.00 300 Shop Now
SRM20-0600-SL 20.00 600 Shop Now
SRM20-0900-SL 20.00 900 Shop Now
SRM25-0400-SL 25.00 400 Shop Now
SRM25-0600-SL 25.00 600 Shop Now
SRM25-1000-SL 25.00 1000 Shop Now
SRM30-0400-SL 30.00 400 Shop Now
SRM30-0600-SL 30.00 600 Shop Now
SRM30-1000-SL 30.00 1000 Shop Now
SRM40-0400-SL 40.00 400 Shop Now
SRM40-0600-SL 40.00 600 Shop Now
SRM40-1000-SL 40.00 1000 Shop Now
SRM50-0400-SL 50.00 400 Shop Now
SRM50-0600-SL 50.00 600 Shop Now
SRM50-1000-SL 50.00 1000 Shop Now

SRPD (Inch) Linear Support Rail Pre-Drilled - Aluminum

SRPD (Inch) Linear Aluminum Support Rail Pre-Drilled

Pre-drilled aluminum linear support rails designed to provide full-length durable support for linear shafting. Seamlessly compatibility with predrilled linear shafting. Available in lengths up to 4 feet, the support rails can be end-joined for extended continuous support, allowing for vertical or horizontal mounting of shafting.

  • Predrilled aluminum support rail available in inch sizes from ½” to 3”
  • Full-length support rails offer rigid, continuous support for higher loads
  • Eliminates binding caused by shaft deflection or sag
Name Shaft Diameter (in) Length (in) Mounting Hole Diameter (in) Hole Position Y (in) Shop Link
SR08PD-012.000-SL 0.500 12 0.169 2.000 Shop Now
SR08PD-024.000-SL 0.500 24 0.169 2.000 Shop Now
SR08PD-036.000-SL 0.500 36 169.000 2.000 Shop Now
SR10PD-012.000-SL 0.625 12 0.193 2.000 Shop Now
SR10PD-024.000-SL 0.625 24 0.193 2.000 Shop Now
SR10PD-036.000-SL 0.625 36 0.193 2.000 Shop Now
SR12PD-012.000-SL 0.750 12 0.221 3.000 Shop Now
SR12PD-024.000-SL 0.750 24 0.221 3.000 Shop Now
SR12PD-036.000-SL 0.750 36 0.221 3.000 Shop Now
SR16PD-012.000-SL 1.000 12 0.281 3.000 Shop Now
SR16PD-024.000-SL 1.000 24 0.281 3.000 Shop Now
SR16PD-036.000-SL 1.000 36 0.281 3.000 Shop Now
SR20PD-012.000-SL 1.250 12 0.343 3.000 Shop Now
SR20PD-024.000-SL 1.250 24 0.343 3.000 Shop Now
SR20PD-036.000-SL 1.250 36 0.343 3.000 Shop Now
SR24PD-018.000-SL 1.500 18 0.343 4.000 Shop Now
SR24PD-024.000-SL 1.500 24 0.343 4.000 Shop Now
SR24PD-036.000-SL 1.500 36 0.343 4.000 Shop Now
SR32PD-016.000-SL 2.000 16 0.406 4.000 Shop Now
SR32PD-024.000-SL 2.000 24 0.406 4.000 Shop Now
SR32PD-036.000-SL 2.000 36 0.406 4.000 Shop Now
SR48PD-024.000-SL 3.000 24 0.660 4.000 Shop Now
SR48PD-036.000-SL 3.000 36 0.660 4.000 Shop Now
SR48PD-048.000-SL 3.000 48 0.660 4.000 Shop Now

SRMPD (Metric) Linear Support Rail Pre-Drilled - Aluminum

SRMPD (Metric) Linear Aluminum Support Rail Pre-Drilled

Pre-drilled aluminum linear support rails in metric sizes, designed to provide full-length support for linear shafting. These durable aluminum alloy support rails are predrilled for seamless compatibility with pre-drilled linear shafting. Available in lengths up to 1200 mm, the support rails can be end-joined for extended continuous support, allowing for vertical or horizontal mounting of shafting.

  • Predrilled aluminum support rail available in metric sizes from 12 mm to 50 mm
  • Full-length support rails offer rigid, continuous support for higher loads
  • Eliminates binding caused by shaft deflection or sag
Name Shaft Diameter (mm) Length (mm) Mounting Hole Diameter (mm) Hole Position Y (mm) Shop Link
SRM12PD-0360-SL 12.00 360 4.00 60.00 Shop Now
SRM12PD-0600-SL 12.00 600 4.00 60.00 Shop Now
SRM12PD-1000-SL 12.00 1000 4.00 60.00 Shop Now
SRM16PD-0300-SL 16.00 300 5.00 75.00 Shop Now
SRM16PD-0600-SL 16.00 600 5.00 75.00 Shop Now
SRM16PD-0900-SL 16.00 900 5.00 75.00 Shop Now
SRM20PD-0300-SL 20.00 300 6.00 75.00 Shop Now
SRM20PD-0600-SL 20.00 600 6.00 75.00 Shop Now
SRM20PD-0900-SL 20.00 900 6.00 75.00 Shop Now
SRM25PD-0400-SL 25.00 400 8.00 100.00 Shop Now
SRM25PD-0600-SL 25.00 600 8.00 100.00 Shop Now
SRM25PD-1000-SL 25.00 1000 8.00 100.00 Shop Now
SRM30PD-0400-SL 30.00 400 10.00 100.00 Shop Now
SRM30PD-0600-SL 30.00 600 10.00 100.00 Shop Now
SRM30PD-1000-SL 30.00 1000 10.00 100.00 Shop Now
SRM40PD-0400-SL 40.00 400 10.00 100.00 Shop Now
SRM40PD-0600-SL 40.00 600 10.00 100.00 Shop Now
SRM40PD-1000-SL 40.00 1000 10.00 100.00 Shop Now
SRM50PD-0400-SL 50.00 400 12.00 100.00 Shop Now
SRM50PD-0600-SL 50.00 600 12.00 100.00 Shop Now
SRM50PD-1000-SL 50.00 1000 12.00 100.00 Shop Now

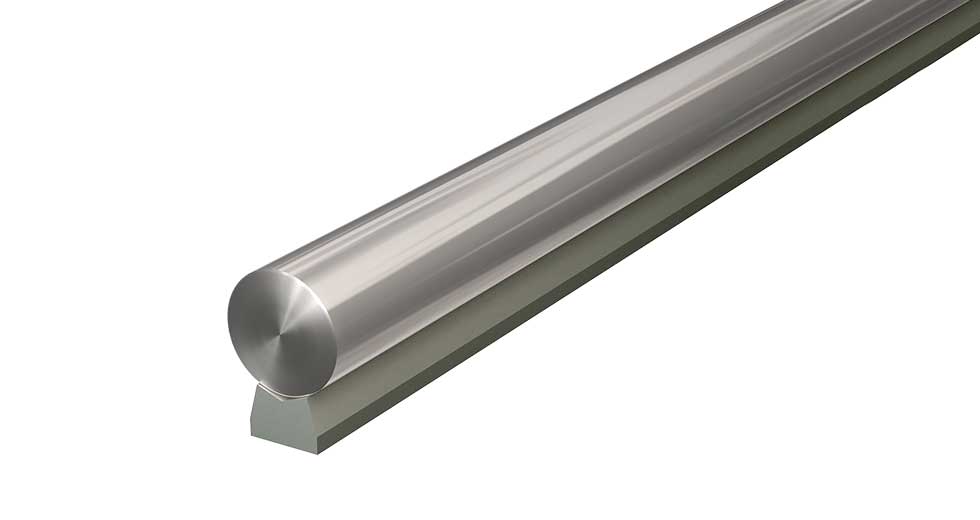

SRA (Inch) Linear Shafting Aluminum Support Rail Assembly

SRA (Inch) Linear Shafting Aluminum Support Rail Assembly

The Steel Shaft Aluminum Rail Assembly is a robust two-piece assembly consisting of a hardened steel predrilled shaft attached to a predrilled aluminum support rail. This shaft rail assembly is ideal for applications requiring high load-carrying capacity and is designed for use with open shelled Simplicity FrelonGOLD® linear plain bearings and pillow blocks.

  • Available in inch sizes from ½” to 3”
  • Provides high load-carrying capacity due to full-length support
  • Predrilled mounting holes offer easy mounting, with an option available without mounting holes
  • Instant bolt-down installation
  • Variety of shaft materials available for diverse applications
Name Shaft Diameter (in) Length (in) Mounting Hole Diameter (in) Hole Position Y (in) Shop Link
SRA08-012.000-SL 0.500 12 0.169 2.000 Shop Now
SRA08-024.000-SL 0.500 24 0.169 2.000 Shop Now
SRA08-036.000-SL 0.500 36 0.169 2.000 Shop Now
SRA10-012.000-SL 0.625 12 0.193 2.000 Shop Now
SRA10-024.000-SL 0.625 24 0.193 2.000 Shop Now
SRA10-036.000-SL 0.625 36 0.193 2.000 Shop Now
SRA12-012.000-SL 0.750 12 0.221 3.000 Shop Now
SRA12-024.000-SL 0.750 24 0.221 3.000 Shop Now
SRA12-036.000-SL 0.750 36 0.221 3.000 Shop Now
SRA16-012.000-SL 1.000 12 0.281 3.000 Shop Now
SRA16-024.000-SL 1.000 24 0.281 3.000 Shop Now
SRA16-036.000-SL 1.000 36 0.281 3.000 Shop Now
SRA20-012.000-SL 1.250 12 0.343 3.000 Shop Now
SRA20-024.000-SL 1.250 24 0.343 3.000 Shop Now
SRA20-036.000-SL 1.250 36 0.343 3.000 Shop Now
SRA24-018.000-SL 1.500 18 0.343 4.000 Shop Now
SRA24-024.000-SL 1.500 24 0.343 4.000 Shop Now
SRA24-036.000-SL 1.500 36 0.343 4.000 Shop Now
SRA32-016.000-SL 2.000 16 0.406 4.000 Shop Now
SRA32-024.000-SL 2.000 24 0.406 4.000 Shop Now
SRA32-036.000-SL 2.000 36 0.406 4.000 Shop Now
SRA48-024.000-SL 3.000 24 0.660 4.000 Shop Now
SRA48-036.000-SL 3.000 36 0.660 4.000 Shop Now
SRA48-048.000-SL 3.000 48 0.066 4.000 Shop Now

SRAM (Metric) Linear Shafting Aluminum Support Rail Assembly

SRAM (Metric) Linear Shafting Aluminum Support Rail Assembly

Metric sized Steel Shaft and Aluminum Rail Assembly is a robust two-piece assembly consisting of a hardened steel predrilled shaft attached to a predrilled aluminum support rail. This shaft rail assembly is ideal for applications requiring high load-carrying capacity and is designed for use with open shelled Simplicity FrelonGOLD® linear plain bearings and pillow blocks.

  • Available in metric sizes from 12 mm to 50 mm
  • Provides high load-carrying capacity due to full-length support
  • Predrilled mounting holes offer easy mounting, with an option available without mounting holes
  • Instant bolt-down installation
  • Variety of shaft materials available for diverse applications
Name Shaft Diameter (mm) Length (mm) Mounting Hole Diameter (mm) Hole Position Y (mm) Shop Link
SRAM12-0360-SL 12.00 360 4.00 60.00 Shop Now
SRAM12-0600-SL 12.00 600 4.00 60.00 Shop Now
SRAM12-1000-SL 12.00 1000 4.00 60.00 Shop Now
SRAM16-0300-SL 16.00 300 5.00 75.00 Shop Now
SRAM16-0600-SL 16.00 600 5.00 75.00 Shop Now
SRAM16-0900-SL 16.00 900 5.00 75.00 Shop Now
SRAM20-0300-SL 20.00 300 6.00 75.00 Shop Now
SRAM20-0600-SL 20.00 600 6.00 75.00 Shop Now
SRAM20-0900-SL 20.00 900 6.00 75.00 Shop Now
SRAM25-0400-SL 25.00 400 8.00 100.00 Shop Now
SRAM25-0600-SL 25.00 600 8.00 100.00 Shop Now
SRAM25-1000-SL 25.00 1000 8.00 100.00 Shop Now
SRAM30-0400-SL 30.00 400 10.00 100.00 Shop Now
SRAM30-0600-SL 30.00 600 10.00 100.00 Shop Now
SRAM30-1000-SL 30.00 1000 10.00 100.00 Shop Now
SRAM40-0400-SL 40.00 400 10.00 100.00 Shop Now
SRAM40-0600-SL 40.00 600 10.00 100.00 Shop Now
SRAM40-1000-SL 40.00 1000 10.00 100.00 Shop Now
SRAM50-0400-SL 50.00 400 12.00 100.00 Shop Now
SRAM50-0600-SL 50.00 600 12.00 100.00 Shop Now
SRAM50-1000-SL 50.00 1000 12.00 100.00 Shop Now

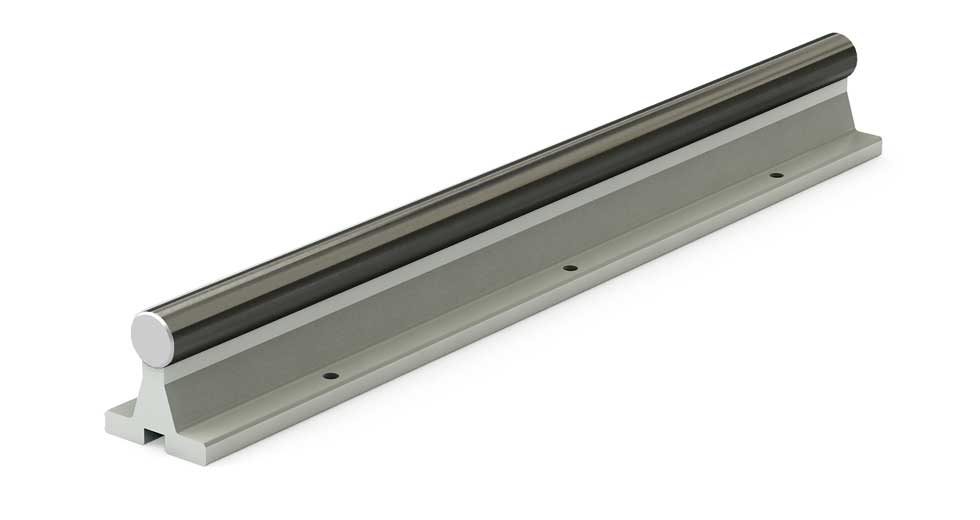

SRACC (Inch) Ceramic Coated Shafting Aluminum Linear Support Rail Assembly

SRACC (Inch) Linear Ceramic Coated Shafting Aluminum Support Rail Assembly

The Ceramic Coated Shaft, Aluminum Rail Assembly is a durable two-piece assembly consisting of a hardened steel predrilled linear shaft made of feather-weight ceramic coated aluminum, attached to a predrilled aluminum support rail. This assembly is ideal for applications requiring high load-carrying capacity and is specifically designed for use with open shelled Simplicity FrelonGOLD® linear plain bearings and pillow blocks.

  • Available in inch sizes from ½” to 3”
  • Provides high load-carrying capacity due to full-length support
  • Predrilled mounting holes offer easy mounting, with an option available without mounting holes
  • Instant bolt-down installation
  • Variety of shaft materials available for diverse applications
  • Ceramic-like coating provides hardness up to RC70 and increased corrosion resistance
  • Optimized for FrelonGOLD® liners
  • NOT to be used with linear ball bearings (Does not apply to linear guide products – MR, UG, UGA, etc.)
Name Shaft Diameter (in) Length (in) Mounting Hole Diameter (in) Hole Position Y (in) Shop Link
SRA08CC-012.000-SL 0.500 12 0.169 2.000 Shop Now
SRA08CC-024.000-SL 0.500 24 0.169 2.000 Shop Now
SRA08CC-036.000-SL 0.500 36 0.169 2.000 Shop Now
SRA10CC-012.000-SL 0.625 12 0.193 2.000 Shop Now
SRA10CC-024.000-SL 0.625 24 0.193 2.000 Shop Now
SRA10CC-036.000-SL 0.625 36 0.193 2.000 Shop Now
SRA12CC-012.000-SL 0.750 12 0.221 3.000 Shop Now
SRA12CC-024.000-SL 0.750 24 0.221 3.000 Shop Now
SRA12CC-036.000-SL 0.750 36 0.221 3.000 Shop Now
SRA16CC-012.000-SL 1.000 12 0.281 3.000 Shop Now
SRA16CC-024.000-SL 1.000 24 0.281 3.000 Shop Now
SRA16CC-036.000-SL 1.000 36 0.281 3.000 Shop Now
SRA20CC-012.000-SL 1.250 12 0.343 3.000 Shop Now
SRA20CC-024.000-SL 1.250 24 0.343 3.000 Shop Now
SRA20CC-036.000-SL 1.250 36 0.343 3.000 Shop Now
SRA24CC-018.000-SL 1.500 18 0.343 4.000 Shop Now
SRA24CC-024.000-SL 1.500 24 0.343 4.000 Shop Now
SRA24CC-036.000-SL 1.500 36 0.343 4.000 Shop Now
SRA32CC-016.000-SL 2.000 16 0.406 4.000 Shop Now
SRA32CC-024.000-SL 2.000 24 0.406 4.000 Shop Now
SRA32CC-036.000-SL 2.000 36 0.406 4.000 Shop Now
SRA48CC-024.000-SL 3.000 24 0.660 4.000 Shop Now
SRA48CC-036.000-SL 3.000 36 0.660 4.000 Shop Now
SRA48CC-048.000-SL 3.000 48 0.066 4.000 Shop Now

SRAMCC (Metric) Linear Ceramic Coated Shafting Aluminum Support Rail Assembly

SRAMCC (Metric) Linear Ceramic Coated Shafting Aluminum Support Rail Assembly

The Ceramic Coated Shaft, Aluminum Rail Assembly is a durable two-piece assembly consisting of a hardened steel predrilled shaft made of feather-weigth ceramic coated aluminum, attached to a predrilled aluminum support rail. This assembly is ideal for applications requiring high load-carrying capacity and is specifically designed for use with open shelled Simplicity FrelonGOLD® linear plain bearings and pillow blocks.

  • Available in metric sizes from 12 mm to 30 mm
  • Provides high load-carrying capacity due to full-length support
  • Predrilled mounting holes offer easy mounting, with an option available without mounting holes
  • Instant bolt-down installation
  • Variety of shaft materials available for diverse applications
  • Ceramic-like coating provides hardness up to RC70 and increased corrosion resistance
  • Optimized for FrelonGOLD® liners
  • NOT to be used with linear ball bearings (Does not apply to linear guide products – MR, UG, UGA, etc.)
Name Shaft Diameter (mm) Length (mm) Mounting Hole Diameter (mm) Hole Position Y (mm) Shop Link
SRAM12CC-0360-SL 12.00 360 4.00 60.00 Shop Now
SRAM12CC-0600-SL 12.00 600 4.00 60.00 Shop Now
SRAM12CC-1000-SL 12.00 1000 4.00 60.00 Shop Now
SRAM16CC-0300-SL 16.00 300 5.00 75.00 Shop Now
SRAM16CC-0600-SL 16.00 600 5.00 75.00 Shop Now
SRAM16CC-0900-SL 16.00 900 5.00 75.00 Shop Now
SRAM20CC-0300-SL 20.00 300 6.00 75.00 Shop Now
SRAM20CC-0600-SL 20.00 600 6.00 75.00 Shop Now
SRAM20CC-0900-SL 20.00 900 6.00 75.00 Shop Now
SRAM25CC-0400-SL 25.00 400 8.00 100.00 Shop Now
SRAM25CC-0600-SL 25.00 600 8.00 100.00 Shop Now
SRAM25CC-1000-SL 25.00 1000 8.00 100.00 Shop Now
SRAM30CC-0400-SL 30.00 400 10.00 100.00 Shop Now
SRAM30CC-0600-SL 30.00 300 10.00 100.00 Shop Now
SRAM30CC-1000-SL 30.00 300 10.00 100.00 Shop Now

SRASS (Inch) Linear Stainless Steel Shafting Aluminum Support Rail Assembly

SRASS (Inch) Linear Stainless Steel Shafting Aluminum Support Rail Assembly

The 440 Stainless Steel Shaft Aluminum Rail Assembly is a durable two-piece assembly consisting of a hardened stainless steel predrilled shaft attached to a predrilled aluminum support rail. This shaft rail assembly is ideal for applications requiring high load-carrying capacity and is designed for use with Simplicity FrelonGOLD® linear plain bearings and pillow blocks.

  • Available in inch sizes from ½” to 3”
  • Provides high load-carrying capacity due to full-length support
  • Predrilled mounting holes offer easy mounting, with an option available without mounting holes
  • Instant bolt-down installation
  • Variety of shaft materials available for diverse applications
Name Shaft Diameter (in) Length (in) Mounting Hole Diameter (in) Hole Position Y (in) Shop Link
SRA08SS-012.000-SL 0.500 12 0.169 2.000 Shop Now
SRA08SS-024.000-SL 0.500 24 0.169 2.000 Shop Now
SRA08SS-036.000-SL 0.500 36 0.169 2.000 Shop Now
SRA10SS-012.000-SL 0.625 12 0.193 2.000 Shop Now
SRA10SS-024.000-SL 0.625 24 0.193 2.000 Shop Now
SRA10SS-036.000-SL 0.625 36 0.193 2.000 Shop Now
SRA12SS-012.000-SL 0.750 12 0.221 3.000 Shop Now
SRA12SS-024.000-SL 0.750 24 0.221 3.000 Shop Now
SRA12SS-036.000-SL 0.750 36 0.221 3.000 Shop Now
SRA16SS-012.000-SL 1.000 12 0.281 3.000 Shop Now
SRA16SS-024.000-SL 1.000 24 0.281 3.000 Shop Now
SRA16SS-036.000-SL 1.000 36 0.281 3.000 Shop Now
SRA20SS-012.000-SL 1.250 12 0.343 3.000 Shop Now
SRA20SS-024.000-SL 1.250 24 0.343 3.000 Shop Now
SRA20SS-036.000-SL 1.250 36 0.343 3.000 Shop Now
SRA24SS-018.000-SL 1.500 18 0.343 4.000 Shop Now
SRA24SS-024.000-SL 1.500 24 0.343 4.000 Shop Now
SRA24SS-036.000-SL 1.500 36 0.343 4.000 Shop Now
SRA32SS-016.000-SL 2.000 16 0.406 4.000 Shop Now
SRA32SS-024.000-SL 2.000 24 0.406 4.000 Shop Now
SRA32SS-036.000-SL 2.000 36 0.406 4.000 Shop Now
SRA48SS-024.000-SL 3.000 24 0.660 4.000 Shop Now
SRA48SS-036.000-SL 3.000 36 0.660 4.000 Shop Now
SRA48SS-048.000-SL 3.000 48 0.066 4.000 Shop Now

SRAMSS (Metric) Linear Stainless Steel Shafting Aluminum Support Rail Assembly

SRAMSS (Metric) Linear Stainless Steel Shafting Aluminum Support Rail Assembly

The 440 Stainless Steel Shaft Aluminum Rail Assembly is a durable two-piece assembly consisting of a hardened stainless steel predrilled shaft attached to a predrilled aluminum support rail. This shaft rail assembly is ideal for applications requiring high load-carrying capacity and is designed for use with open shelled Simplicity FrelonGOLD® linear plain bearings and pillow blocks.

  • Available in metric sizes from 12 mm to 50 mm
  • Provides high load-carrying capacity due to full-length support
  • Predrilled mounting holes offer easy mounting, with an option available without mounting holes
  • Instant bolt-down installation
  • Variety of shaft materials available for diverse applications
Name Shaft Diameter (mm) Length (mm) Mounting Hole Diameter (mm) Hole Position Y (mm) Shop Link
SRAM12SS-0360-SL 12.00 360 4.00 60.00 Shop Now
SRAM12SS-0600-SL 12.00 600 4.00 60.00 Shop Now
SRAM12SS-1000-SL 12.00 1000 4.00 60.00 Shop Now
SRAM16SS-0300-SL 16.00 300 5.00 75.00 Shop Now
SRAM16SS-0600-SL 16.00 600 5.00 75.00 Shop Now
SRAM16SS-0900-SL 16.00 900 5.00 75.00 Shop Now
SRAM20SS-0300-SL 20.00 300 6.00 75.00 Shop Now
SRAM20SS-0600-SL 20.00 600 6.00 75.00 Shop Now
SRAM20SS-0900-SL 20.00 900 6.00 75.00 Shop Now
SRAM25SS-0400-SL 25.00 400 8.00 100.00 Shop Now
SRAM25SS-0600-SL 25.00 600 8.00 100.00 Shop Now
SRAM25SS-1000-SL 25.00 1000 8.00 100.00 Shop Now
SRAM30SS-0400-SL 30.00 400 10.00 100.00 Shop Now
SRAM30SS-0600-SL 30.00 600 10.00 100.00 Shop Now
SRAM30SS-1000-SL 30.00 1000 10.00 100.00 Shop Now
SRAM40SS-0400-SL 40.00 400 10.00 100.00 Shop Now
SRAM40SS-0600-SL 40.00 600 10.00 100.00 Shop Now
SRAM40SS-1000-SL 40.00 1000 10.00 100.00 Shop Now
SRAM50SS-0400-SL 50.00 400 12.00 100.00 Shop Now
SRAM50SS-0600-SL 50.00 600 12.00 100.00 Shop Now
SRAM50SS-1000-SL 50.00 1000 12.00 100.00 Shop Now

CCR (Inch) Ceramic Coated Aluminum Linear Shafting and Rail

CCR (Inch) Ceramic Coated Aluminum Linear Shafting and Rail

The Ceramic Coated Aluminum Rail Assembly, also known as Feather Rail, is a one-piece integrated shaft and support rail designed to the same dimensions as conventional shaft and support rail assemblies. This integrated design reduces assembly time, complexity, and weight in a single package. Ideal for use in contaminated environments, the ceramic coated aluminum rail assembly offers excellent corrosion resistance and is optimized for use with open shelled Simplicity FrelonGOLD® linear plain bearings and pillow blocks.

  • Available in inch sizes from ½” to 2” up to a maximum length of 10 feet
  • Offers high load-carrying capacity due to the integral design
  • Predrilled mounting holes offer an easy mounting solution, with an option available without mounting holes
  • Aluminum alloy base material for lighter weight
  • Ceramic-like coating provides hardness up to RC70 and increased corrosion resistance
  • Optimized for FrelonGOLD® liners
  • NOT to be used with linear ball bearings (Does not apply to linear guide products – MR, UG, UGA, etc.)
  • Resistant to weld splatter, paints, and other contaminants
  • Non-magnetic and vibration-resistant
  • Economical alternative to traditional shaft/rail assemblies
Name Shaft Diameter (in) Length (in) Mounting Hole Diameter (in) Hole Position Y (in) Shop Link
CCR08-012.000-SL 0.500 12 0.169 2.000 Shop Now
CCR08-024.000-SL 0.500 24 0.169 2.000 Shop Now
CCR08-036.000-SL 0.500 36 0.169 2.000 Shop Now
CCR10-012.000-SL 0.625 12 0.193 2.000 Shop Now
CCR10-024.000-SL 0.625 24 0.193 2.000 Shop Now
CCR10-036.000-SL 0.625 36 0.193 2.000 Shop Now
CCR12-012.000-SL 0.750 12 0.221 3.000 Shop Now
CCR12-024.000-SL 0.750 24 0.221 3.000 Shop Now
CCR12-036.000-SL 0.750 36 0.221 3.000 Shop Now
CCR16-012.000-SL 1.000 12 0.281 3.000 Shop Now
CCR16-024.000-SL 1.000 24 0.281 3.000 Shop Now
CCR16-036.000-SL 1.000 36 0.281 3.000 Shop Now
CCR20-012.000-SL 1.250 12 0.343 3.000 Shop Now
CCR20-024.000-SL 1.250 24 0.343 3.000 Shop Now
CCR20-036.000-SL 1.250 36 0.343 3.000 Shop Now
CCR24-012.000-SL 1.500 12 0.343 4.000 Shop Now
CCR24-024.000-SL 1.500 24 0.343 4.000 Shop Now
CCR24-036.000-SL 1.500 36 0.343 4.000 Shop Now
CCR32-012.000-SL 2.000 12 0.406 4.000 Shop Now
CCR32-024.000-SL 2.000 24 0.406 4.000 Shop Now
CCR32-036.000-SL 2.000 36 0.406 4.000 Shop Now

LSR (Inch) Linear Steel Low Support Rail

LSR (Inch) Linear Steel Low Support Rail

Steel low profile lineare support rails designed to provide full-length support for linear shafting. Made from AISI C-1018 steel, these low support rails are undrilled, offering the chance of custom drilling. Available in lengths up to 4 feet, the support rails can be end-joined for extended continuous support, allowing for vertical or horizontal mounting of shafting.

  • Undrilled steel support rail available in inch sizes from ½” to 3”
  • Full-length support rails offer rigid, continuous support for higher loads
  • Eliminates binding caused by shaft deflection or sag
Name Shaft Diameter (in) Length (in) Mounting Hole Diameter (in) Hole Position Y (in) Shop Link
LSR08-012.000-SL 0.500 12 Shop Now
LSR08-024.000-SL 0.500 24 Shop Now
LSR08-036.000-SL 0.500 36 Shop Now
LSR10-012.000-SL 0.625 12 Shop Now
LSR10-024.000-SL 0.625 24 Shop Now
LSR10-036.000-SL 0.625 36 Shop Now
LSR12-012.000-SL 0.750 12 Shop Now
LSR12-024.000-SL 0.750 24 Shop Now
LSR12-036.000-SL 0.750 36 Shop Now
LSR16-012.000-SL 1.000 12 Shop Now
LSR16-024.000-SL 1.000 24 Shop Now
LSR16-036.000-SL 1.000 36 Shop Now
LSR20-012.000-SL 1.250 12 Shop Now
LSR20-024.000-SL 1.250 24 Shop Now
LSR20-036.000-SL 1.250 36 Shop Now
LSR24-018.000-SL 1.500 18 Shop Now
LSR24-024.000-SL 1.500 24 Shop Now
LSR24-036.000-SL 1.500 36 Shop Now
LSR32-016.000-SL 2.000 16 Shop Now
LSR32-024.000-SL 2.000 24 Shop Now
LSR32-036.000-SL 2.000 36 Shop Now
LSR48-024.000-SL 3.000 24 Shop Now
LSR48-036.000-SL 3.000 36 Shop Now
LSR48-048.000-SL 3.000 48 Shop Now

LSRM (Metric) Steel Low Profile Linear Support Rail - Undrilled

LSRM (Metric) Linear Steel Low Support Rail

Lee Linear offers steel low support rails designed to provide full-length support for linear shafting. Made from AISI C-1018 steel, these low support rails are undrilled, offering flexibility for various applications. Available in lengths up to 1200 mm, the support rails can be end-joined for extended continuous support, allowing for vertical or horizontal mounting of shafting.

  • Undrilled steel support rail available in metric sizes from 12 mm to 50 mm
  • Full-length support rails offer rigid, continuous support for higher loads
  • Eliminates binding caused by shaft deflection or sag

LSRPD (Inch) Steel Low Profile Linear Support Rail Pre-Drilled

LSRPD (Inch) Linear Steel Low Support Rail Pre-Drilled

Lee Linear offers predrilled steel low support rails designed to provide full-length support for linear shafting. Made from AISI C-1018 steel, these low support rails are predrilled for seamless compatibility with predrilled linear shafting. Available in lengths up to 4 feet, the support rails can be end-joined for extended continuous support, allowing for vertical or horizontal mounting of shafting.

  • Predrilled steel support rail available in inch sizes from ½” to 3”
  • Full-length support rails offer rigid, continuous support for higher loads
  • Eliminates binding caused by shaft deflection or sag
Name Shaft Diameter (in) Length (in) Mounting Hole Diameter (in) Hole Position Y (in) Shop Link
LSR08PD-012.000-SL 0.500 12 0.169 2.000 Shop Now
LSR08PD-024.000-SL 0.500 24 0.169 2.000 Shop Now
LSR08PD-036.000-SL 0.500 36 169.000 2.000 Shop Now
LSR10PD-012.000-SL 0.625 12 0.193 2.000 Shop Now
LSR10PD-024.000-SL 0.625 24 0.193 2.000 Shop Now
LSR10PD-036.000-SL 0.625 36 0.193 2.000 Shop Now
LSR12PD-012.000-SL 0.750 12 0.221 3.000 Shop Now
LSR12PD-024.000-SL 0.750 24 0.221 3.000 Shop Now
LSR12PD-036.000-SL 0.750 36 0.221 3.000 Shop Now
LSR16PD-012.000-SL 1.000 12 0.281 3.000 Shop Now
LSR16PD-024.000-SL 1.000 24 0.281 3.000 Shop Now
LSR16PD-036.000-SL 1.000 36 0.281 3.000 Shop Now
LSR20PD-012.000-SL 1.250 12 0.343 3.000 Shop Now
LSR20PD-024.000-SL 1.250 24 0.343 3.000 Shop Now
LSR20PD-036.000-SL 1.250 36 0.343 3.000 Shop Now
LSR24PD-018.000-SL 1.500 18 0.343 4.000 Shop Now
LSR24PD-024.000-SL 1.500 24 0.343 4.000 Shop Now
LSR24PD-036.000-SL 1.500 36 0.343 4.000 Shop Now
LSR32PD-016.000-SL 2.000 16 0.406 4.000 Shop Now
LSR32PD-024.000-SL 2.000 24 0.406 4.000 Shop Now
LSR32PD-036.000-SL 2.000 36 0.406 4.000 Shop Now
LSR48PD-024.000-SL 3.000 24 0.660 4.000 Shop Now
LSR48PD-036.000-SL 3.000 36 0.660 4.000 Shop Now
LSR48PD-048.000-SL 3.000 48 0.660 4.000 Shop Now

LSRMPD (Metric) Steel Low Profile Linear Support Rail Pre-Drilled

LSRMPD (Metric) Linear Steel Low Support Rail Pre-Drilled

Lee Linear offers predrilled steel low support rails designed to provide full-length support for linear shafting. Made from AISI C-1018 steel, these low support rails are predrilled for seamless compatibility with predrilled linear shafting. Available in lengths up to 1200 mm, the support rails can be end-joined for extended continuous support, allowing for vertical or horizontal mounting of shafting.

  • Predrilled steel support rail available in metric sizes from 12 mm to 50 mm
  • Full-length support rails offer rigid, continuous support for higher loads
  • Eliminates binding caused by shaft deflection or sag

LSRA (Inch) Linear Steel Low Support Rail and Shaft Assembly

LSRA (Inch) Linear Steel Low Support Rail and Shaft Assembly

Lee Linear offers a precision case-hardened and ground shaft combined with a steel low support rail to provide full-length support for linear shafting. Made from AISI C-1018 steel, these support rails are predrilled for seamless compatibility with predrilled linear shafting. Available in lengths up to 4 feet, the support rails can be end-joined for extended continuous support, allowing for vertical or horizontal mounting of shafting.

  • Precision case-hardened and ground shaft with steel support rail available in inch sizes from ½” to 3”
  • Full-length support rails offer rigid, continuous support for higher loads
  • Eliminates binding caused by shaft deflection or sag
Name Shaft Diameter (in) Length (in) Mounting Hole Diameter (in) Hole Position Y (in) Shop Link
LSRA08-012.000-SL 0.500 12 0.169 2.000 Shop Now
LSRA08-024.000-SL 0.500 24 0.169 2.000 Shop Now
LSRA08-036.000-SL 0.500 36 169.000 2.000 Shop Now
LSRA10-012.000-SL 0.625 12 0.193 2.000 Shop Now
LSRA10-024.000-SL 0.625 24 0.193 2.000 Shop Now
LSRA10-036.000-SL 0.625 36 0.193 2.000 Shop Now
LSRA12-012.000-SL 0.750 12 0.221 3.000 Shop Now
LSRA12-024.000-SL 0.750 24 0.221 3.000 Shop Now
LSRA12-036.000-SL 0.750 36 0.221 3.000 Shop Now
LSRA16-012.000-SL 1.000 12 0.281 3.000 Shop Now
LSRA16-024.000-SL 1.000 24 0.281 3.000 Shop Now
LSRA16-036.000-SL 1.000 36 0.281 3.000 Shop Now
LSRA20-012.000-SL 1.250 12 0.343 3.000 Shop Now
LSRA20-024.000-SL 1.250 24 0.343 3.000 Shop Now
LSRA20-036.000-SL 1.250 36 0.343 3.000 Shop Now
LSRA24-018.000-SL 1.500 18 0.343 4.000 Shop Now
LSRA24-024.000-SL 1.500 24 0.343 4.000 Shop Now
LSRA24-036.000-SL 1.500 36 0.343 4.000 Shop Now
LSRA32-016.000-SL 2.000 16 0.406 4.000 Shop Now
LSRA32-024.000-SL 2.000 24 0.406 4.000 Shop Now
LSRA32-036.000-SL 2.000 36 0.406 4.000 Shop Now
LSRA48-024.000-SL 3.000 24 0.660 4.000 Shop Now
LSRA48-036.000-SL 3.000 36 0.660 4.000 Shop Now
LSRA48-048.000-SL 3.000 48 0.660 4.000 Shop Now

LSRAM (Metric) Linear Steel Low Support Rail and Shaft Assembly

LSRAM (Metric) Linear Steel Low Support Rail and Shaft Assembly

Metric sized variants for a precision case-hardened and ground linear shaft combined with a steel low profile linear support rail to provide full-length support for linear shafting. Made from AISI C-1018 steel, these support rails are predrilled for seamless compatibility with predrilled linear shafting. Available in lengths up to 1200 mm, the support rails can be end-joined for extended continuous support, allowing for vertical or horizontal mounting of shafting.

  • Precision case-hardened and ground shaft with steel support rail available in metric sizes from 12 mm to 50 mm
  • Full-length support rails offer rigid, continuous support for higher loads
  • Eliminates binding caused by shaft deflection or sag
Name Shaft Diameter (mm) Length (mm) Mounting Hole Diameter (mm) Hole Position Y (mm) Shop Link
LSRAM12-0360-SL 12.00 360 4.00 60.00 Shop Now
LSRAM12-0600-SL 12.00 600 4.00 60.00 Shop Now
LSRAM12-1000-SL 12.00 1000 4.00 60.00 Shop Now
LSRAM16-0300-SL 16.00 300 5.00 75.00 Shop Now
LSRAM16-0600-SL 16.00 600 5.00 75.00 Shop Now
LSRAM16-0900-SL 16.00 900 5.00 75.00 Shop Now
LSRAM20-0300-SL 20.00 300 6.00 75.00 Shop Now
LSRAM20-0600-SL 20.00 600 6.00 75.00 Shop Now
LSRAM20-0900-SL 20.00 900 6.00 75.00 Shop Now
LSRAM25-0400-SL 25.00 300 10.00 100.00 Shop Now
LSRAM25-0600-SL 25.00 600 10.00 100.00 Shop Now
LSRAM25-1000-SL 25.00 1000 10.00 100.00 Shop Now
LSRAM30-0400-SL 30.00 300 10.00 100.00 Shop Now
LSRAM30-0600-SL 30.00 600 10.00 100.00 Shop Now
LSRAM30-1000-SL 30.00 1000 10.00 100.00 Shop Now
LSRAM40-0400-SL 40.00 300 10.00 100.00 Shop Now
LSRAM40-0600-SL 40.00 600 10.00 100.00 Shop Now
LSRAM40-1000-SL 40.00 1000 10.00 100.00 Shop Now
LSRAM50-0400-SL 50.00 300 12.00 100.00 Shop Now
LSRAM50-0600-SL 50.00 600 12.00 100.00 Shop Now
LSRAM50-1000-SL 50.00 1000 12.00 100.00 Shop Now

LSG (Inch) Steel Low Profile Linear Support Rail and Shaft Set

LSG (Inch) Linear Steel Low Support Rail and Shaft Set

Sold as a two-piece set, this steel linear shaft and steel support rail feature a shaft that is precision case-hardened and ground, allowing for extended life by enabling rotation for a fresh surface as wear becomes evident. Both sides of the shaft are counterbored, facilitating 180° rotation and rebolting for continued use. The shaft and support rail are not pre-assembled, making it easy to bolt from the top and reduce installation time. Shafts are also available in 440C stainless steel. Note: Drilled-through and counterbored shafts may not be suitable for all linear bearings, and there is no coating on the shaft.

Name Shaft Diameter (in) Length (in) Mounting Hole Diameter (in) Hole Position Y (in) Shop Link
LSG10-012.000-SL 0.625 12 0.193 2.000 Shop Now
LSG10-024.000-SL 0.625 24 0.193 2.000 Shop Now
LSG10-036.000-SL 0.625 36 0.193 2.000 Shop Now
LSG12-012.000-SL 0.750 12 0.221 3.000 Shop Now
LSG12-024.000-SL 0.750 24 0.221 3.000 Shop Now
LSG12-036.000-SL 0.750 36 0.221 3.000 Shop Now
LSG16-012.000-SL 1.000 12 0.281 3.000 Shop Now
LSG16-024.000-SL 1.000 24 0.281 3.000 Shop Now
LSG16-036.000-SL 1.000 36 0.281 3.000 Shop Now
LSG20-012.000-SL 1.250 12 0.343 3.000 Shop Now
LSG20-024.000-SL 1.250 24 0.343 3.000 Shop Now
LSG20-036.000-SL 1.250 36 0.343 3.000 Shop Now
LSG24-018.000-SL 1.500 18 0.343 4.000 Shop Now
LSG24-024.000-SL 1.500 24 0.343 4.000 Shop Now
LSG24-036.000-SL 1.500 36 0.343 4.000 Shop Now
LSG32-016.000-SL 2.000 16 0.406 4.000 Shop Now
LSG32-024.000-SL 2.000 24 0.406 4.000 Shop Now
LSG32-036.000-SL 2.000 36 0.406 4.000 Shop Now

LSGM (Metric) Steel Low Profile Linear Support Rail and Shaft Set

LSGM (Metric) Linear Steel Low Support Rail and Shaft Set

Sold as a two-piece set, this metric sized steel linear shaft and steel support rail feature a shaft that is precision case-hardened and ground, allowing for extended life by enabling rotation for a fresh surface as wear becomes evident. Both sides of the shaft are counterbored, facilitating 180° rotation and rebolting for continued use. The shaft and support rail are not pre-assembled, making it easy to bolt from the top and reduce installation time. Shafts are also available in 440C stainless steel. Note: Drilled-through and counterbored shafts may not be suitable for all linear bearings, and there is no coating on the shaft.

Name Shaft Diameter (mm) Length (mm) Mounting Hole Diameter (mm) Hole Position Y (mm) Shop Link
LSGM16-0300-SL 16.00 300 5.00 75.00 Shop Now
LSGM16-0600-SL 16.00 600 5.00 75.00 Shop Now
LSGM16-0900-SL 16.00 900 5.00 75.00 Shop Now
LSGM20-0300-SL 20.00 300 6.00 75.00 Shop Now
LSGM20-0600-SL 20.00 600 6.00 75.00 Shop Now
LSGM20-0900-SL 20.00 900 6.00 75.00 Shop Now
LSGM25-0400-SL 25.00 400 8.00 100.00 Shop Now
LSGM25-0600-SL 25.00 600 8.00 100.00 Shop Now
LSGM25-1000-SL 25.00 1000 8.00 100.00 Shop Now
LSGM30-0400-SL 30.00 400 10.00 100.00 Shop Now
LSGM30-0600-SL 30.00 600 10.00 100.00 Shop Now
LSGM30-1000-SL 30.00 1000 10.00 100.00 Shop Now
LSGM40-0400-SL 40.00 400 10.00 100.00 Shop Now
LSGM40-0600-SL 40.00 600 10.00 100.00 Shop Now
LSGM40-1000-SL 40.00 1000 10.00 100.00 Shop Now
LSGM50-0400-SL 50.00 400 12.00 100.00 Shop Now
LSGM50-0600-SL 50.00 600 12.00 100.00 Shop Now
LSGM50-1000-SL 50.00 1000 12.00 100.00 Shop Now
