SRA (Inch) Linear Shafting Aluminum Support Rail Assembly

SRA (Inch) Linear Shafting Aluminum Support Rail Assembly

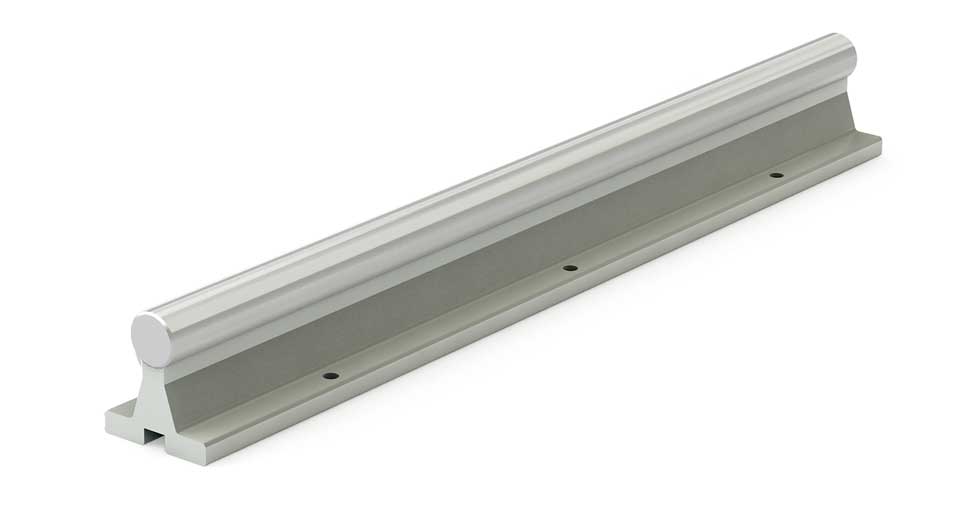

The Steel Shaft Aluminum Rail Assembly is a robust two-piece assembly consisting of a hardened steel predrilled shaft attached to a predrilled aluminum support rail. This shaft rail assembly is ideal for applications requiring high load-carrying capacity and is designed for use with open shelled Simplicity FrelonGOLD® linear plain bearings and pillow blocks.

  • Available in inch sizes from ½” to 3”
  • Provides high load-carrying capacity due to full-length support
  • Predrilled mounting holes offer easy mounting, with an option available without mounting holes
  • Instant bolt-down installation
  • Variety of shaft materials available for diverse applications
Name Shaft Diameter (in) Length (in) Mounting Hole Diameter (in) Hole Position Y (in) Shop Link
SRA08-012.000-SL 0.500 12 0.169 2.000 Shop Now
SRA08-024.000-SL 0.500 24 0.169 2.000 Shop Now
SRA08-036.000-SL 0.500 36 0.169 2.000 Shop Now
SRA10-012.000-SL 0.625 12 0.193 2.000 Shop Now
SRA10-024.000-SL 0.625 24 0.193 2.000 Shop Now
SRA10-036.000-SL 0.625 36 0.193 2.000 Shop Now
SRA12-012.000-SL 0.750 12 0.221 3.000 Shop Now
SRA12-024.000-SL 0.750 24 0.221 3.000 Shop Now
SRA12-036.000-SL 0.750 36 0.221 3.000 Shop Now
SRA16-012.000-SL 1.000 12 0.281 3.000 Shop Now
SRA16-024.000-SL 1.000 24 0.281 3.000 Shop Now
SRA16-036.000-SL 1.000 36 0.281 3.000 Shop Now
SRA20-012.000-SL 1.250 12 0.343 3.000 Shop Now
SRA20-024.000-SL 1.250 24 0.343 3.000 Shop Now
SRA20-036.000-SL 1.250 36 0.343 3.000 Shop Now
SRA24-018.000-SL 1.500 18 0.343 4.000 Shop Now
SRA24-024.000-SL 1.500 24 0.343 4.000 Shop Now
SRA24-036.000-SL 1.500 36 0.343 4.000 Shop Now
SRA32-016.000-SL 2.000 16 0.406 4.000 Shop Now
SRA32-024.000-SL 2.000 24 0.406 4.000 Shop Now
SRA32-036.000-SL 2.000 36 0.406 4.000 Shop Now
SRA48-024.000-SL 3.000 24 0.660 4.000 Shop Now
SRA48-036.000-SL 3.000 36 0.660 4.000 Shop Now
SRA48-048.000-SL 3.000 48 0.066 4.000 Shop Now
