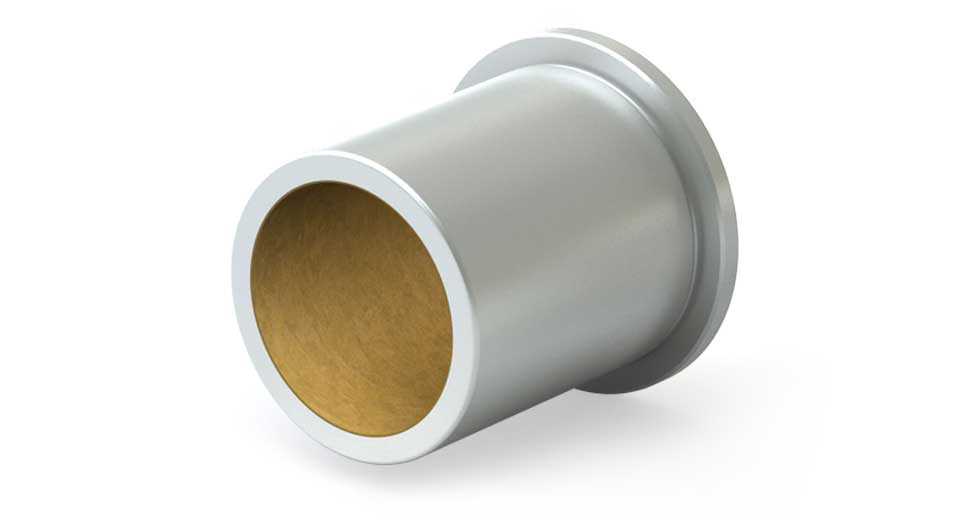

PSF (Inch) Flanged Sleeve Linear Plain Bearing

The Flanged Sleeve Linear Plain Bearings (PSF) are engineered for precision and reliability, offering an alternative to traditional bronze bushings, Babbitt bearings, and “DU” style bearings. These bearings feature a compact design ideal for tight spaces, incorporating Frelon® liners for enhanced performance and longevity. The integrated flange combines the functions of a standard bushing and a thrust washer, reducing complexity and part count. Available in a wide range of Imperial (Inch) sizes, they support both linear and rotary motion simultaneously.

• ID Sizes: From 3/16” to 3”
• Static Load Capacities: Up to 31,000 lb (137 kN)
• Material: Standard shell material is Aluminum; Stainless Steel options available
• Liner: FrelonGOLD® is the standard liner; Frelon J and Frelon W are available as alternatives
• Lubrication: Self-lubricating for maintenance-free operation
• Temperature Range: -240° C to 204° C (-400° F to 400° F)
• Additional Features: Provides vibration dampening for stable operation
• Installation: Can be fitted using press fitting or slip fit with epoxy
• Customization: Custom solutions available upon request
