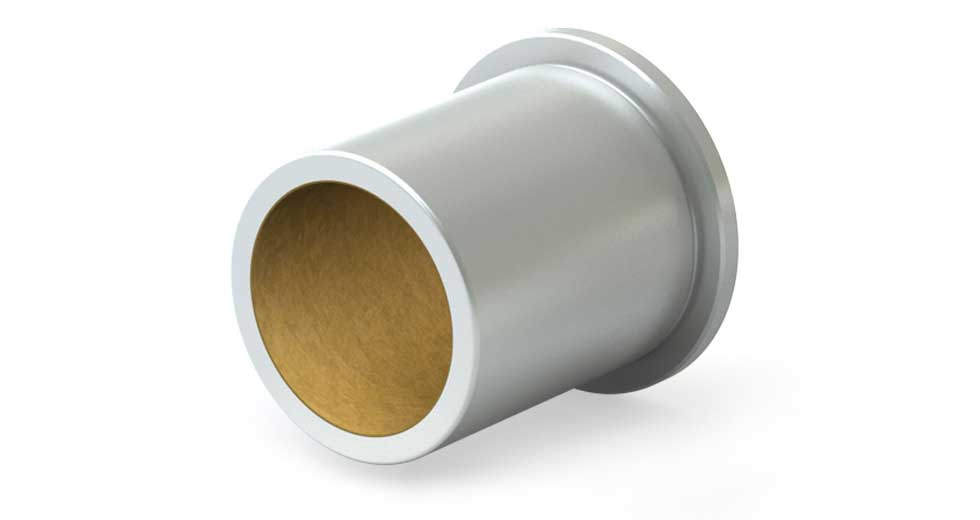

PSFM (Metric) Flanged Sleeve Linear Plain Bearing

The PSFM Flanged Sleeve Linear Plain Bearings offer exceptional performance for linear motion applications, designed to replace traditional bronze bushings, Babbitt bearings, and “DU” style bearings. Featuring a compact and robust design, these bearings incorporate Frelon® liners to ensure durability and efficiency in tight spaces. The integrated flange design combines a standard bushing with a thrust washer, streamlining the assembly and reducing component count. Available in a variety of metric sizes, these bearings accommodate both linear and rotary motion with ease.

• ID Sizes: From 6 mm to 50 mm
• Static Load Capacities: Up to 51 kN (11,000 lbs)
• Material: Aluminum shell as standard; Stainless Steel options available
• Liner: FrelonGOLD® is the standard; Frelon J and Frelon W liners optional
• Lubrication: Self-lubricating for maintenance-free operation
• Temperature Range: -240° C to 204° C (-400° F to 400° F)
• Additional Features: Effective vibration dampening
• Installation: Can be installed using press fitting or slip fit with epoxy
• Customization: Special configurations available upon request
