Linear Shafting End Support Blocks

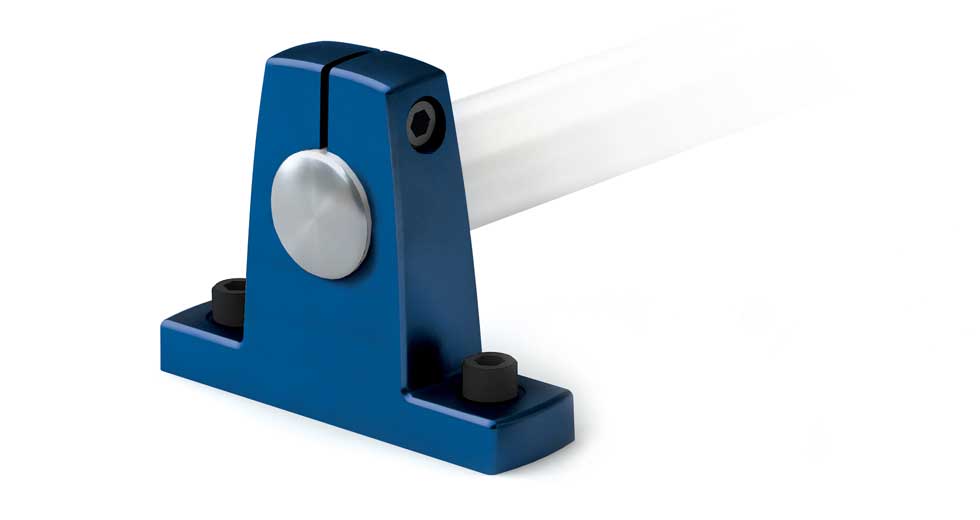

LSB (Inch) Linear Shafting Steel End Support Blocks

LSB (Inch) Linear Shafting Steel End Support Blocks

The Lee Steel End Support Block (LSB) offers a robust and dependable solution for linear shafting support. Constructed from high-grade steel, these blocks are engineered to provide exceptional rigidity and strength, making them suitable for a variety of shaft types. They are designed for applications where shaft deflection is minimal or manageable, ensuring stable and secure performance.

  • Sizes: Available in inch dimensions ranging from 1/4” to 2”
  • Installation: Features a convenient bolt-down design for quick and easy setup
Name Shaft Diameter (in) Height Width Depth Shop Link
LSB08 0.500 1.625 2.000 0.625 Shop Now
LSB10 0.625 1.750 2.500 0.750 Shop Now
LSB12 0.750 2.125 2.750 0.750 Shop Now
LSB16 1.000 2.625 3.312 1.000 Shop Now
LSB20 1.250 3.000 4.000 1.250 Shop Now
LSB24 1.500 3.500 4.750 1.250 Shop Now
LSB32 2.000 4.500 6.000 1.500 Shop Now
