Linear Shafting Support Rails

SRAM (Metric) Linear Shafting Aluminum Support Rail Assembly

SRAM (Metric) Linear Shafting Aluminum Support Rail Assembly

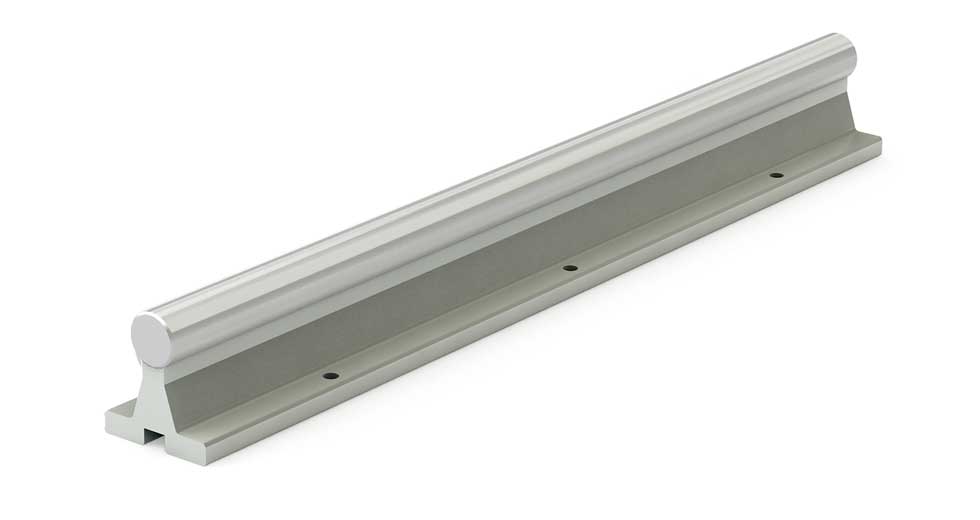

Metric sized Steel Shaft and Aluminum Rail Assembly is a robust two-piece assembly consisting of a hardened steel predrilled shaft attached to a predrilled aluminum support rail. This shaft rail assembly is ideal for applications requiring high load-carrying capacity and is designed for use with open shelled Simplicity FrelonGOLD® linear plain bearings and pillow blocks.

  • Available in metric sizes from 12 mm to 50 mm
  • Provides high load-carrying capacity due to full-length support
  • Predrilled mounting holes offer easy mounting, with an option available without mounting holes
  • Instant bolt-down installation
  • Variety of shaft materials available for diverse applications
Name Shaft Diameter (mm) Length (mm) Mounting Hole Diameter (mm) Hole Position Y (mm) Shop Link
SRAM12-0360-SL 12.00 360 4.00 60.00 Shop Now
SRAM12-0600-SL 12.00 600 4.00 60.00 Shop Now
SRAM12-1000-SL 12.00 1000 4.00 60.00 Shop Now
SRAM16-0300-SL 16.00 300 5.00 75.00 Shop Now
SRAM16-0600-SL 16.00 600 5.00 75.00 Shop Now
SRAM16-0900-SL 16.00 900 5.00 75.00 Shop Now
SRAM20-0300-SL 20.00 300 6.00 75.00 Shop Now
SRAM20-0600-SL 20.00 600 6.00 75.00 Shop Now
SRAM20-0900-SL 20.00 900 6.00 75.00 Shop Now
SRAM25-0400-SL 25.00 400 8.00 100.00 Shop Now
SRAM25-0600-SL 25.00 600 8.00 100.00 Shop Now
SRAM25-1000-SL 25.00 1000 8.00 100.00 Shop Now
SRAM30-0400-SL 30.00 400 10.00 100.00 Shop Now
SRAM30-0600-SL 30.00 600 10.00 100.00 Shop Now
SRAM30-1000-SL 30.00 1000 10.00 100.00 Shop Now
SRAM40-0400-SL 40.00 400 10.00 100.00 Shop Now
SRAM40-0600-SL 40.00 600 10.00 100.00 Shop Now
SRAM40-1000-SL 40.00 1000 10.00 100.00 Shop Now
SRAM50-0400-SL 50.00 400 12.00 100.00 Shop Now
SRAM50-0600-SL 50.00 600 12.00 100.00 Shop Now
SRAM50-1000-SL 50.00 1000 12.00 100.00 Shop Now
