Linear Shafting Support Rails

SRPD (Inch) Linear Support Rail Pre-Drilled - Aluminum

SRPD (Inch) Linear Aluminum Support Rail Pre-Drilled

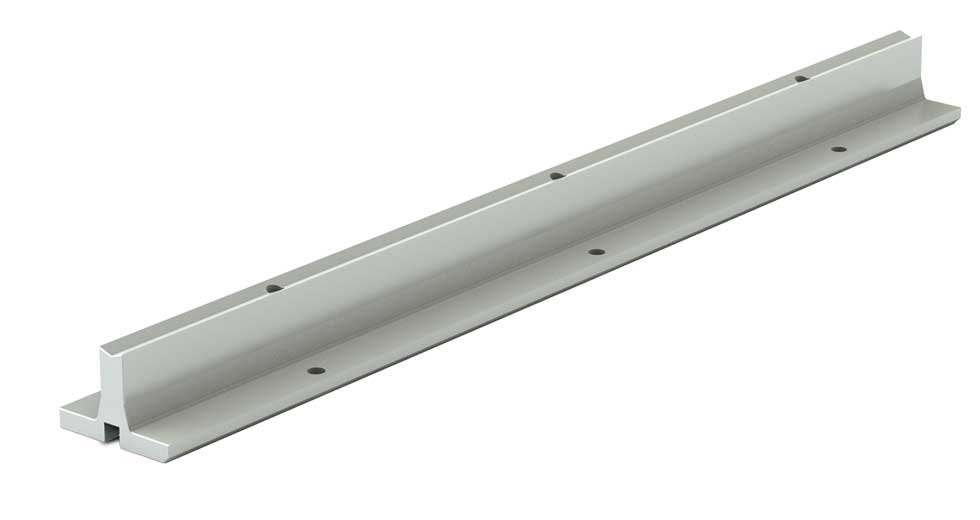

Pre-drilled aluminum linear support rails designed to provide full-length durable support for linear shafting. Seamlessly compatibility with predrilled linear shafting. Available in lengths up to 4 feet, the support rails can be end-joined for extended continuous support, allowing for vertical or horizontal mounting of shafting.

  • Predrilled aluminum support rail available in inch sizes from ½” to 3”
  • Full-length support rails offer rigid, continuous support for higher loads
  • Eliminates binding caused by shaft deflection or sag
Name Shaft Diameter (in) Length (in) Mounting Hole Diameter (in) Hole Position Y (in) Shop Link
SR08PD-012.000-SL 0.500 12 0.169 2.000 Shop Now
SR08PD-024.000-SL 0.500 24 0.169 2.000 Shop Now
SR08PD-036.000-SL 0.500 36 169.000 2.000 Shop Now
SR10PD-012.000-SL 0.625 12 0.193 2.000 Shop Now
SR10PD-024.000-SL 0.625 24 0.193 2.000 Shop Now
SR10PD-036.000-SL 0.625 36 0.193 2.000 Shop Now
SR12PD-012.000-SL 0.750 12 0.221 3.000 Shop Now
SR12PD-024.000-SL 0.750 24 0.221 3.000 Shop Now
SR12PD-036.000-SL 0.750 36 0.221 3.000 Shop Now
SR16PD-012.000-SL 1.000 12 0.281 3.000 Shop Now
SR16PD-024.000-SL 1.000 24 0.281 3.000 Shop Now
SR16PD-036.000-SL 1.000 36 0.281 3.000 Shop Now
SR20PD-012.000-SL 1.250 12 0.343 3.000 Shop Now
SR20PD-024.000-SL 1.250 24 0.343 3.000 Shop Now
SR20PD-036.000-SL 1.250 36 0.343 3.000 Shop Now
SR24PD-018.000-SL 1.500 18 0.343 4.000 Shop Now
SR24PD-024.000-SL 1.500 24 0.343 4.000 Shop Now
SR24PD-036.000-SL 1.500 36 0.343 4.000 Shop Now
SR32PD-016.000-SL 2.000 16 0.406 4.000 Shop Now
SR32PD-024.000-SL 2.000 24 0.406 4.000 Shop Now
SR32PD-036.000-SL 2.000 36 0.406 4.000 Shop Now
SR48PD-024.000-SL 3.000 24 0.660 4.000 Shop Now
SR48PD-036.000-SL 3.000 36 0.660 4.000 Shop Now
SR48PD-048.000-SL 3.000 48 0.660 4.000 Shop Now
