LSRA (Inch) Linear Steel Low Support Rail and Shaft Assembly

LSRA (Inch) Linear Steel Low Support Rail and Shaft Assembly

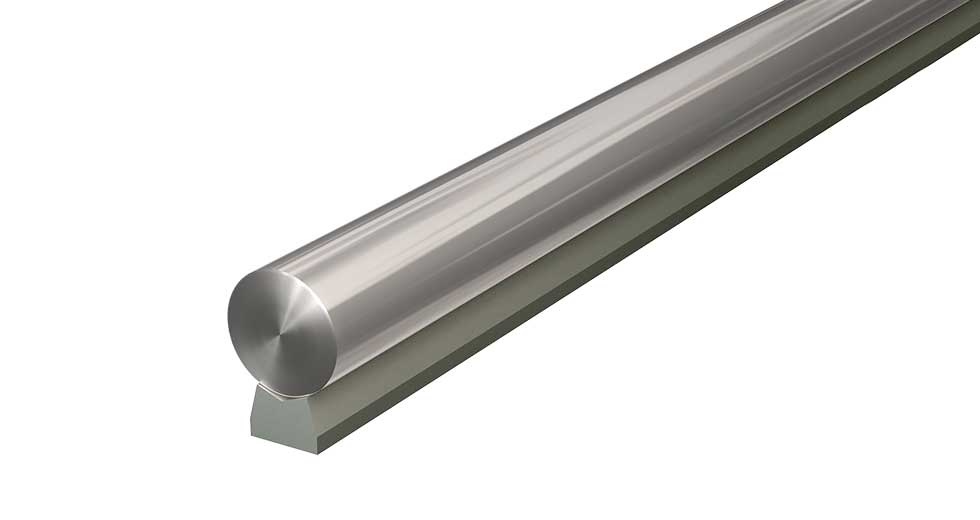

Lee Linear offers a precision case-hardened and ground shaft combined with a steel low support rail to provide full-length support for linear shafting. Made from AISI C-1018 steel, these support rails are predrilled for seamless compatibility with predrilled linear shafting. Available in lengths up to 4 feet, the support rails can be end-joined for extended continuous support, allowing for vertical or horizontal mounting of shafting.

  • Precision case-hardened and ground shaft with steel support rail available in inch sizes from ½” to 3”
  • Full-length support rails offer rigid, continuous support for higher loads
  • Eliminates binding caused by shaft deflection or sag
Name Shaft Diameter (in) Length (in) Mounting Hole Diameter (in) Hole Position Y (in) Shop Link
LSRA08-012.000-SL 0.500 12 0.169 2.000 Shop Now
LSRA08-024.000-SL 0.500 24 0.169 2.000 Shop Now
LSRA08-036.000-SL 0.500 36 169.000 2.000 Shop Now
LSRA10-012.000-SL 0.625 12 0.193 2.000 Shop Now
LSRA10-024.000-SL 0.625 24 0.193 2.000 Shop Now
LSRA10-036.000-SL 0.625 36 0.193 2.000 Shop Now
LSRA12-012.000-SL 0.750 12 0.221 3.000 Shop Now
LSRA12-024.000-SL 0.750 24 0.221 3.000 Shop Now
LSRA12-036.000-SL 0.750 36 0.221 3.000 Shop Now
LSRA16-012.000-SL 1.000 12 0.281 3.000 Shop Now
LSRA16-024.000-SL 1.000 24 0.281 3.000 Shop Now
LSRA16-036.000-SL 1.000 36 0.281 3.000 Shop Now
LSRA20-012.000-SL 1.250 12 0.343 3.000 Shop Now
LSRA20-024.000-SL 1.250 24 0.343 3.000 Shop Now
LSRA20-036.000-SL 1.250 36 0.343 3.000 Shop Now
LSRA24-018.000-SL 1.500 18 0.343 4.000 Shop Now
LSRA24-024.000-SL 1.500 24 0.343 4.000 Shop Now
LSRA24-036.000-SL 1.500 36 0.343 4.000 Shop Now
LSRA32-016.000-SL 2.000 16 0.406 4.000 Shop Now
LSRA32-024.000-SL 2.000 24 0.406 4.000 Shop Now
LSRA32-036.000-SL 2.000 36 0.406 4.000 Shop Now
LSRA48-024.000-SL 3.000 24 0.660 4.000 Shop Now
LSRA48-036.000-SL 3.000 36 0.660 4.000 Shop Now
LSRA48-048.000-SL 3.000 48 0.660 4.000 Shop Now
