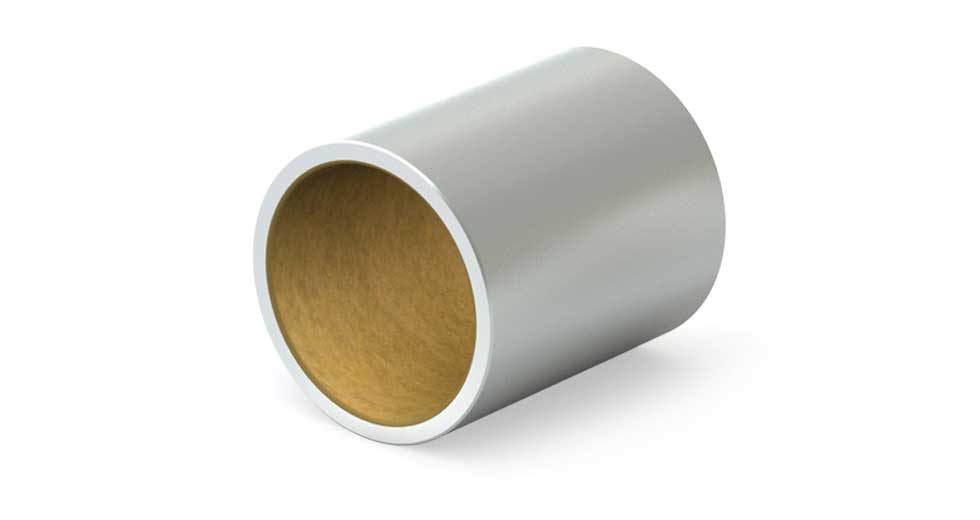

PS (Inch) Sleeve Linear Plain Bearings

The Sleeve Linear Plain Bearings (PS) are engineered for versatility and performance, making them a great alternative to traditional bronze bushings, Babbitt bearings, and "DU" style bearings. Their compact design allows them to fit into tight spaces while offering reliable linear and rotary motion. Equipped with Frelon® liners, these bearings are built for durability and long-term use across a wide range of applications.

• ID Sizes: Available from 3/16” to 3”
• Static Load Capacities: Up to 31,000 lb (137 kN)
• Material: Standard shell material is Aluminum; Stainless Steel options available
• Liner: FrelonGOLD® is standard; Frelon J & Frelon W available as options
• Lubrication: Self-lubricating for oil-free operation
• Temperature Range: -400° F to 400° F (-240° C to 204° C)
• Additional Features: Vibration dampening
• Installation: Can be installed by press fitting or slip fit with epoxy
• Customization: Special configurations available upon request
