PSM (Metric) Sleeve Linear Plain Bearings

PSM (Metric) Sleeve Linear Plain Bearings

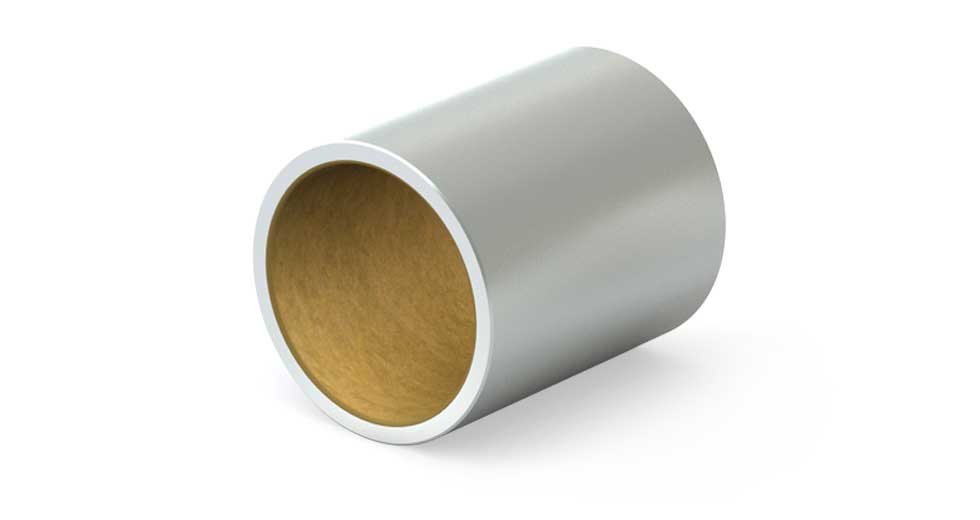

The Sleeve Linear Plain Bearings (PSM) are crafted to provide a reliable and high-performance alternative to traditional bronze bushings, Babbitt bearings, and “DU” style bearings. Their compact design fits seamlessly into confined spaces, and the inclusion of Frelon® liners ensures exceptional durability and long-term performance. These bearings support both linear and rotary motion, making them versatile for various applications.

  • ID Sizes: Ranges from 6 mm to 60 mm
  • Static Load Capacities: Up to 74 kN (16,000 lbs)
  • Material: Standard shell material is Aluminum; Stainless Steel options available
  • Liner: FrelonGOLD® is the standard liner; Frelon J and Frelon W are available as options
  • Lubrication: Self-lubricating for oil-free operation
  • Temperature Range: -240° C to 204° C (-400° F to 400° F)
  • Additional Features: Vibration dampening for enhanced stability
  • Installation: Can be installed via press fitting or slip fit with epoxy
  • Customization: Special configurations available upon request
Name Nominal ID (mm) Nominal OD (mm) Shaft Diameter (mm) Static Load (N) Shop Link
PSM0610-06 6.04 10.03 6.00 745.00 Shop Now
PSM0610-10 6.04 10.03 6.00 1236.00 Shop Now
PSM0812-08 8.05 12.04 8.00 1314.00 Shop Now
PSM0812-12 8.05 12.04 8.00 1981.00 Shop Now
PSM0814-08 8.05 14.04 8.00 1314.00 Shop Now
PSM0814-12 8.05 14.04 8.00 1981.00 Shop Now
PSM1014-10 10.05 14.04 10.00 2059.00 Shop Now
PSM1014-16 10.05 14.04 10.00 3295.00 Shop Now
PSM1216-12 12.05 16.04 12.00 2961.00 Shop Now
PSM1216-16 12.05 16.04 12.00 3962.00 Shop Now
PSM1519-16 15.05 19.05 15.00 4942.00 Shop Now
PSM1620-12 16.06 20.05 16.00 3962.00 Shop Now
PSM1620-16 16.06 20.05 16.00 5276.00 Shop Now
PSM1620-25 16.06 20.05 16.00 8237.00 Shop Now
PSM2025-16 20.06 25.05 16.00 6590.00 Shop Now
PSM2025-20 20.06 25.05 20.00 8237.00 Shop Now
PSM2025-25 20.06 25.05 20.00 10296.00 Shop Now
PSM2025-30 20.06 25.05 20.00 12356.00 Shop Now
PSM2530-20 25.07 30.05 25.00 10296.00 Shop Now
PSM2530-25 25.07 30.05 25.00 12865.00 Shop Now
PSM2530-30 25.07 30.05 25.00 15454.00 Shop Now
PSM2535-25 25.07 35.06 25.00 12865.00 Shop Now
PSM2535-35 25.07 35.06 25.00 18023.00 Shop Now
PSM3035-25 30.07 35.06 30.00 15454.00 Shop Now
PSM3035-30 30.07 35.06 30.00 18533.00 Shop Now
PSM3040-35 30.07 40.06 30.00 21632.00 Shop Now
PSM3040-50 30.07 40.06 30.00 30889.00 Shop Now
PSM3545-25 35.08 45.05 35.00 18023.00 Shop Now
PSM3545-40 35.08 45.05 35.00 28830.00 Shop Now
PSM3545-50 35.08 45.05 35.00 36047.00 Shop Now
PSM4050-30 40.08 50.06 40.00 24711.00 Shop Now
PSM4050-40 40.08 50.06 40.00 32948.00 Shop Now
PSM5060-35 50.10 60.08 50.00 36047.00 Shop Now
PSM5060-50 50.10 60.08 50.00 51482.00 Shop Now
PSM6070-60 60.10 70.08 60.00 74133.00 Shop Now
