Linear Shafting Support Rails

LSGM (Metric) Steel Low Profile Linear Support Rail and Shaft Set

LSGM (Metric) Linear Steel Low Support Rail and Shaft Set

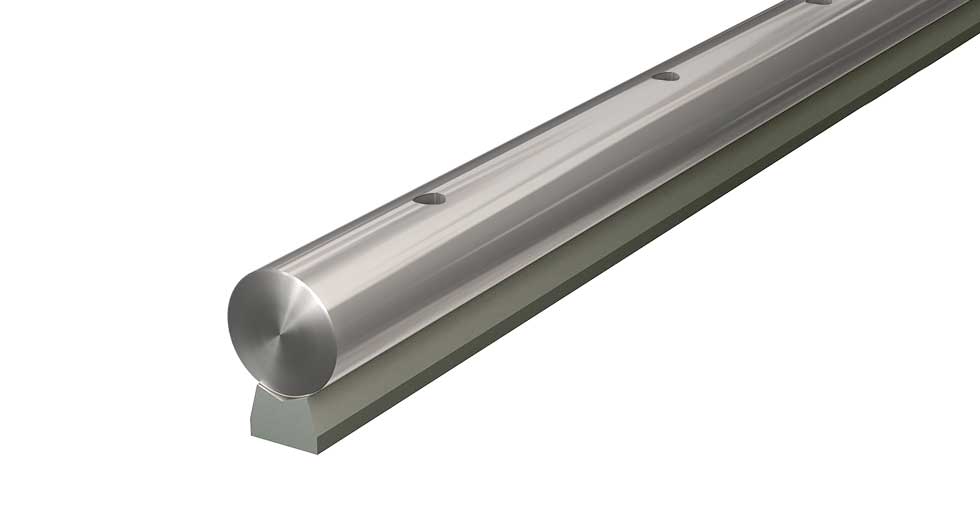

Sold as a two-piece set, this metric sized steel linear shaft and steel support rail feature a shaft that is precision case-hardened and ground, allowing for extended life by enabling rotation for a fresh surface as wear becomes evident. Both sides of the shaft are counterbored, facilitating 180° rotation and rebolting for continued use. The shaft and support rail are not pre-assembled, making it easy to bolt from the top and reduce installation time. Shafts are also available in 440C stainless steel. Note: Drilled-through and counterbored shafts may not be suitable for all linear bearings, and there is no coating on the shaft.

Name Shaft Diameter (mm) Length (mm) Mounting Hole Diameter (mm) Hole Position Y (mm) Shop Link
LSGM16-0300-SL 16.00 300 5.00 75.00 Shop Now
LSGM16-0600-SL 16.00 600 5.00 75.00 Shop Now
LSGM16-0900-SL 16.00 900 5.00 75.00 Shop Now
LSGM20-0300-SL 20.00 300 6.00 75.00 Shop Now
LSGM20-0600-SL 20.00 600 6.00 75.00 Shop Now
LSGM20-0900-SL 20.00 900 6.00 75.00 Shop Now
LSGM25-0400-SL 25.00 400 8.00 100.00 Shop Now
LSGM25-0600-SL 25.00 600 8.00 100.00 Shop Now
LSGM25-1000-SL 25.00 1000 8.00 100.00 Shop Now
LSGM30-0400-SL 30.00 400 10.00 100.00 Shop Now
LSGM30-0600-SL 30.00 600 10.00 100.00 Shop Now
LSGM30-1000-SL 30.00 1000 10.00 100.00 Shop Now
LSGM40-0400-SL 40.00 400 10.00 100.00 Shop Now
LSGM40-0600-SL 40.00 600 10.00 100.00 Shop Now
LSGM40-1000-SL 40.00 1000 10.00 100.00 Shop Now
LSGM50-0400-SL 50.00 400 12.00 100.00 Shop Now
LSGM50-0600-SL 50.00 600 12.00 100.00 Shop Now
LSGM50-1000-SL 50.00 1000 12.00 100.00 Shop Now
