Linear Shafting

NIL-NIPDL (Inch) Steel Linear Shafting

Lee Linear inch steel shafting (NIL/NIPDL) is precision-engineered and case hardened to RC60, making it ideal for use with Simplicity FrelonGOLD® lined bearings and linear ball bearings. Lee Linear ensures superior performance with unmatched uniformity in surface hardness and depth across various sizes. Each shaft is ground and polished to a consistent surface finish, enhancing load distribution, reducing wear, minimizing particulate generation, and lowering drag. Tight dimensional tolerances along the shaft length guarantee reliable and consistent bearing operation.

Solid round shafting available in inch sizes from 3/16” to 4”, and lengths up to 21 feet
Predrilled shafting for use with support rails available from ½” to 2”, and lengths up to 21 feet
Case-hardened steel for optimal durability
Diameter tolerance is Class L
Surface finish 8-12 RMS
Standard cut to customer-specified length tolerances of:

3/16" – 1-1/4" shaft = ± 0.0300"
1-3/8" – 2" shaft = ± 0.060"
2-1/2" – 4" shaft = ± 0.125"

Custom end machining available upon request

Name	Shaft Length (in)	Shaft Diameter (in)	Bearing Order Separate	Price	Shop Link
NIL03-003.000-SL	3.000	0.188	FL03	$2.76	Shop Now
NIL03-006.000-SL	6.000	0.188	FL03	$5.51	Shop Now
NIL03-012.000-SL	12.000	0.188	FL03	$11.02	Shop Now
NIL04-003.000-SL	3.000	0.250	FL04	$2.16	Shop Now
NIL04-006.000-SL	6.000	0.250	FL04	$4.31	Shop Now
NIL04-012.000-SL	12.000	0.250	FL04	$8.62	Shop Now
NIL06-004.000-SL	4.000	0.375	FL04	$3.25	Shop Now
NIL06-006.000-SL	6.000	0.375	FL04	$4.88	Shop Now
NIL06-012.000-SL	12.000	0.375	FL04	$9.76	Shop Now
NIL08-004.000-SL	4.000	0.500	FL08	$3.43	Shop Now
NIL08-006.000-SL	6.000	0.500	FL08	$5.15	Shop Now
NIL08-012.000-SL	12.000	0.500	FL08	$10.30	Shop Now
NIL10-012.000-SL	12.000	0.625	FL10	$12.73	Shop Now
NIL10-024.000-SL	24.000	0.625	FL10	$25.46	Shop Now
NIL10-036.000-SL	36.000	0.625	FL10	$38.19	Shop Now
NIL12-012.000-SL	12.000	0.750	FL12	$16.53	Shop Now
NIL12-024.000-SL	24.000	0.750	FL12	$33.06	Shop Now
NIL12-036.000-SL	36.000	0.750	FL12	$49.59	Shop Now
NIL16-012.000-SL	12.000	1.000	FL16	$22.29	Shop Now
NIL16-024.000-SL	24.000	1.000	FL16	$44.58	Shop Now
NIL16-036.000-SL	36.000	1.000	FL16	$66.87	Shop Now
NIL20-012.000-SL	12.000	1.250	FL20	$28.50	Shop Now
NIL20-024.000-SL	24.000	1.250	FL20	$57.01	Shop Now
NIL20-036.000-SL	36.000	1.250	FL20	$85.51	Shop Now
NIL24-018.000-SL	18.000	1.500	FL24	$65.24	Shop Now
NIL24-024.000-SL	24.000	1.500	FL24	$86.98	Shop Now
NIL24-036.000-SL	36.000	1.500	FL24	$130.47	Shop Now
NIL32-016.000-SL	16.000	2.000	FL32	$113.39	Shop Now
NIL32-024.000-SL	24.000	2.000	FL32	$170.08	Shop Now
NIL32-036.000-SL	36.000	2.000	FL32	$255.12	Shop Now
NIL40-024.000-SL	24.000	2.500	FL40	$222.71	Shop Now
NIL40-036.000-SL	36.000	2.500	FL40	$334.06	Shop Now
NIL40-048.000-SL	48.000	2.500	FL40	$445.41	Shop Now
NIL48-024.000-SL	24.000	3.000	FL48	$452.91	Shop Now
NIL48-036.000-SL	36.000	3.000	FL48	$679.37	Shop Now
NIL48-048.000-SL	48.000	3.000	FL48	$905.83	Shop Now
NIL64-024.000-SL	24.000	4.000	FL64	$678.93	Shop Now
NIL64-036.000-SL	36.000	4.000	FL64	$1018.39	Shop Now
NIL64-048.000-SL	48.000	4.000	FL64	$1357.86	Shop Now

CC-CCPDL (Inch) Ceramic Coated Linear Shafting

The Inch Ceramic Coated Shafting (CC-CCPDL), also known as Feather Shafting, is engineered for use with Simplicity FrelonGOLD® lined bearings and pillow blocks. Designed for contaminated environments, this shafting offers excellent corrosion resistance and is vibration-resistant. The availability of solid round (CC) or pre-drilled (CCPDL) versions provides flexibility in design. The pre-drilled shafting can be paired with aluminum predrilled support rails for fully supported applications handling heavy loads. Custom end machining is also available.

Solid round shafting (CC) available in inch sizes from 3/16” to 2”, up to a maximum length of 12 feet
Pre-drilled shafting (CCPDL) available in sizes from ½” to 2”, up to a maximum length of 12 feet
Pre-drilled mounting holes offer an interchangeable alternative to standard pre-drilled shafting
Aluminum alloy base material provides weight savings over steel
Ceramic-like coating delivers hardness up to RC70 and enhanced corrosion resistance
Optimized for FrelonGOLD® liners
NOT to be used with linear ball bearings (Does not apply to linear guide products – MR, UG, UGA, etc.)
Resistant to weld splatter, paints, and other contaminants
Non-magnetic and vibration-resistant
Standard cut to customer-specified length tolerances of:

3/16" – 1-1/4" shaft = ± 0.0300"
1-3/8" – 2" shaft = ± 0.060"
2-1/2" – 4" shaft = ± 0.125"

Name	Shaft Length (in)	Shaft Diameter (in)	Bearing Order Separate	Price	Shop Link
CC03-003.000-SL	3.000	0.188	FL03	$2.63	Shop Now
CC03-006.000-SL	6.000	0.188	FL03	$5.26	Shop Now
CC03-012.000-SL	12.000	0.188	FL03	$10.52	Shop Now
CC04-003.000-SL	3.000	0.250	FL04	$2.69	Shop Now
CC04-006.000-SL	6.000	0.250	FL04	$5.38	Shop Now
CC04-012.000-SL	12.000	0.250	FL04	$10.76	Shop Now
CC06-004.000-SL	4.000	0.375	FL06	$3.84	Shop Now
CC06-006.000-SL	6.000	0.375	FL06	$5.76	Shop Now
CC06-012.000-SL	12.000	0.375	FL06	$11.53	Shop Now
CC08-004.000-SL	4.000	0.500	FL08	$3.86	Shop Now
CC08-006.000-SL	6.000	0.500	FL08	$5.79	Shop Now
CC08-012.000-SL	12.000	0.500	FL08	$11.59	Shop Now
CC10-012.000-SL	12.000	0.625	FL10	$14.48	Shop Now
CC10-024.000-SL	24.000	0.625	FL10	$28.97	Shop Now
CC10-036.000-SL	36.000	0.625	FL10	$43.45	Shop Now
CC12-012.000-SL	12.000	0.750	FL12	$18.62	Shop Now
CC12-024.000-SL	24.000	0.750	FL12	$37.25	Shop Now
CC12-036.000-SL	36.000	0.750	FL12	$55.87	Shop Now
CC16-012.000-SL	12.000	1.000	FL16	$19.51	Shop Now
CC16-024.000-SL	24.000	1.000	FL16	$39.02	Shop Now
CC16-036.000-SL	36.000	1.000	FL16	$58.54	Shop Now
CC20-012.000-SL	12.000	1.250	FL20	$26.04	Shop Now
CC20-024.000-SL	24.000	1.250	FL20	$52.07	Shop Now
CC20-036.000-SL	36.000	1.250	FL20	$78.11	Shop Now
CC24-018.000-SL	18.000	1.500	FL24	$48.35	Shop Now
CC24-024.000-SL	24.000	1.500	FL24	$64.46	Shop Now
CC24-036.000-SL	36.000	1.500	FL24	$96.69	Shop Now
CC32-016.000-SL	16.000	2.000	FL32	$74.82	Shop Now
CC32-024.000-SL	24.000	2.000	FL32	$112.23	Shop Now
CC32-036.000-SL	36.000	2.000	FL32	$168.35	Shop Now

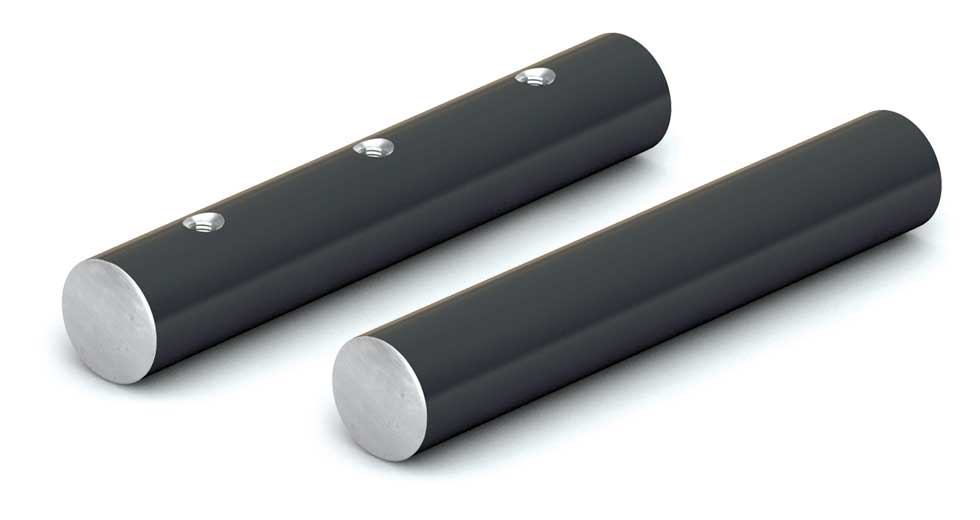

CCM-CCDML (Metric) Ceramic Coated Linear Shafting

The ISO Metric Ceramic Coated Shafting (CCM-CCMDL), also known as Feather Shafting, is designed for use with Simplicity FrelonGOLD® lined bearings and pillow blocks. Ideal for contaminated environments, this shafting offers superior corrosion resistance and is vibration-resistant. The availability of solid round (CCM) or pre-drilled (CCMDL) versions provides flexibility in design. The pre-drilled shafting can be paired with aluminum predrilled support rails for fully supported applications handling heavy loads. Custom end machining is also available.

Solid round shafting (CCM) available in metric sizes from 6 mm to 50 mm, up to a maximum length of 3658 mm
Pre-drilled shafting (CCMDL) available in sizes from 8 mm to 50 mm, up to a maximum length of 3658 mm
Pre-drilled mounting holes offer an interchangeable alternative to standard predrilled shafting
Aluminum alloy base material provides weight savings over steel
Ceramic-like coating delivers hardness up to RC70 and enhanced corrosion resistance
Optimized for FrelonGOLD® liners
NOT to be used with linear ball bearings (Does not apply to linear guide products – MR, UG, UGA, etc.)
Resistant to weld splatter, paints, and other contaminants
Non-magnetic and vibration-resistant
Standard cut to customer-specified length tolerances of:

4 mm – 30 mm shaft = ± 0.8 mm
40 mm – 50 mm shaft = ± 1.6 mm
60 mm – 80 mm shaft = ± 3.2 mm

Name	Shaft Length (mm)	Shaft Diameter (mm)	Bearing Order Separate	Price	Shop Link
CCM06-0150-SL	150.00	6.00		$5.19	Shop Now
CCM06-0300-SL	300.00	6.00		$10.38	Shop Now
CCM06-0600-SL	600.00	6.00		$20.76	Shop Now
CCM08-0150-SL	150.00	8.00	FM08	$5.44	Shop Now
CCM08-0300-SL	300.00	8.00	FM08	$10.89	Shop Now
CCM08-0600-SL	600.00	8.00	FM08	$21.77	Shop Now
CCM10-0150-SL	150.00	10.00	FM10	$5.78	Shop Now
CCM10-0300-SL	300.00	10.00	FM10	$11.56	Shop Now
CCM10-0600-SL	600.00	10.00	FM10	$23.13	Shop Now
CCM12-0150-SL	150.00	12.00	FM12	$5.69	Shop Now
CCM12-0300-SL	300.00	12.00	FM12	$11.39	Shop Now
CCM12-0600-SL	600.00	12.00	FM12	$22.77	Shop Now
CCM16-0150-SL	150.00	16.00	FM16	$7.14	Shop Now
CCM16-0300-SL	300.00	16.00	FM16	$14.28	Shop Now
CCM16-0600-SL	600.00	16.00	FM16	$28.56	Shop Now
CCM20-0150-SL	150.00	20.00	FM20	$9.34	Shop Now
CCM20-0300-SL	300.00	20.00	FM20	$18.67	Shop Now
CCM20-0600-SL	600.00	20.00	FM20	$37.35	Shop Now
CCM25-0300-SL	300.00	25.00	FM25	$19.17	Shop Now
CCM25-0600-SL	600.00	25.00	FM25	$38.35	Shop Now
CCM25-1000-SL	1000.00	25.00	FM25	$63.91	Shop Now
CCM30-0300-SL	300.00	30.00	FM30	$25.60	Shop Now
CCM30-0600-SL	600.00	30.00	FM30	$51.21	Shop Now
CCM30-1000-SL	1000.00	30.00	FM30	$85.35	Shop Now
CCM40-0300-SL	300.00	40.00	FM40	$54.25	Shop Now
CCM40-0600-SL	600.00	40.00	FM40	$108.50	Shop Now
CCM40-1000-SL	1000.00	40.00	FM40	$180.83	Shop Now
CCM50-0300-SL	300.00	50.00	FM50	$68.02	Shop Now
CCM50-0600-SL	600.00	50.00	FM50	$136.05	Shop Now
CCM50-1000-SL	1000.00	50.00	FM50	$226.74	Shop Now

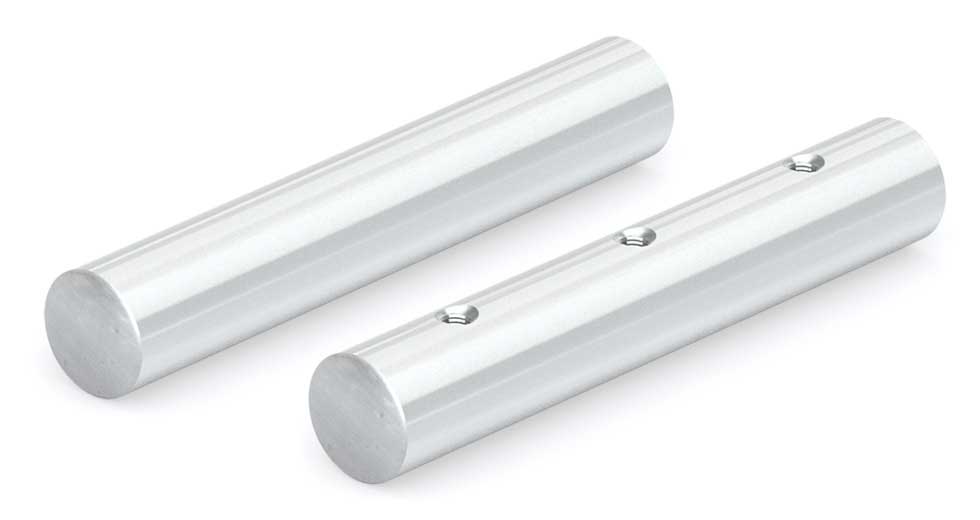

NIM-NIPDM (Metric) Steel Linear Shafting

Lee Linear ISO metric steel shafting (NIM/NIPDM) is precision-engineered and case hardened to RC60, making it ideal for use with Simplicity FrelonGOLD® lined bearings and linear ball bearings. Lee Linear ensures superior performance with the most uniform surface hardness and depth across various sizes. Each shaft is ground and polished to a consistent surface finish, enhancing load distribution, reducing wear, minimizing particulate generation, and lowering drag. Tight dimensional tolerances along the shaft length guarantee reliable and consistent bearing operation.

Solid round shafting available in metric sizes from 4 mm to 80 mm, and lengths up to 5 meters
Predrilled shafting for use with support rails available from 12 mm to 30 mm, and lengths up to 5 meters
Case-hardened steel for optimal durability
Surface finish 8-12 RMS
Standard cut to customer-specified length tolerances of:

4 mm – 30 mm shaft = ± 0.8 mm
40 mm – 50 mm shaft = ± 1.6 mm
60 mm – 80 mm shaft = ± 3.2 mm

Custom end machining available upon request

Name	Shaft Length (mm)	Shaft Diameter (mm)	Bearing Order Separate	Price	Shop Link
NIM04-0150-SL	150.00	4.00		$5.42	Shop Now
NIM04-0300-SL	300.00	4.00		$10.85	Shop Now
NIM04-0600-SL	600.00	4.00		$21.69	Shop Now
NIM06-0150-SL	150.00	6.00		$5.05	Shop Now
NIM06-0300-SL	300.00	6.00		$10.10	Shop Now
NIM06-0600-SL	600.00	6.00		$20.21	Shop Now
NIM08-0150-SL	150.00	8.00	FM08	$4.88	Shop Now
NIM08-0300-SL	300.00	8.00	FM08	$9.76	Shop Now
NIM08-0600-SL	600.00	8.00	FM08	$19.53	Shop Now
NIM10-0150-SL	150.00	10.00	FM10	$5.05	Shop Now
NIM10-0300-SL	300.00	10.00	FM10	$10.10	Shop Now
NIM10-0600-SL	600.00	10.00	FM10	$20.21	Shop Now
NIM12-0150-SL	150.00	12.00	FM12	$5.05	Shop Now
NIM12-0300-SL	300.00	12.00	FM12	$10.10	Shop Now
NIM12-0600-SL	600.00	12.00	FM12	$20.21	Shop Now
NIM16-0150-SL	150.00	16.00	FM16	$6.29	Shop Now
NIM16-0300-SL	300.00	16.00	FM16	$12.58	Shop Now
NIM16-0600-SL	600.00	16.00	FM16	$25.15	Shop Now
NIM20-0150-SL	150.00	20.00	FM20	$9.10	Shop Now
NIM20-0300-SL	300.00	20.00	FM20	$18.20	Shop Now
NIM20-0600-SL	600.00	20.00	FM20	$36.40	Shop Now
NIM25-0300-SL	300.00	25.00	FM25	$21.69	Shop Now
NIM25-0600-SL	600.00	25.00	FM25	$43.38	Shop Now
NIM25-1000-SL	1000.00	25.00	FM25	$72.31	Shop Now
NIM30-0300-SL	300.00	30.00	FM30	$28.03	Shop Now
NIM30-0600-SL	600.00	30.00	FM30	$56.05	Shop Now
NIM30-1000-SL	1000.00	30.00	FM30	$93.42	Shop Now
NIM40-0300-SL	300.00	40.00	FM40	$55.13	Shop Now
NIM40-0600-SL	600.00	40.00	FM40	$110.25	Shop Now
NIM40-1000-SL	1000.00	40.00	FM40	$183.75	Shop Now
NIM50-0300-SL	300.00	50.00	FM50	$83.83	Shop Now
NIM50-0600-SL	600.00	50.00	FM50	$167.66	Shop Now
NIM50-1000-SL	1000.00	50.00	FM50	$279.44	Shop Now

NILSS (Inch) Stainless Steel Linear Shafting

Lee inch stainless steel shafting (NILSS/NIPDLSS) is case hardened to RC 50 Plus, making it ideal for use with Simplicity FrelonGOLD® lined bearings and linear ball bearings. Lee Linear ensures superior performance with the most uniform surface hardness and depth across various sizes. Each 440 stainless steel shaft is ground and polished to a consistent surface finish, enhancing load distribution, reducing wear, minimizing particulate generation, and lowering drag. Tight dimensional tolerances along the shaft length guarantee reliable and consistent bearing operation.

Solid round shafting available in inch sizes from 3/16” to 3”, and lengths up to 17 feet
Pre-drilled shafting for use with support rails available from ½” to 2”, and lengths up to 17 feet
Case-hardened 440 stainless steel for enhanced corrosion resistance
Diameter tolerance is Class L
Surface finish 8-12 RMS
Standard cut to customer-specified length tolerances of:

3/16" – 1-1/4" shaft = ± 0.0300"
1-3/8" – 2" shaft = ± 0.060"
2-1/2" – 4" shaft = ± 0.125"

Custom end machining available upon request

Name	Shaft Length (in)	Shaft Diameter (in)	Bearing Order Separate	Price	Shop Link
NIL03SS-003.000-SL	3.000	0.188	FL03	$6.92	Shop Now
NIL03SS-006.000-SL	6.000	0.188	FL03	$13.84	Shop Now
NIL03SS-012.000-SL	12.000	0.188	FL03	$27.69	Shop Now
NIL06SS-004.000-SL	4.000	0.375	FL06	$8.64	Shop Now
NIL06SS-006.000-SL	6.000	0.375	FL06	$12.96	Shop Now
NIL06SS-012.000-SL	12.000	0.375	FL06	$25.92	Shop Now
NIL08SS-006.000-SL	6.000	0.500	FL08	$15.85	Shop Now
NIL08SS-012.000-SL	12.000	0.500	FL08	$31.70	Shop Now
NIL08SS-024.000-SL	24.000	0.500	FL08	$63.40	Shop Now
NIL10SS-012.000-SL	12.000	0.625	FL10	$41.15	Shop Now
NIL10SS-016.000-SL	16.000	0.625	FL10	$54.87	Shop Now
NIL10SS-036.000-SL	36.000	0.625	FL10	$123.45	Shop Now
NIL12SS-006.000-SL	6.000	0.750	FL12	$22.64	Shop Now
NIL12SS-012.000-SL	12.000	0.750	FL12	$45.29	Shop Now
NIL12SS-024.000-SL	24.000	0.750	FL12	$90.57	Shop Now
NIL16SS-012.000-SL	12.000	1.000	FL16	$63.80	Shop Now
NIL16SS-024.000-SL	24.000	1.000	FL16	$127.59	Shop Now
NIL16SS-036.000-SL	36.000	1.000	FL16	$191.39	Shop Now
NIL20SS-012.000-SL	12.000	1.250	FL20	$70.49	Shop Now
NIL20SS-024.000-SL	24.000	1.250	FL20	$140.98	Shop Now
NIL20SS-036.000-SL	36.000	1.250	FL20	$211.46	Shop Now
NIL24SS-018.000-SL	18.000	1.500	FL24	$174.84	Shop Now
NIL24SS-036.000-SL	36.000	1.500	FL24	$349.69	Shop Now
NIL24SS-048.000-SL	48.000	1.500	FL24	$466.25	Shop Now
NIL32SS-024.000-SL	24.000	2.000	FL32	$446.95	Shop Now
NIL32SS-048.000-SL	48.000	2.000	FL32	$893.90	Shop Now
NIL32SS-060.000-SL	60.000	2.000	FL32	$1117.38	Shop Now

NIMSS (Metric) Stainless Steel Linear Shafting

Lee Linear ISO metric stainless steel shafting (NIMSS) is case hardened to approximately RC 50 Plus, making it ideal for use with Simplicity FrelonGOLD® lined bearings and linear ball bearings. Lee Linear ensures superior performance with the most uniform surface hardness and depth across various sizes. Each 440 stainless steel shaft is ground and polished to a consistent surface finish, enhancing load distribution, reducing wear, minimizing particulate generation, and lowering drag. Tight dimensional tolerances along the shaft length guarantee reliable and consistent bearing operation.

Solid round metric stainless steel shafting available in metric sizes from 4 mm to 30 mm, and lengths up to 4.5 meters
440 stainless steel material provides corrosion resistance
Diameter tolerance is Class M
Surface finish 8-12 RMS
Standard cut to length tolerance of ± 0.8 mm, customer-specified:

4 mm – 30 mm shaft = ± 0.8 mm
40 mm – 50 mm shaft = ± 1.6 mm
60 mm – 80 mm shaft = ± 3.2 mm

Custom end machining available upon request

Name	Shaft Length (mm)	Shaft Diameter (mm)	Bearing Order Separate	Price	Shop Link
NIM04SS-0150-SL	150.00	4.00		$16.58	Shop Now
NIM04SS-0300-SL	300.00	4.00		$33.16	Shop Now
NIM04SS-0600-SL	600.00	4.00		$66.31	Shop Now
NIM06SS-0150-SL	150.00	6.00		$12.27	Shop Now
NIM06SS-0300-SL	300.00	6.00		$24.53	Shop Now
NIM06SS-0600-SL	600.00	6.00		$49.07	Shop Now
NIM08SS-0150-SL	150.00	8.00	FM08	$16.76	Shop Now
NIM08SS-0300-SL	300.00	8.00	FM08	$33.53	Shop Now
NIM08SS-0600-SL	600.00	8.00	FM08	$67.05	Shop Now
NIM10SS-0150-SL	150.00	10.00	FM10	$16.95	Shop Now
NIM10SS-0300-SL	300.00	10.00	FM10	$33.90	Shop Now
NIM10SS-0600-SL	600.00	10.00	FM10	$67.79	Shop Now
NIM12SS-0150-SL	150.00	12.00	FM12	$16.81	Shop Now
NIM12SS-0300-SL	300.00	12.00	FM12	$33.62	Shop Now
NIM12SS-0600-SL	600.00	12.00	FM12	$67.24	Shop Now
NIM16SS-0150-SL	150.00	16.00	FM16	$22.19	Shop Now
NIM16SS-0300-SL	300.00	16.00	FM16	$44.37	Shop Now
NIM16SS-0600-SL	600.00	16.00	FM16	$88.74	Shop Now
NIM20SS-0150-SL	150.00	20.00	FM20	$24.80	Shop Now
NIM20SS-0300-SL	300.00	20.00	FM20	$49.59	Shop Now
NIM20SS-0600-SL	600.00	20.00	FM20	$99.19	Shop Now
NIM25SS-0300-SL	300.00	25.00	FM25	$69.62	Shop Now
NIM25SS-0600-SL	600.00	25.00	FM25	$139.24	Shop Now
NIM25SS-1000-SL	1000.00	25.00	FM25	$232.06	Shop Now
NIM30SS-0300-SL	300.00	30.00	FM30	$107.38	Shop Now
NIM30SS-0600-SL	600.00	30.00	FM30	$214.76	Shop Now
NIM30SS-1000-SL	1000.00	30.00	FM30	$357.93	Shop Now
NIM40SS-0300-SL	300.00	40.00	FM40	$125.79	Shop Now
NIM40SS-0600-SL	600.00	40.00	FM40	$251.59	Shop Now
NIM40SS-1000-SL	1000.00	40.00	FM40	$419.31	Shop Now
NIM50SS-0300-SL	300.00	50.00	FM50	$277.30	Shop Now
NIM50SS-0600-SL	600.00	50.00	FM50	$554.59	Shop Now
NIM50SS-1000-SL	1000.00	50.00	FM50	$924.32	Shop Now

Most searched for today
