Simplicity Linear Plain Bearings

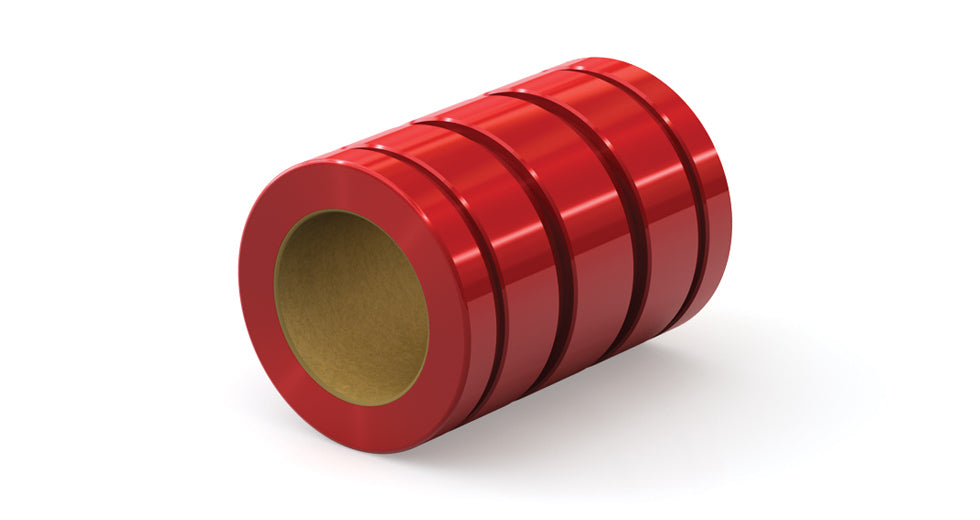

FL (Inch) Closed Linear Plain Bearing

FL (Inch) Closed Linear Plain Bearing

The FL Closed Linear Plain Bearing features a red anodized aluminum shell, making it easy to identify as part of the inch series. This bearing is available in industry-standard sizes and is interchangeable with linear ball bearings and some bronze bushings. The closed design is ideal for handling loads in all directions and offers various mounting options.

  • ID Sizes: Available from 3/16” to 4”
  • Static Load Capacities: Up to 100,000 lb (444 kN)
  • Shell Material: Standard is aluminum; stainless steel shells are available
  • Bearing Liner: FrelonGOLD® is standard; Frelon® J & Frelon® W are optional
  • Self-Lubricating: Provides oil-free operation
  • Seal Options: Nitrile rubber, urethane, and viton seals available from ½” ID and up
  • Mounting Options: O-ring and retaining ring grooves for multiple mounting options
  • External Lubrication: Optional feature for added lubrication
  • Temperature Range: -400°F to 400°F (-240°C to 204°C)
  • Vibration Damping: Ensures smooth and quiet operation
  • Custom Modifications: Available upon request; contact an Application Engineer for details
Name Nominal ID (in) Nominal OD (in) Shaft Diameter (in) Static Load (lbs) Shop Link
FL03 0.188 0.375 0.188 220 Shop Now
FL04 0.250 0.500 0.250 600 Shop Now
FL06 0.375 0.625 0.375 1020 Shop Now
FL08 0.500 0.875 0.500 1950 Shop Now
FL10 0.625 1.125 0.625 2940 Shop Now
FL12 0.750 1.250 0.750 3810 Shop Now
FL16 1.000 1.563 1.000 7050 Shop Now
FL20 1.250 2.000 1.250 10830 Shop Now
FL24 1.500 2.375 1.500 14100 Shop Now
FL32 2.000 3.000 2.000 25050 Shop Now
FL40 2.500 3.750 2.500 39000 Shop Now
FL48 3.000 4.500 3.000 56400 Shop Now
FL64 4.000 6.000 4.000 100500 Shop Now

FLA (Inch) Closed Self-Aligning Linear Plain Bearing

FLA (Inch) Closed Self-Aligning Linear Plain Bearing

The FLA Closed Self-Aligning Linear Plain Bearing features a red anodized aluminum shell, identifying it as part of the inch series. This bearing is available in industry-standard sizes and is interchangeable with linear ball bearings and some bronze bushings. The closed design is ideal for handling loads in all directions and offers multiple mounting options.

  • Self-Aligning Capability: Features a crown on the O.D. that allows the bearing to re-align itself in binding situations
  • Retrofit Design: Specifically designed to easily retrofit straight bore housings
  • Misalignment Capability: Allows for 1/2° of misalignment from centerline (1° overall)
Name Nominal ID (in) Nominal OD (in) Shaft Diameter (in) Static Load (lbs) Shop Link
FLA03 0.188 0.373 0.188 220 Shop Now
FLA04 0.251 0.498 0.250 600 Shop Now
FLA06 0.376 0.623 0.375 1020 Shop Now
FLA08 0.501 0.873 0.500 1950 Shop Now
FLA10 1.174 0.628 0.625 2940 Shop Now
FLA12 0.751 1.248 0.750 3810 Shop Now
FLA16 1.001 1.560 1.000 7050 Shop Now
FLA20 1.251 1.998 0.250 10830 Shop Now
FLA24 1.501 2.373 0.500 14100 Shop Now
FLA32 2.001 2.998 2.000 25050 Shop Now
FLA40 2.500 3.748 2.500 39000 Shop Now
FLA48 3.001 4.498 3.000 56400 Shop Now
FLA64 4.001 5.998 4.000 100500 Shop Now

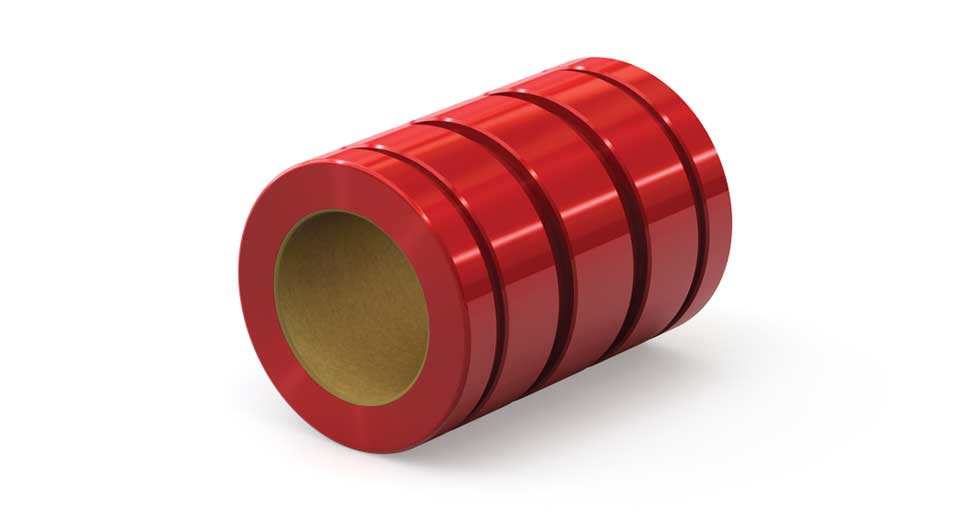

FLAC (Inch) Closed Self-Aligning Compensated Linear Plain Bearing

FLAC (Inch) Closed Self-Aligning Compensated Linear Plain Bearing

The FLAC Closed Self-Aligning Compensated Linear Plain Bearing features a red anodized aluminum shell, identifying it as part of the inch series. Available in industry-standard sizes, it is interchangeable with linear ball bearings and some bronze bushings. The closed design is ideal for handling loads in all directions and offers multiple mounting options. This compensated bearing performs similarly to a standard ball bearing.

  • Additional Clearance: Built into the I.D., with all other dimensions matching precision bearings
  • Ideal for Parallel Shaft Applications: Provides optimal performance in parallel shaft setups
  • Self-Aligning Capability: Features a crown on the O.D. that allows the bearing to re-align itself in binding situations
  • Retrofit Design: Specifically designed to easily retrofit straight bore housings
  • Misalignment Capability: Allows for 1/2° of misalignment from centerline (1° overall)
Name Nominal ID (in) Nominal OD (in) Shaft Diameter (in) Static Load (lbs) Shop Link
FLAC03 0.190 0.374 0.190 220 Shop Now
FLAC04 0.252 0.499 0.252 600 Shop Now
FLAC06 0.377 0.624 0.377 1020 Shop Now
FLAC08 0.502 0.874 0.502 1950 Shop Now
FLAC10 0.627 1.124 0.627 2940 Shop Now
FLAC12 0.753 1.249 0.753 3810 Shop Now
FLAC16 1.003 1.561 1.003 7050 Shop Now
FLAC20 1.254 1.998 1.254 10830 Shop Now
FLAC24 1.504 2.373 1.504 14100 Shop Now
FLAC32 2.005 2.998 2.005 25050 Shop Now
FLAC40 2.505 3.748 2.505 39000 Shop Now
FLAC48 3.006 4.498 3.006 56400 Shop Now
FLAC64 4.007 6.000 4.007 100500 Shop Now

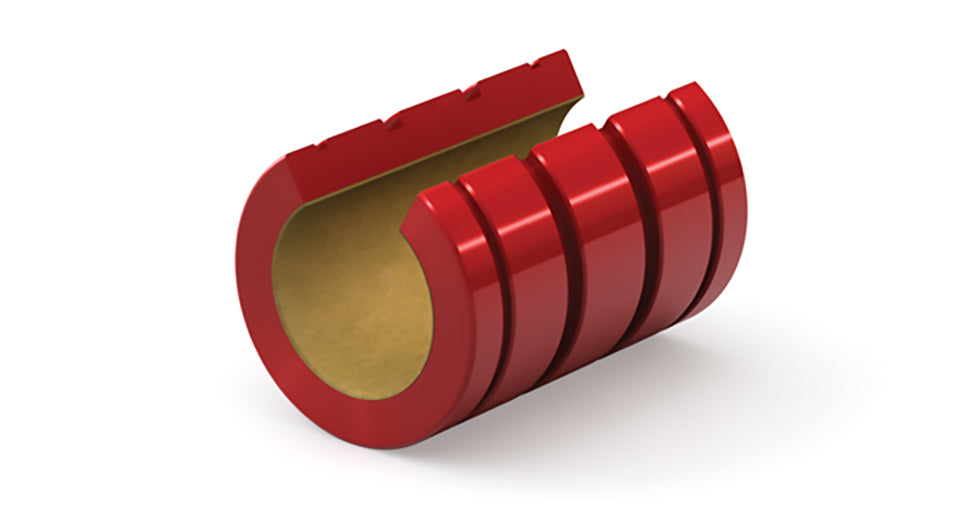

FLN (Inch) Open Linear Plain Bearing

FLN (Inch) Open Linear Plain Bearing

The FLN Open Linear Plain Bearing is the open version of the standard inch closed bearing. The open design allows for use on fully supported shafting, providing greater system rigidity. This bearing maintains all the features and benefits of the closed version, making it a versatile option for various applications.

  • ID Sizes: Available from ¼” to 4”
  • Static Load Capacities: Up to 100,000 lb (444 kN)
  • Shell Material: Standard is aluminum; stainless steel shells are available
  • Bearing Liner: FrelonGOLD® is standard; Frelon® J & Frelon® W are optional
  • Self-Lubricating: Provides oil-free operation
  • Seal Options: Nitrile rubber, urethane, and viton seals available from ½” ID and up
  • Mounting Options: O-ring and retaining ring grooves provide multiple mounting options
  • External Lubrication: Optional feature for added lubrication
  • Temperature Range: -400°F to 400°F (-240°C to 204°C)
  • Vibration Dampening: Ensures smooth and quiet operation
  • Custom Modifications: Available upon request; contact an Application Engineer for details
Name Nominal ID (in) Nominal OD (in) Shaft Diameter (in) Static Load (lbs) Shop Link
FLN06 0.376 0.625 0.375 1020 Shop Now
FLN08 0.501 0.875 0.500 1950 Shop Now
FLN10 0.626 1.125 0.625 2940 Shop Now
FLN12 0.751 1.250 0.750 3810 Shop Now
FLN16 1.001 1.562 1.000 7050 Shop Now
FLN20 1.251 1.999 0.250 5415 Shop Now
FLN24 1.501 2.373 1.500 14100 Shop Now
FLN32 2.001 2.999 2.000 25050 Shop Now
FLN40 2.500 3.749 0.500 39000 Shop Now
FLN48 3.001 4.499 3.000 56400 Shop Now
FLN64 4.002 5.999 4.000 100500 Shop Now

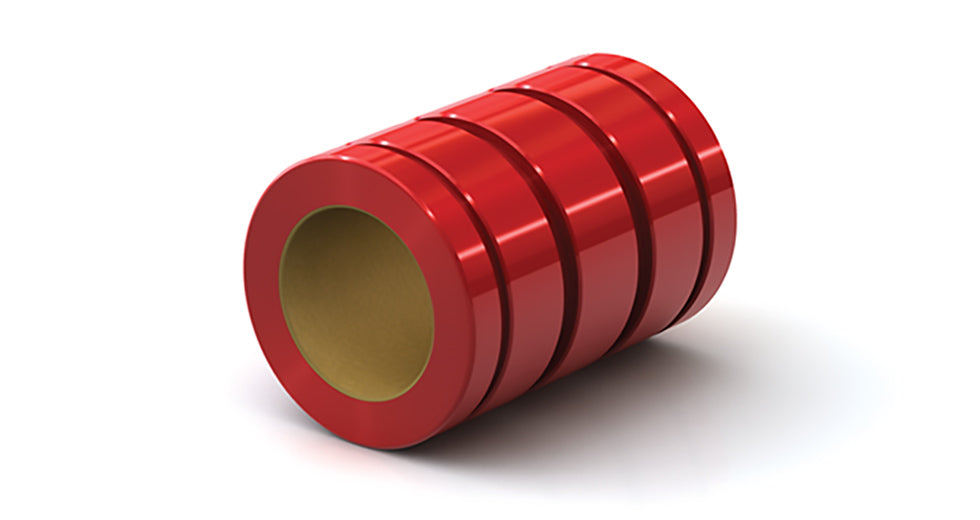

FLC (Inch) Closed Compensated Linear Plain Bearing

FLC (Inch) Closed Compensated Linear Plain Bearing

The FLC Closed Compensated Linear Plain Bearing is designed with additional clearance built into the I.D., while maintaining the same external dimensions as precision bearings. This compensated version performs similarly to a standard ball bearing, making it ideal for applications involving parallel shafts.

  • Running Clearance: Features additional clearance built into the I.D. for smoother operation
  • Precision Dimensions: All external dimensions match those of precision bearings
  • Parallel Shaft Applications: Ideally suited for use in parallel shaft setups
Name Nominal ID (in) Nominal OD (in) Shaft Diameter (in) Static Load (lbs) Shop Link
FLC03 0.188 0.375 0.188 220 Shop Now
FLC04 0.250 0.500 0.250 600 Shop Now
FLC06 0.375 0.625 0.375 1020 Shop Now
FLC08 0.500 0.875 0.500 1950 Shop Now
FLC10 0.625 1.125 0.625 2940 Shop Now
FLC12 0.750 1.250 0.750 3810 Shop Now
FLC16 1.000 1.563 1.000 7050 Shop Now
FLC20 1.250 2.000 0.250 10830 Shop Now
FLC24 1.500 2.375 1.500 14100 Shop Now
FLC32 2.000 3.000 2.000 25050 Shop Now
FLC40 2.500 3.750 2.500 39000 Shop Now
FLC48 3.000 4.500 3.000 56400 Shop Now
FLC64 4.000 6.000 4.000 100500 Shop Now

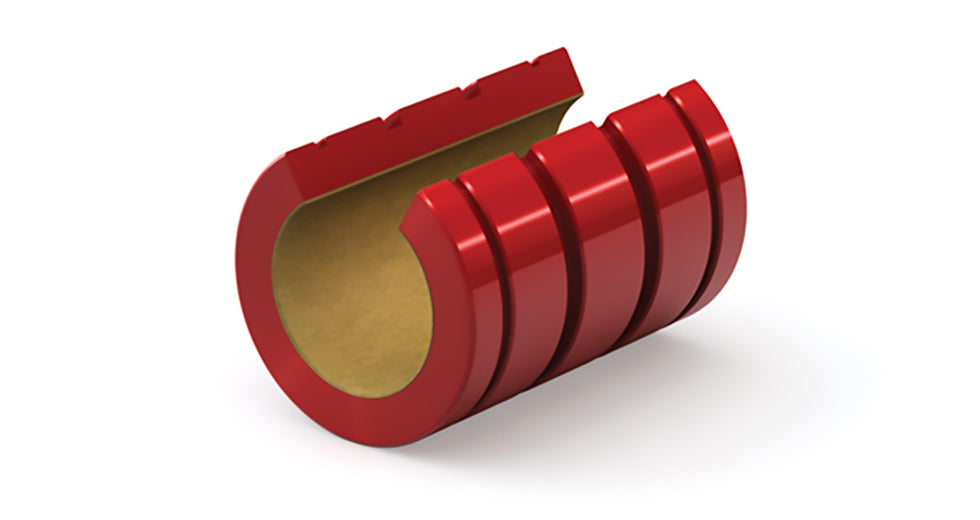

FLCN (Inch) Open Compensated Linear Plain Bearing

FLCN (Inch) Open Compensated Linear Plain Bearing

The FLCN Open Compensated Linear Plain Bearing is designed with additional clearance built into the I.D., while maintaining the same external dimensions as precision bearings. This compensated version performs similarly to a standard ball bearing, making it an excellent choice for applications involving parallel shafts.

  • Compensated Performance: Performs like a standard ball bearing with additional clearance in the I.D.
  • Precision Dimensions: External dimensions match those of precision bearings
  • Parallel Shaft Applications: Ideally suited for use in parallel shaft setups
Name Nominal ID (in) Nominal OD (in) Shaft Diameter (in) Static Load (lbs) Shop Link
FLCN06 0.378 0.625 0.375 1020 Shop Now
FLCN08 0.503 0.875 0.500 1950 Shop Now
FLCN10 0.628 1.125 0.625 1470 Shop Now
FLCN12 0.754 1.249 0.750 3810 Shop Now
FLCN16 1.004 1.562 1.000 7050 Shop Now
FLCN20 1.255 1.999 1.250 10830 Shop Now
FLCN24 1.505 2.374 1.500 14100 Shop Now
FLCN32 2.006 2.999 2.000 25050 Shop Now
FLCN40 2.506 3.749 2.500 39000 Shop Now
FLCN48 3.007 4.499 3.000 56400 Shop Now
FLCN64 4.008 5.999 4.000 100500 Shop Now

FM (Metric) Closed Linear Plain Bearing

FM (Metric) Closed Linear Plain Bearing

The FM Closed Linear Plain Bearing features a blue anodized aluminum shell, identifying it as part of the ISO metric series. This bearing is available in off-the-shelf industry standard sizes and is interchangeable with linear ball bearings and some bronze bushings, conforming to ISO tolerance standards.

  • ID Sizes: Available from 5 mm to 80 mm
  • Static Load Capacities: Up to 270 kN (61,000 lbs)
  • Shell Material: Standard is aluminum; stainless steel shells are available
  • Bearing Liner: FrelonGOLD® is standard; Frelon® J & Frelon® W are optional
  • Self-Lubricating: Provides oil-free operation
  • Optional Seals: Urethane seals available from 20 mm ID and up
  • External Lubrication: Optional feature for added lubrication
  • Temperature Range: -240°C to 204°C (-400°F to 400°F)
  • Vibration Damping: Ensures smooth and quiet operation
  • Custom Modifications: Available upon request; contact an Application Engineer for details
Name Nominal ID (mm) Nominal OD (mm) Shaft Diameter (mm) Static Load (N) Shop Link
FM05 5.00 12.00 5.00 2276.00 Shop Now
FM08 8.00 16.00 8.00 4120.00 Shop Now
FM10 10.00 19.00 10.00 5984.00 Shop Now
FM12 12.00 22.00 12.00 7907.00 Shop Now
FM16 16.00 26.00 16.00 11870.00 Shop Now
FM20 20.00 32.00 20.00 18541.00 Shop Now
FM25 25.00 40.00 25.00 29881.00 Shop Now
FM30 30.04 46.99 30.00 42026.00 Shop Now
FM40 40.00 62.00 40.00 65923.00 Shop Now
FM50 50.00 75.00 50.00 103005.00 Shop Now
FM60 60.00 90.00 60.00 154508.00 Shop Now
FM80 80.00 120.00 80.00 271933.00 Shop Now

FMA (Metric) Closed Self-Aligning Linear Plain Bearing

FMA (Metric) Closed Self-Aligning Linear Plain Bearing

The FMA Closed Self-Aligning Linear Plain Bearing is part of the metric series, easily identified by its blue anodized aluminum shell. Available in industry-standard sizes, it is interchangeable with linear ball bearings and some bronze bushings. This self-aligning bearing is ideal for handling loads in all directions and offers various mounting options.

  • Self-Aligning Capability: Features a crown on the O.D. that allows the bearing to re-align itself in binding situations
  • Retrofit Design: Specifically designed to easily retrofit straight bore housings
  • Misalignment Capability: Allows for 1/2° of misalignment from centerline (1° overall)
Name Nominal ID (mm) Nominal OD (mm) Shaft Diameter (mm) Static Load (N) Shop Link
FMA05 5.07 11.95 5.00 2276.00 Shop Now
FMA08 8.07 15.95 8.00 4120.00 Shop Now
FMA10 10.07 18.95 10.00 5984.00 Shop Now
FMA12 12.08 21.95 12.00 7907.00 Shop Now
FMA16 16.08 25.95 16.00 11870.00 Shop Now
FMA20 20.11 31.95 20.00 18541.00 Shop Now
FMA25 25.11 39.95 25.00 29881.00 Shop Now
FMA30 30.11 46.95 30.00 42026.00 Shop Now
FMA40 40.15 61.95 40.00 65923.00 Shop Now
FMA50 50.15 74.95 50.00 103005.00 Shop Now
FMA60 60.21 119.94 60.00 154508.00 Shop Now
FMA80 80.21 119.94 80.00 271933.00 Shop Now

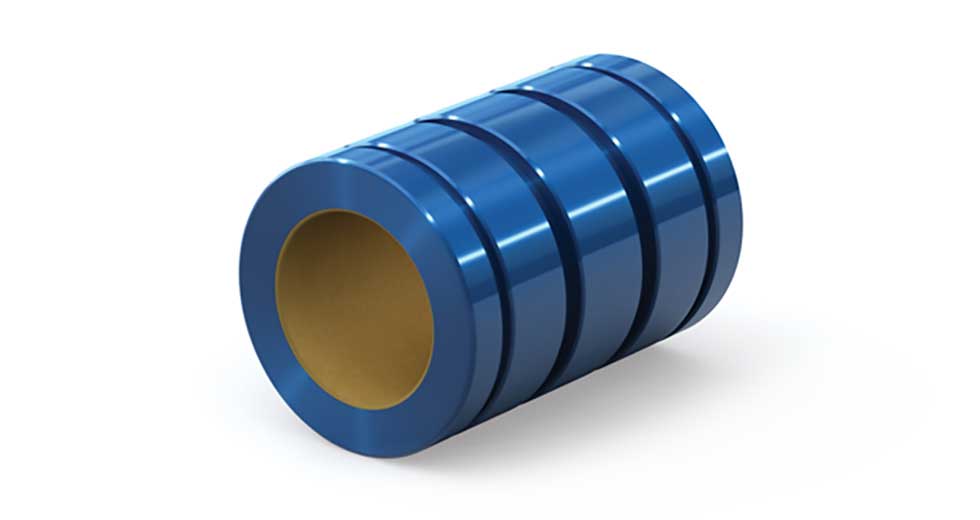

FMAC (Metric) Closed Self-Aligning Compensated Linear Plain Bearing

FMAC (Metric) Closed Self-Aligning Compensated Linear Plain Bearing

The FMAC Closed Self-Aligning Compensated Linear Plain Bearing is part of the metric series, identified by its blue anodized aluminum shell. This bearing is available in industry-standard sizes and is interchangeable with linear ball bearings and some bronze bushings. The closed, self-aligning design is compensated for greater flexibility, making it suitable for use along uneven shafts.

  • Self-Aligning Capability: Features a crown on the O.D. that allows the bearing to re-align itself in binding situations
  • Retrofit Design: Specifically designed to easily retrofit straight bore housings
  • Misalignment Capability: Allows for 1/2° of misalignment from centerline (1° overall)
Name Nominal ID (mm) Nominal OD (mm) Shaft Diameter (mm) Static Load (N) Shop Link
FMAC05 5.07 11.95 5.00 2276.00 Shop Now
FMAC08 8.07 15.95 8.00 4120.00 Shop Now
FMAC10 10.07 18.95 10.00 5984.00 Shop Now
FMAC12 12.08 21.95 12.00 7907.00 Shop Now
FMAC16 16.08 25.95 16.00 11870.00 Shop Now
FMAC20 20.11 31.95 20.00 18541.00 Shop Now
FMAC25 25.11 39.95 25.00 29881.00 Shop Now
FMAC30 30.11 46.95 30.00 42026.00 Shop Now
FMAC40 40.15 61.95 40.00 65923.00 Shop Now
FMAC50 50.15 74.95 50.00 103005.00 Shop Now
FMAC60 60.21 119.94 60.00 154508.00 Shop Now
FMAC80 80.21 119.94 80.00 271933.00 Shop Now

FMC (Metric) Closed Compensated Linear Plain Bearing

FMC (Metric) Closed Compensated Linear Plain Bearing

The FMC Closed Compensated Linear Plain Bearing is part of the metric series, easily identified by its blue anodized aluminum shell. Available in industry-standard sizes, this bearing is interchangeable with linear ball bearings and some bronze bushings. The closed, compensated design is ideal for handling loads in all directions and offers multiple mounting options.

  • Additional Clearance: Built into the I.D., while maintaining the same external dimensions as precision bearings
  • Parallel Shaft Applications: Ideally suited for use in parallel shaft setups
Name Nominal ID (mm) Nominal OD (mm) Shaft Diameter (mm) Static Load (N) Shop Link
FMC05 5.00 12.00 5.00 2276.00 Shop Now
FMC08 8.00 16.00 8.00 4120.00 Shop Now
FMC10 10.00 19.00 10.00 5984.00 Shop Now
FMC12 12.00 22.00 12.00 7907.00 Shop Now
FMC16 16.00 26.00 16.00 11870.00 Shop Now
FMC20 20.00 32.00 20.00 18541.00 Shop Now
FMC25 25.00 40.00 25.00 29881.00 Shop Now
FMC30 30.00 47.00 30.00 42026.00 Shop Now
FMC40 40.00 62.00 40.00 65923.00 Shop Now
FMC50 50.00 75.00 50.00 103005.00 Shop Now
FMC60 60.00 90.00 60.00 154508.00 Shop Now
FMC80 80.00 120.00 80.00 271933.00 Shop Now

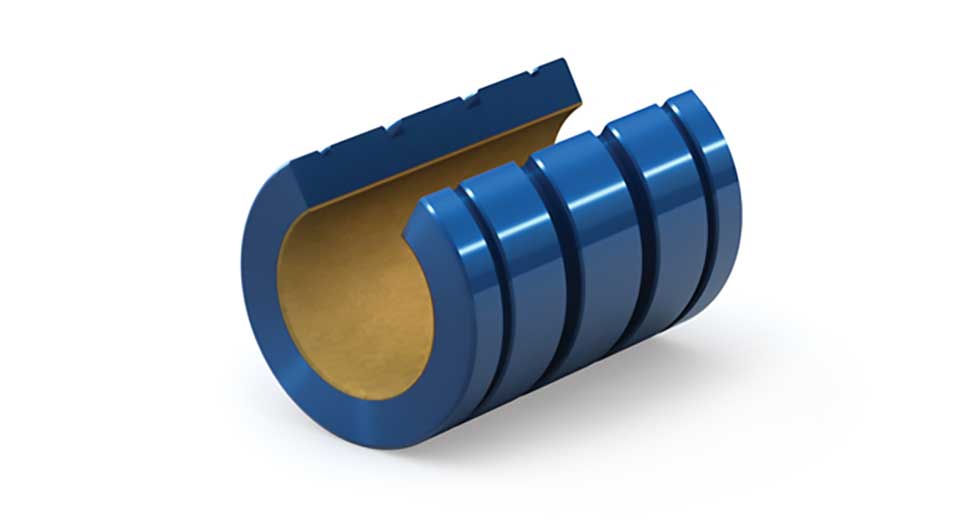

FMCN (Metric) Open Compensated Linear Plain Bearing

FMCN (Metric) Open Compensated Linear Plain Bearing

The FMCN Open Compensated Linear Plain Bearing is part of the metric series, identifiable by its blue anodized aluminum shell. This bearing is available in industry-standard sizes and is interchangeable with linear ball bearings and some bronze bushings. The open, compensated design offers additional clearance within the I.D. while maintaining the same external dimensions as precision bearings, making it ideal for parallel shaft applications.

  • Additional Clearance: Built into the I.D., with external dimensions matching precision bearings
  • Parallel Shaft Applications: Ideally suited for use in parallel shaft setups
Name Nominal ID (mm) Nominal OD (mm) Shaft Diameter (mm) Static Load (N) Shop Link
FMCN05 5.07 11.99 5.00 2276.00 Shop Now
FMCN08 8.07 15.99 8.00 4120.00 Shop Now
FMCN10 10.07 18.99 10.00 5984.00 Shop Now
FMCN12 12.08 21.99 12.00 7907.00 Shop Now
FMCN16 16.08 25.99 16.00 11870.00 Shop Now
FMCN20 20.11 31.99 20.00 18541.00 Shop Now
FMCN25 25.11 39.99 25.00 29881.00 Shop Now
FMCN30 30.11 46.99 30.00 42026.00 Shop Now
FMCN40 40.15 61.99 40.00 65923.00 Shop Now
FMCN50 50.15 74.99 50.00 103005.00 Shop Now
FMCN60 60.21 89.98 60.00 154508.00 Shop Now
FMCN80 80.21 119.94 80.00 271933.00 Shop Now

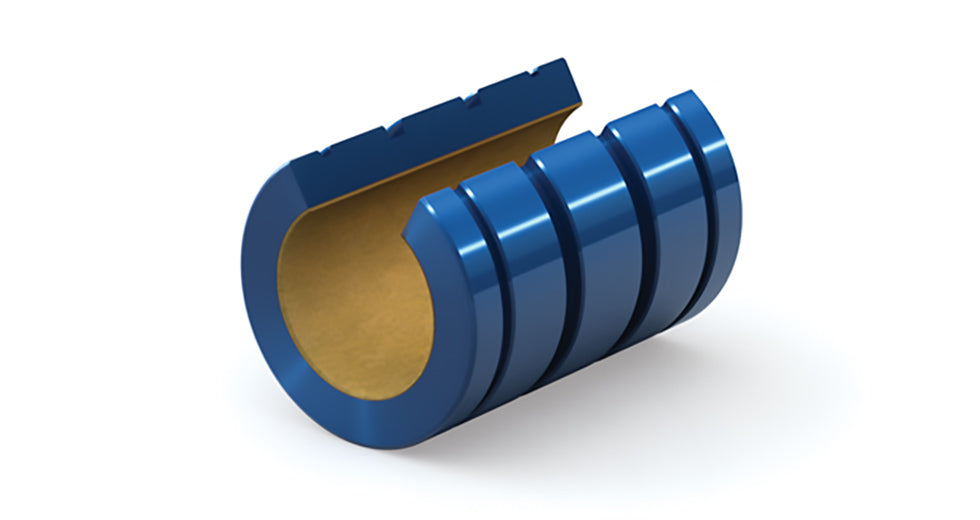

FMN (Metric) Open Linear Plain Bearings

FMN (Metric) Open Linear Plain Bearings

The FMN Open Linear Plain Bearing is the open version of the ISO metric closed bearing, designed to allow use on fully supported shafting for greater system rigidity. It retains all the features and benefits of the closed bearing while providing additional flexibility for supported shaft applications.

  • ID Sizes: Available from 5 mm to 80 mm
  • Static Load Capacities: Up to 270 kN (61,000 lbs)
  • Shell Material: Standard is aluminum; stainless steel shells are available
  • Bearing Liner: FrelonGOLD® is standard; Frelon® J & Frelon® W are optional
  • Self-Lubricating: Provides oil-free operation
  • Optional Seals: Urethane seals available from 20 mm ID and up
  • External Lubrication: Optional feature for added lubrication
  • Temperature Range: -240°C to 204°C (-400°F to 400°F)
  • Vibration Dampening: Ensures smooth and quiet operation
  • Custom Modifications: Available upon request; contact an Application Engineer for details
Name Nominal ID (mm) Nominal OD (mm) Shaft Diameter (mm) Static Load (N) Shop Link
FMN05 5.02 11.99 5.00 2276.00 Shop Now
FMN08 8.02 15.99 8.00 4120.00 Shop Now
FMN10 10.02 18.99 10.00 5984.00 Shop Now
FMN12 12.03 21.99 12.00 7907.00 Shop Now
FMN16 16.03 25.99 16.00 11870.00 Shop Now
FMN20 20.04 31.99 20.00 18541.00 Shop Now
FMN25 25.04 39.99 25.00 29881.00 Shop Now
FMN30 30.04 46.99 30.00 42026.00 Shop Now
FMN40 40.05 61.99 40.00 65923.00 Shop Now
FMN50 50.05 74.99 50.00 51503.00 Shop Now
FMN60 60.05 89.98 60.00 154508.00 Shop Now
FMN80 80.05 119.98 80.00 271933.00 Shop Now

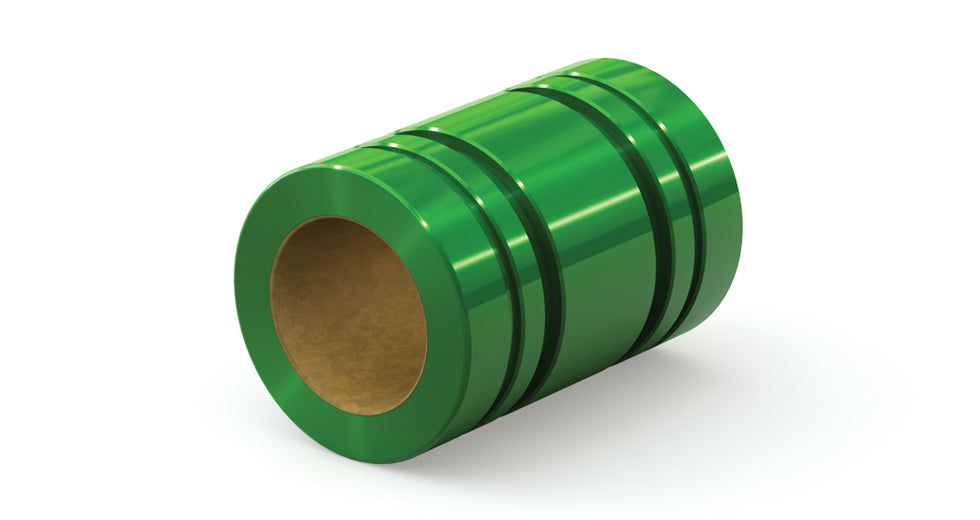

FJ (JIS) Closed Linear Plain Bearing

FJ (JIS) Closed Linear Plain Bearing

The FJ Closed Linear Plain Bearing features a green anodized aluminum shell, identifying it as part of the JIS metric series. This bearing is available in off-the-shelf industry standard sizes and is interchangeable with linear ball bearings and some bronze bushings. Designed for use with end-supported shafting, it conforms to JIS tolerance standards.

  • ID Sizes: Available from 6 mm to 150 mm
  • Static Load Capacities: Up to 740 kN (166,000 lbs)
  • Shell Material: Standard is aluminum; stainless steel shells are available
  • Bearing Liner: FrelonGOLD® is standard; Frelon® J & Frelon® W are optional
  • Self-Lubricating: Provides oil-free operation
  • Optional Accessories: Urethane seals on 20 mm ID and up, O-rings, and external lubrication options
  • Temperature Range: -240°C to 204°C (-400°F to 400°F)
  • Vibration Dampening: Ensures smooth and quiet operation
  • Custom Modifications: Available upon request; contact an Application Engineer for details
Name Nominal ID (mm) Nominal OD (mm) Shaft Diameter (mm) Static Load (N) Shop Link
FJ06 6.00 12.00 6.00 2348.00 Shop Now
FJ08 8.00 15.00 8.00 404.00 Shop Now
FJ10 10.00 19.00 10.00 610.00 Shop Now
FJ100 100.00 150.00 100.00 360371.00 Shop Now
FJ12 12.00 21.00 12.00 756.00 Shop Now
FJ120 120.00 180.00 120.00 494222.00 Shop Now
FJ13 13.00 23.00 13.00 874.00 Shop Now
FJ150 150.00 210.00 150.00 741334.00 Shop Now
FJ16 16.00 28.00 16.00 1244.00 Shop Now
FJ20 20.00 32.00 20.00 1764.00 Shop Now
FJ25 25.00 40.00 25.00 3098.00 Shop Now
FJ30 30.00 45.00 30.00 4032.00 Shop Now
FJ35 35.00 52.00 35.00 5146.00 Shop Now
FJ38 38.00 57.00 38.00 6064.00 Shop Now
FJ40 40.00 60.00 40.00 6720.00 Shop Now
FJ50 50.00 80.00 50.00 102963.00 Shop Now
FJ60 60.00 90.00 60.00 135911.00 Shop Now
FJ80 80.00 120.00 80.00 230637.00 Shop Now

FJA (JIS) Closed Self-Aligning Linear Plain Bearing

FJA (JIS) Closed Self-Aligning Linear Plain Bearing

The FJA Closed Self-Aligning Linear Plain Bearing is part of the JIS metric series, identified by its green anodized aluminum shell. Available in industry-standard sizes, this bearing is interchangeable with linear ball bearings and some bronze bushings. The closed, self-aligning design is ideal for use with end-supported shafting and conforms to JIS tolerance standards.

  • ID Sizes: Available from 6 mm to 150 mm
  • Static Load Capacities: Up to 740 kN (166,000 lbs)
  • Shell Material: Standard is aluminum; stainless steel shells are available
  • Bearing Liner: FrelonGOLD® is standard; Frelon® J & Frelon® W are optional
  • Self-Lubricating: Provides oil-free operation
  • Optional Accessories: Urethane seals on 20 mm ID and up, O-rings, and external lubrication options
  • Temperature Range: -240°C to 204°C (-400°F to 400°F)
  • Vibration Dampening: Ensures smooth and quiet operation
  • Custom Modifications: Available upon request; contact an Application Engineer for details
Name Nominal ID (mm) Nominal OD (mm) Shaft Diameter (mm) Static Load (N) Shop Link
FJA06 6.04 11.96 6.00 2348.00 Shop Now
FJA08 8.07 14.96 8.00 3962.00 Shop Now
FJA10 10.08 18.95 10.00 5982.00 Shop Now
FJA100 100.21 149.95 100.00 360371.00 Shop Now
FJA12 12.08 20.96 12.00 7413.00 Shop Now
FJA120 120.21 179.95 120.00 494222.00 Shop Now
FJA13 13.08 22.96 13.00 8570.00 Shop Now
FJA150 150.21 209.95 150.00 741331.00 Shop Now
FJA16 16.08 27.96 16.00 12199.00 Shop Now
FJA20 20.11 31.95 20.00 17298.00 Shop Now
FJA25 25.11 39.96 25.00 30379.00 Shop Now
FJA30 30.11 44.95 30.00 39538.00 Shop Now
FJA35 35.18 51.95 35.00 50462.00 Shop Now
FJA38 38.15 56.95 38.00 59464.00 Shop Now
FJA40 40.15 59.95 40.00 65896.00 Shop Now
FJA50 50.15 79.95 50.00 102963.00 Shop Now
FJA60 60.21 89.95 60.00 135911.00 Shop Now
FJA80 80.21 119.95 80.00 230637.00 Shop Now

FJAC (JIS) Closed Self-Aligning Compensated Linear Plain Bearing

FJAC (JIS) Closed Self-Aligning Compensated Linear Plain Bearing

The FJAC Closed Self-Aligning Compensated Linear Plain Bearing is part of the JIS metric series, distinguished by its green anodized aluminum shell. This bearing is available in industry-standard sizes and is interchangeable with linear ball bearings and some bronze bushings. The closed, self-aligning, and compensated design is ideal for use with end-supported shafting and conforms to JIS tolerance standards.

  • ID Sizes: Available from 6 mm to 150 mm
  • Static Load Capacities: Up to 740 kN (166,000 lbs)
  • Shell Material: Standard is aluminum; stainless steel shells are available
  • Bearing Liner: FrelonGOLD® is standard; Frelon® J & Frelon® W are optional
  • Self-Lubricating: Provides oil-free operation
  • Optional Accessories: Urethane seals on 20 mm ID and up, O-rings, and external lubrication options
  • Temperature Range: -240°C to 204°C (-400°F to 400°F)
  • Vibration Dampening: Ensures smooth and quiet operation
  • Custom Modifications: Available upon request; contact an Application Engineer for details
Name Nominal ID (mm) Nominal OD (mm) Shaft Diameter (mm) Static Load (N) Shop Link
FJAC06 6.04 11.96 6.00 2348.00 Shop Now
FJAC08 8.07 14.96 8.00 3962.00 Shop Now
FJAC10 10.08 18.95 10.00 5982.00 Shop Now
FJAC100 100.21 149.95 100.00 360371.00 Shop Now
FJAC12 12.08 20.96 12.00 7413.00 Shop Now
FJAC120 120.21 179.95 120.00 494222.00 Shop Now
FJAC13 13.08 22.96 13.00 8570.00 Shop Now
FJAC150 150.21 209.95 150.00 741331.00 Shop Now
FJAC16 16.08 27.96 16.00 12199.00 Shop Now
FJAC20 20.11 31.95 20.00 17298.00 Shop Now
FJAC25 25.11 39.96 25.00 30379.00 Shop Now
FJAC30 30.11 44.95 30.00 39538.00 Shop Now
FJAC35 35.18 51.95 35.00 50462.00 Shop Now
FJAC38 38.15 56.95 38.00 59464.00 Shop Now
FJAC40 40.15 59.95 40.00 65896.00 Shop Now
FJAC50 50.15 79.95 50.00 102963.00 Shop Now
FJAC60 60.21 89.95 60.00 135911.00 Shop Now
FJAC80 80.21 119.95 80.00 230637.00 Shop Now

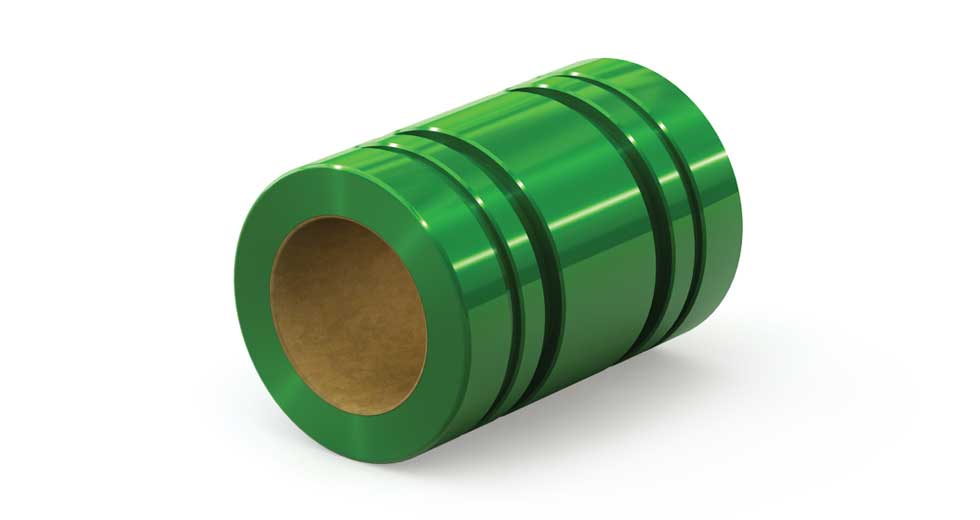

FJC (JIS) Closed Compensated Linear Plain Bearing

FJC (JIS) Closed Compensated Linear Plain Bearing

The FJC Closed Compensated Linear Plain Bearing is part of the JIS metric series, identified by its green anodized aluminum shell. Available in industry-standard sizes, this bearing is interchangeable with linear ball bearings and some bronze bushings. The closed, compensated design allows for greater shaft flexibility and is ideal for use with end-supported shafting, conforming to JIS tolerance standards.

  • ID Sizes: Available from 6 mm to 150 mm
  • Static Load Capacities: Up to 740 kN (166,000 lbs)
  • Shell Material: Standard is aluminum; stainless steel shells are available
  • Bearing Liner: FrelonGOLD® is standard; Frelon® J & Frelon® W are optional
  • Self-Lubricating: Provides oil-free operation
  • Optional Accessories: Urethane seals on 20 mm ID and up, O-rings, and external lubrication options
  • Temperature Range: -240°C to 204°C (-400°F to 400°F)
  • Vibration Dampening: Ensures smooth and quiet operation
  • Custom Modifications: Available upon request; contact an Application Engineer for details
Name Nominal ID (mm) Nominal OD (mm) Shaft Diameter (mm) Static Load (N) Shop Link
FJC06 6.00 12.00 6.00 2348.00 Shop Now
FJC08 8.00 15.00 8.00 3962.00 Shop Now
FJC10 10.00 19.00 10.00 5982.00 Shop Now
FJC100 100.00 150.00 100.00 360371.00 Shop Now
FJC12 12.00 21.00 12.00 7413.00 Shop Now
FJC120 120.00 180.00 120.00 494222.00 Shop Now
FJC13 13.00 23.00 13.00 8570.00 Shop Now
FJC150 150.00 210.00 150.00 741331.00 Shop Now
FJC16 16.00 28.00 16.00 12199.00 Shop Now
FJC20 20.00 32.00 20.00 17298.00 Shop Now
FJC25 25.00 40.00 25.00 30379.00 Shop Now
FJC30 30.00 45.00 30.00 39538.00 Shop Now
FJC35 35.00 52.00 35.00 50462.00 Shop Now
FJC38 38.00 57.00 38.00 59464.00 Shop Now
FJC40 40.00 60.00 40.00 65896.00 Shop Now
FJC50 50.00 80.00 50.00 102963.00 Shop Now
FJC60 60.00 90.00 60.00 135911.00 Shop Now
FJC80 80.00 120.00 80.00 230637.00 Shop Now

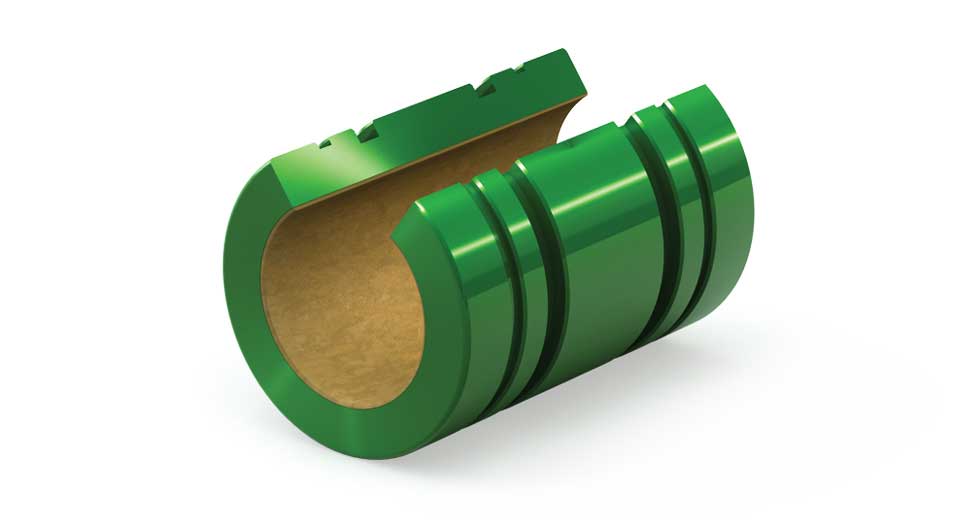

FJCN (JIS) Open Compensated Linear Plain Bearing

FJCN (JIS) Open Compensated Linear Plain Bearing

The FJCN Open Compensated Linear Plain Bearing is part of the JIS metric series, easily identified by its green anodized aluminum shell. This bearing is available in off-the-shelf industry standard sizes and is interchangeable with linear ball bearings and some bronze bushings. The open, compensated design allows for greater shaft flexibility, making it ideal for use with end-supported shafting. It conforms to JIS tolerance standards.

  • ID Sizes: Available from 8 mm to 150 mm
  • Static Load Capacities: Up to 740 kN (166,000 lbs)
  • Shell Material: Standard is aluminum; stainless steel shells are available
  • Bearing Liner: FrelonGOLD® is standard; Frelon® J & Frelon® W are optional
  • Self-Lubricating: Provides oil-free operation
  • Optional Accessories: Urethane seals on 20 mm ID and up, O-rings, and external lubrication options
  • Temperature Range: -240°C to 204°C (-400°F to 400°F)
  • Vibration Dampening: Ensures smooth and quiet operation
  • Custom Modifications: Available upon request; contact an Application Engineer for details
Name Nominal ID (mm) Nominal OD (mm) Shaft Diameter (mm) Static Load (N) Shop Link
FJCN08 8.07 15.00 8.00 3962.00 Shop Now
FJCN10 10.08 18.99 10.00 5982.00 Shop Now
FJCN100 100.21 149.99 100.00 360371.00 Shop Now
FJCN12 12.08 20.99 12.00 7413.00 Shop Now
FJCN120 120.21 79.99 120.00 494222.00 Shop Now
FJCN13 13.08 22.99 13.00 8570.00 Shop Now
FJCN150 150.21 209.99 150.00 741331.00 Shop Now
FJCN16 16.08 27.99 16.00 12199.00 Shop Now
FJCN20 20.11 31.99 20.00 17298.00 Shop Now
FJCN25 25.11 39.99 25.00 30379.00 Shop Now
FJCN30 30.11 44.99 30.00 39538.00 Shop Now
FJCN35 35.18 51.99 35.00 50462.00 Shop Now
FJCN38 38.15 56.99 38.00 59464.00 Shop Now
FJCN40 40.15 59.99 40.00 65896.00 Shop Now
FJCN50 50.15 79.99 50.00 102963.00 Shop Now
FJCN60 60.21 89.99 60.00 135911.00 Shop Now
FJCN80 80.21 119.99 80.00 230637.00 Shop Now

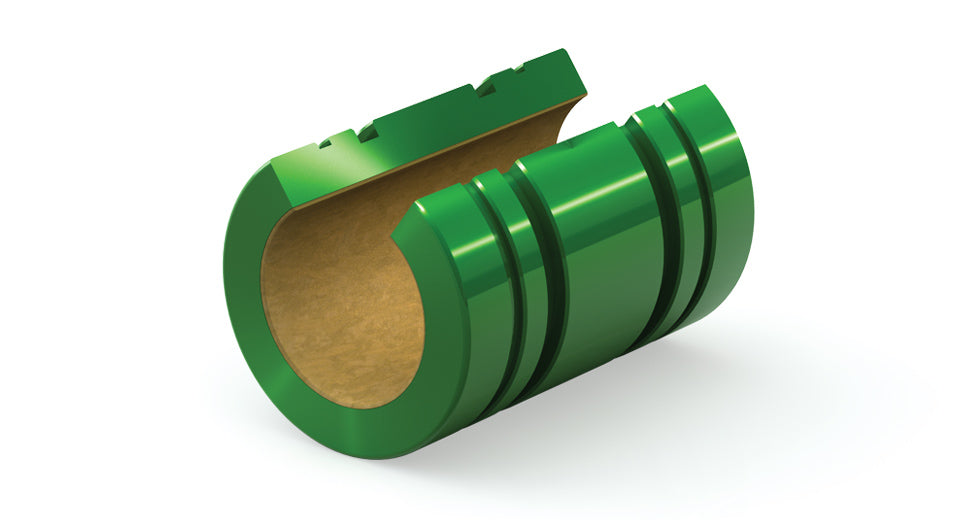

FJN (JIS) Open Linear Plain Bearing

FJN (JIS) Open Linear Plain Bearing

The FJN Open Linear Plain Bearing is the open version of the JIS metric closed bearing, designed for use on fully supported shafting to provide greater system rigidity. It retains all the features and benefits of the closed bearing, making it a versatile option for various applications.

  • ID Sizes: Available from 8 mm to 80 mm
  • Static Load Capacities: Up to 270 kN (61,000 lbs)
  • Shell Material: Standard is aluminum; stainless steel shells are available
  • Bearing Liner: FrelonGOLD® is standard; Frelon® J & Frelon® W are optional
  • Self-Lubricating: Provides oil-free operation
  • Optional Seals: Urethane seals available from 20 mm ID and up
  • External Lubrication: Optional feature for added lubrication
  • Temperature Range: -240°C to 204°C (-400°F to 400°F)
  • Vibration Dampening: Ensures smooth and quiet operation
  • Custom Modifications: Available upon request; contact an Application Engineer for details
Name Nominal ID (mm) Nominal OD (mm) Shaft Diameter (mm) Static Load (N) Shop Link
FJN08 8.00 15.00 8.00 2805.00 Shop Now
FJN10 10.00 19.00 10.00 5982.00 Shop Now
FJN100 100.00 150.00 100.00 360371.00 Shop Now
FJN12 12.00 21.00 12.00 7413.00 Shop Now
FJN16 16.00 28.00 16.00 12199.00 Shop Now
FJN20 20.00 32.00 20.00 17298.00 Shop Now
FJN25 25.00 40.00 25.00 30379.00 Shop Now
FJN30 30.00 45.00 30.00 39538.00 Shop Now
FJN35 35.00 52.00 35.00 50462.00 Shop Now
FJN38 38.00 57.00 38.00 59464.00 Shop Now
FJN40 40.00 60.00 40.00 65896.00 Shop Now
FJN50 50.00 80.00 50.00 102963.00 Shop Now
FJN60 60.00 90.00 60.00 135911.00 Shop Now
FJN80 80.00 120.00 80.00 230637.00 Shop Now

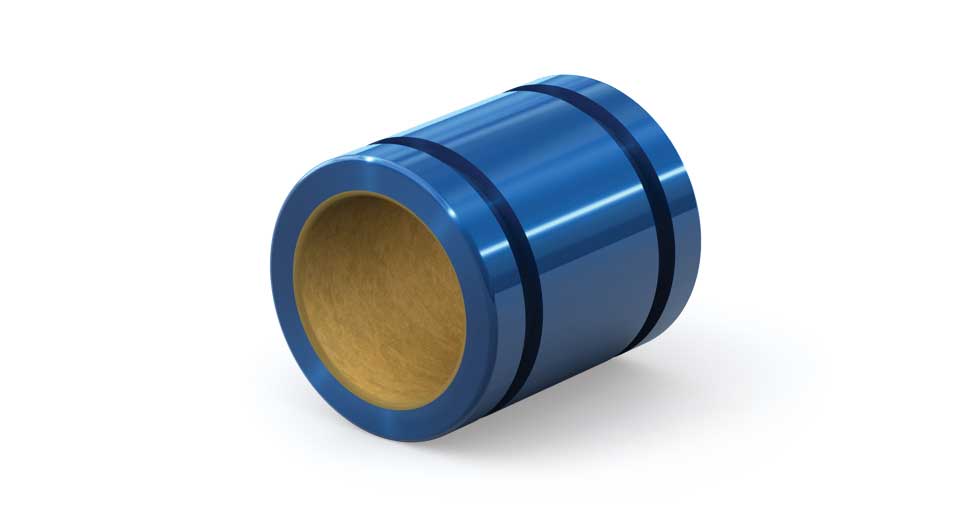

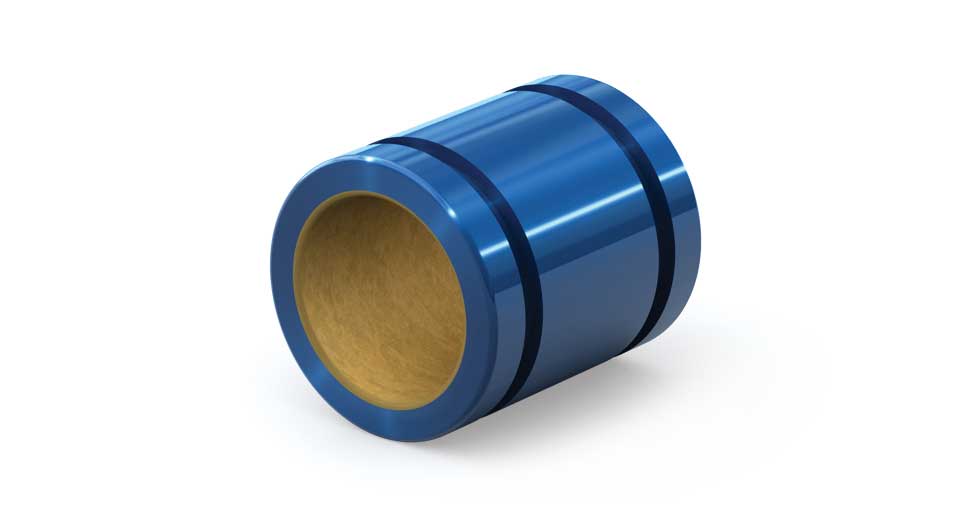

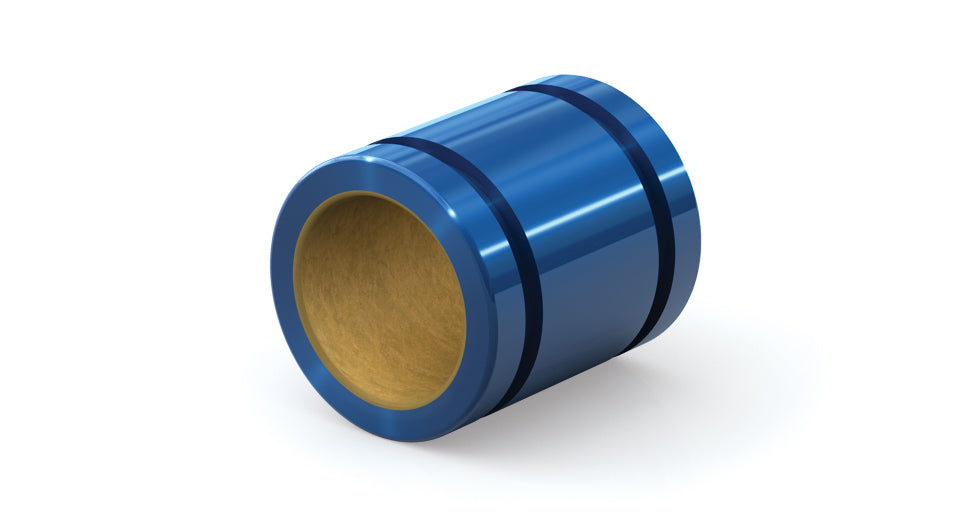

FG (Metric) Closed Thin Wall Linear Plain Bearings

FG (Metric) Closed Thin Wall Linear Plain Bearings

The FG Closed Thin Wall Linear Plain Bearings offer the same construction and smooth operation as the FM series but in a more compact package. These bearings are designed to be interchangeable with compact ball bearings and bronze bushings, providing versatility in various applications.

  • ID Sizes: Available from 6 mm to 50 mm
  • Static Load Capacities: Up to 92 kN (20,000 lbs)
  • Shell Material: Standard is aluminum; stainless steel shells are available
  • Bearing Liner: FrelonGOLD® is standard; Frelon® J & Frelon® W are optional
  • Self-Lubricating: Provides oil-free operation
  • Temperature Range: -240°C to 204°C (-400°F to 400°F)
  • Vibration Dampening: Ensures smooth and quiet operation
  • Custom Modifications: Available upon request; contact an Application Engineer for details
Name Nominal ID (mm) Nominal OD (mm) Shaft Diameter (mm) Static Load (N) Shop Link
FG06 6.00 12.00 6.00 2217.00 Shop Now
FG08 8.00 15.00 8.00 3296.00 Shop Now
FG10 10.00 17.00 10.00 4532.00 Shop Now
FG12 12.00 22.00 12.00 6671.00 Shop Now
FG15 15.00 25.00 15.00 8652.00 Shop Now
FG16 16.00 26.00 16.00 9888.00 Shop Now
FG20 20.00 32.00 20.00 14421.00 Shop Now
FG25 25.00 40.00 25.00 23171.00 Shop Now
FG30 30.00 45.00 30.00 33374.00 Shop Now
FG35 35.00 52.00 35.00 44714.00 Shop Now
FG40 40.00 60.00 40.00 59331.00 Shop Now
FG50 50.00 80.00 50.00 92705.00 Shop Now

FGC (Metric) Closed Compensated Thin Wall Linear Plain Bearings

FGC (Metric) Closed Compensated Thin Wall Linear Plain Bearings

The FGC Closed Compensated Thin Wall Linear Plain Bearing is part of the metric series, designed to be interchangeable with compact ball bearings and bronze bushings. This compensated bearing offers enhanced flexibility and smooth operation in a compact form factor.

  • ID Sizes: Available from 6 mm to 50 mm
  • Static Load Capacities: Up to 92 kN (20,000 lbs)
  • Shell Material: Standard is aluminum; stainless steel shells are available
  • Bearing Liner: FrelonGOLD® is standard; Frelon® J & Frelon® W are optional
  • Self-Lubricating: Provides oil-free operation
  • Temperature Range: -240°C to 204°C (-400°F to 400°F)
  • Vibration Dampening: Ensures smooth and quiet operation
  • Custom Modifications: Available upon request; contact an Application Engineer for details
Name Nominal ID (mm) Nominal OD (mm) Shaft Diameter (mm) Static Load (N) Shop Link
FGC06 6.00 12.00 6.00 2217.00 Shop Now
FGC08 8.00 15.00 8.00 3296.00 Shop Now
FGC10 10.00 17.00 10.00 4532.00 Shop Now
FGC12 12.00 22.00 12.00 6671.00 Shop Now
FGC15 15.00 25.00 15.00 8652.00 Shop Now
FGC16 16.00 26.00 16.00 9888.00 Shop Now
FGC20 20.00 32.00 20.00 14421.00 Shop Now
FGC25 25.00 40.00 25.00 23171.00 Shop Now
FGC30 30.00 45.00 30.00 33374.00 Shop Now
FGC35 35.00 52.00 35.00 44714.00 Shop Now
FGC40 40.00 60.00 40.00 59331.00 Shop Now
FGC50 50.00 75.00 50.00 92705.00 Shop Now

FMT (Metric) Closed Thin Wall Linear Plain Bearings

FMT (Metric) Closed Thin Wall Linear Plain Bearings

The FMT Closed Thin Wall Linear Plain Bearings provide the same construction and smooth operation as the FM series but in a more compact design. These bearings are designed to be interchangeable with compact ball bearings and bronze bushings, offering versatility in various applications.

  • ID Sizes: Available from 6 mm to 50 mm
  • Static Load Capacities: Up to 72 kN (16,000 lbs)
  • Shell Material: Standard is aluminum; stainless steel shells are available
  • Bearing Liner: FrelonGOLD® is standard; Frelon® J & Frelon® W are optional
  • Self-Lubricating: Provides oil-free operation
  • Temperature Range: -240°C to 204°C (-400°F to 400°F)
  • Vibration Dampening: Ensures smooth and quiet operation
  • Custom Modifications: Available upon request; contact an Application Engineer for details
Name Nominal ID (mm) Nominal OD (mm) Shaft Diameter (mm) Static Load (N) Shop Link
FMT06 6.00 12.00 6.00 2727.00 Shop Now
FMT08 8.00 15.00 8.00 3963.00 Shop Now
FMT10 10.00 17.00 10.00 5356.00 Shop Now
FMT12 12.00 19.00 12.00 6926.00 Shop Now
FMT14 14.00 21.00 14.00 8083.00 Shop Now
FMT16 16.00 24.00 16.00 9888.00 Shop Now
FMT20 20.00 28.00 20.00 12361.00 Shop Now
FMT25 25.00 35.00 25.00 20601.00 Shop Now
FMT30 30.00 40.00 30.00 30902.00 Shop Now
FMT40 40.00 52.00 40.00 49442.00 Shop Now
FMT50 50.00 62.00 50.00 72104.00 Shop Now

FMTC (Metric) Closed Compensated Thin Wall Linear Plain Bearings

FMTC (Metric) Closed Compensated Thin Wall Linear Plain Bearings

The FMTC Closed Compensated Thin Wall Linear Plain Bearing is the compensated version of the metric thin wall series, designed for enhanced flexibility while maintaining a compact form factor. These bearings are interchangeable with compact ball bearings and bronze bushings, providing versatility across applications.

  • ID Sizes: Available from 6 mm to 50 mm
  • Static Load Capacities: Up to 72 kN (16,000 lbs)
  • Shell Material: Standard is aluminum; stainless steel shells are available
  • Bearing Liner: FrelonGOLD® is standard; Frelon® J & Frelon® W are optional
  • Self-Lubricating: Provides oil-free operation
  • Temperature Range: -240°C to 204°C (-400°F to 400°F)
  • Vibration Dampening: Ensures smooth and quiet operation
  • Custom Modifications: Available upon request; contact an Application Engineer for details
Name Nominal ID (mm) Nominal OD (mm) Shaft Diameter (mm) Static Load (N) Shop Link
FMTC06 6.00 12.00 6.00 2727.00 Shop Now
FMTC08 8.00 15.00 8.00 3963.00 Shop Now
FMTC10 10.00 17.00 10.00 5356.00 Shop Now
FMTC12 12.00 19.00 12.00 6926.00 Shop Now
FMTC14 14.00 21.00 14.00 8083.00 Shop Now
FMTC16 16.00 24.00 16.00 9888.00 Shop Now
FMTC20 20.00 28.00 20.00 12361.00 Shop Now
FMTC25 25.00 35.00 25.00 20601.00 Shop Now
FMTC30 30.00 40.00 30.00 30902.00 Shop Now
FMTC40 40.00 52.00 40.00 49442.00 Shop Now
FMTC50 50.00 62.00 50.00 72104.00 Shop Now
