Linear Plain Bearing Pillow Blocks

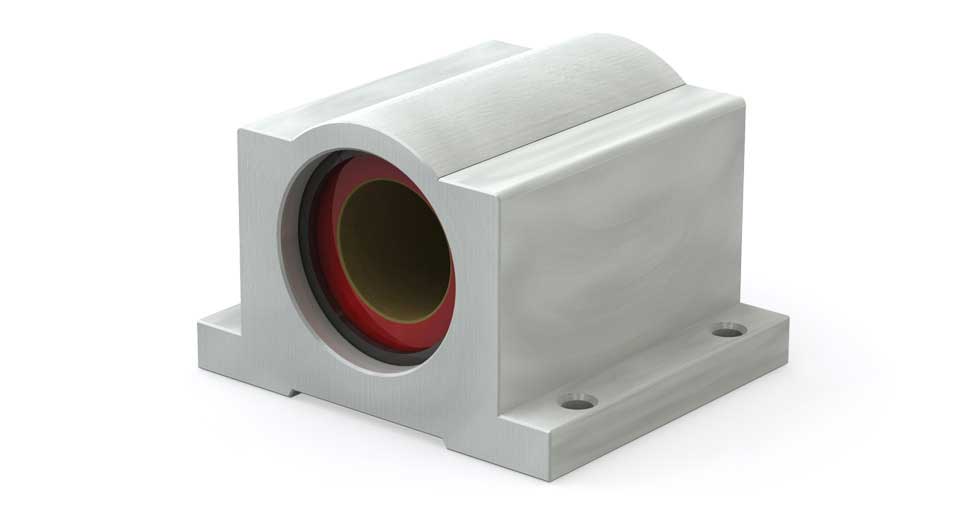

P (Inch) Closed Plain Linear Pillow Block Bearing

Plain Pillow Block Bearing


Plain Linear Pillow Block Bearings combine a standard Simplicity® Linear Plain Bearing with a self-aligning housing to form the P Closed Linear Plain Bearing Pillow Block. This imperial (inch), closed, single-length version is designed for cost-effective installation on end-supported shafts. Commonly used in North America, it offers a variety of features and benefits for efficient operation.


  • ID Sizes: Available from 1/4” to 2”
  • Static Load Capacities: Up to 25,000 lb (111,000 N)
  • Self-Lubricating: Provides oil-free operation
  • Shell Material: Standard is aluminum; stainless steel bearing shells and housings are available
  • Bearing Liner: FrelonGOLD® is standard; Frelon® J & Frelon® W are optional
  • Seal Options: Available in nitrile rubber, urethane, and viton from ½” ID and up
  • External Lubrication: Optional feature for added lubrication
  • Temperature Range: -400°F to 400°F (-240°C to 204°C)
  • Vibration Damping: Ensures smooth and quiet operation
  • Precision Machining: Tighter tolerances than industry standards for better accuracy
  • Interchangeability: Size interchangeable with industry standards
  • Custom Modifications: Available upon request; contact an Application Engineer for details
Name Shaft Diameter (in) Bearing Width (in) Bearing Length (in) Static Load (lbs) Shop Link
P04 0.250 1.625 1.190 600 Shop Now
P06 0.375 1.750 1.310 1020 Shop Now
P08 0.500 2.000 1.690 1950 Shop Now
P10 0.625 2.500 1.940 2940 Shop Now
P12 0.750 2.750 2.060 3710 Shop Now
P16 1.000 3.250 2.810 7050 Shop Now
P20 1.250 4.000 3.630 10290 Shop Now
P24 1.500 4.750 4.000 14100 Shop Now
P32 2.000 6.000 5.000 25050 Shop Now

PC (Inch) Closed Compensated Linear Plain Bearing Pillow Block

PC (Inch) Closed Compensated Linear Plain Bearing Pillow Block

Lee combines this compensated Simplicity® Linear Plain Bearing with a self-aligning housing to create a durable and reliable Pillow Block. This is the imperial (inch), closed, single-length version of the bearing, featuring a compensated I.D. The closed bearing design allows for cost-effective installation using end-supported shafts. It is most commonly used in North America and offers a range of features and benefits.

  • ID Sizes: Available from 1/4” to 2”
  • Static Load Capacities: Up to 25,000 lb (111,000 N)
  • Self-Lubricating: Provides oil-free operation
  • Housing Material: Standard is aluminum; stainless steel bearing shells and housings are available
  • Bearing Liner: FrelonGOLD® is standard; Frelon® J & Frelon® W are optional
  • Seal Options: Available in nitrile rubber, urethane, and viton from ½” ID and up
  • External Lubrication: Optional feature for added lubrication
  • Temperature Range: -400°F to 400°F (-240°C to 204°C)
  • Vibration Damping: Ensures smooth and quiet operation
  • Precision Machining: Tighter tolerances than industry standards for better accuracy
  • Interchangeability: Size interchangeable with industry standards
  • Custom Modifications: Available upon request; contact an Application Engineer for details
Name Shaft Diameter (in) Bearing Width (in) Bearing Length (in) Static Load (lbs) Shop Link
P04C 0.250 1.625 1.190 600 Shop Now
P06C 0.375 1.750 1.310 1020 Shop Now
P08C 0.500 2.000 1.690 1950 Shop Now
P10C 0.625 2.500 1.940 2940 Shop Now
P12C 0.750 2.750 2.060 3710 Shop Now
P16C 1.000 3.250 2.810 7050 Shop Now
P20C 1.250 4.000 3.630 10290 Shop Now
P24C 1.500 4.750 4.000 14100 Shop Now
P32C 2.000 6.000 5.000 25050 Shop Now

PM (Metric) Closed Linear Plain Bearing Pillow Blocks

PM (Metric) Closed Linear Plain Bearing Pillow Blocks

Lee combines a standard Simplicity® Linear Plain Bearing with a self-aligning housing to create the PM Closed Linear Plain Bearing Pillow Block. This is the ISO Metric, closed, single-length version of the bearing. The closed bearing design allows for cost-effective installation using end-supported shafts. It is most commonly used in Europe and offers a range of features and benefits.

  • ID Sizes: Available from 8 mm to 50 mm
  • Static Load Capacities: Up to 103,000 N (23,100 lb)
  • Self-Lubricating: Provides oil-free operation
  • Shell Material: Standard is aluminum; stainless steel bearing shells and housings are available
  • Bearing Liner: FrelonGOLD® is standard; Frelon® J & Frelon® W are optional
  • Seal Options: Urethane seals available
  • External Lubrication: Optional feature for added lubrication
  • Temperature Range: -240°C to 204°C (-400°F to 400°F)
  • Vibration Damping: Ensures smooth and quiet operation
  • Precision Machining: Tighter tolerances than industry standards for better accuracy
  • Interchangeability: Size interchangeable with industry standards
  • Custom Modifications: Available upon request; contact an Application Engineer for details
Name Shaft Diameter (mm) Bearing Width (mm) Bearing Length (mm) Static Load (N) Shop Link
PM08 8.00 28.00 35.00 4120.00 Shop Now
PM10 10.00 31.50 40.00 5984.00 Shop Now
PM12 12.00 35.00 43.00 7907.00 Shop Now
PM16 16.00 42.00 53.00 11870.00 Shop Now
PM20 20.00 50.00 59.30 18541.00 Shop Now
PM25 25.00 60.00 78.00 29881.00 Shop Now
PM30 30.00 71.00 87.00 42026.00 Shop Now
PM40 40.00 91.00 108.00 65923.00 Shop Now
PM50 50.00 105.00 132.00 103005.00 Shop Now

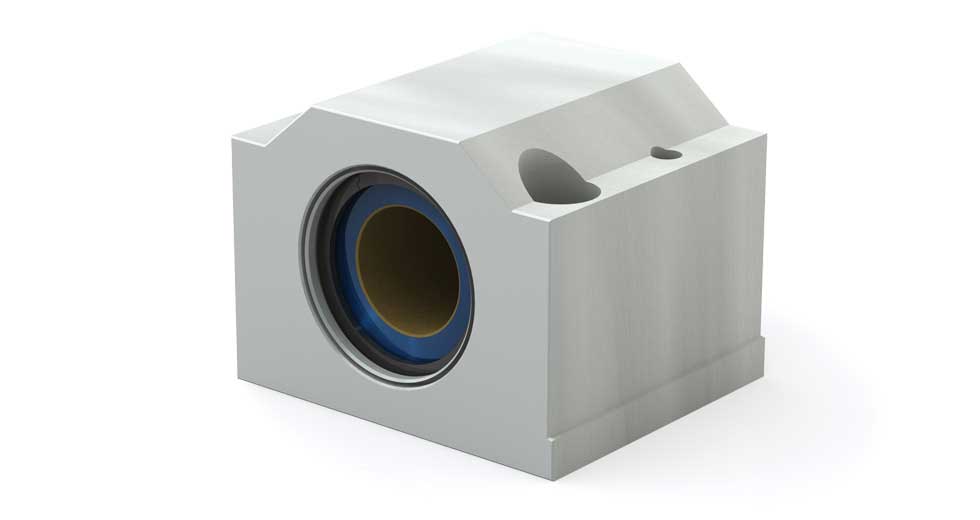

PMC (Metric) Closed Compensated Linear Plain Bearing Pillow Blocks

PMC (Metric) Closed Compensated Linear Plain Bearing Pillow Blocks

Lee combines a compensated metric Simplicity® Linear Plain Bearing with a self-aligning housing to create the PMC Closed Compensated Linear Plain Bearing Pillow Block. This is the ISO Metric, closed, compensated, single-length version of the bearing. The closed bearing design allows for cost-effective installation using end-supported shafts. It is most commonly used in Europe and offers a range of features and benefits.

  • ID Sizes: Available from 8 mm to 50 mm
  • Static Load Capacities: Up to 103,000 N (23,100 lb)
  • Self-Lubricating: Provides oil-free operation
  • Shell Material: Standard is aluminum; stainless steel bearing shells and housings are available
  • Bearing Liner: FrelonGOLD® is standard; Frelon® J & Frelon® W are optional
  • Seal Options: Urethane seals available
  • External Lubrication: Optional feature for added lubrication
  • Temperature Range: -240°C to 204°C (-400°F to 400°F)
  • Vibration Damping: Ensures smooth and quiet operation
  • Precision Machining: Tighter tolerances than industry standards for better accuracy
  • Interchangeability: Size interchangeable with industry standards
  • Custom Modifications: Available upon request; contact an Application Engineer for details
Name Shaft Diameter (mm) Bearing Width (mm) Bearing Length (mm) Static Load (N) Shop Link
PM08C 8.00 28.00 35.00 4120.00 Shop Now
PM10C 10.00 31.50 40.00 5984.00 Shop Now
PM12C 12.00 35.00 43.00 7907.00 Shop Now
PM16C 16.00 42.00 53.00 11870.00 Shop Now
PM20C 20.00 50.00 59.30 18541.00 Shop Now
PM25C 25.00 60.00 78.00 29881.00 Shop Now
PM30C 30.00 71.00 87.00 42026.00 Shop Now
PM40C 40.00 91.00 108.00 65923.00 Shop Now
PM50C 50.00 105.00 132.00 103005.00 Shop Now

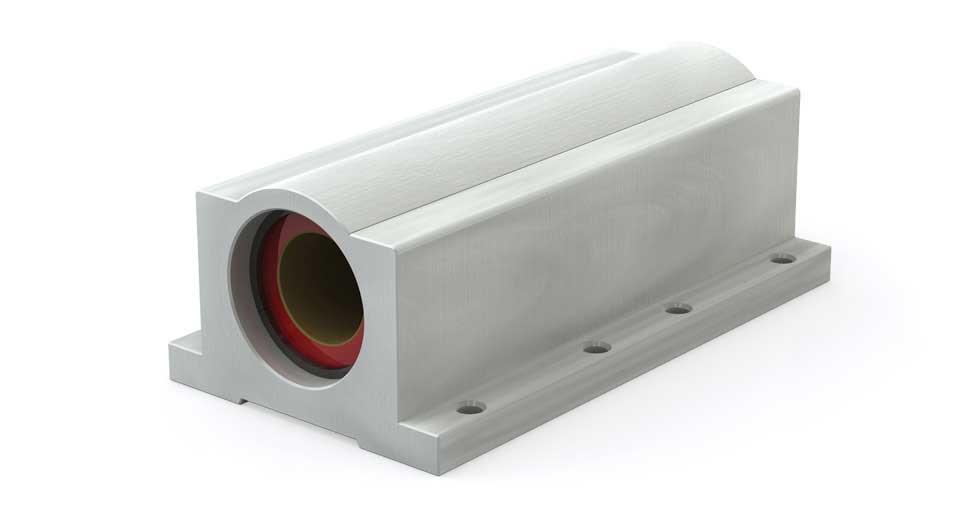

PWC (Inch) Twin Closed Compensated Linear Plain Bearing Pillow Blocks

PWC (Inch) Twin Closed Compensated Linear Plain Bearing Pillow Blocks

Lee combines a Simplicity® Linear Plain Bearing with a self-aligning twin-size housing to create the PWC Twin Closed Compensated Linear Plain Bearing Pillow Block. This is the imperial (inch), closed, compensated, double-length version of the bearing, most commonly found in North America. The closed bearing design allows for cost-effective installation using end-supported shafts and offers a range of additional features and benefits.

  • ID Sizes: Available from 1/4” to 2”
  • Static Load Capacities: Up to 50,000 lb (222,000 N)
  • Self-Lubricating: Provides oil-free operation
  • Shell Material: Standard is aluminum; stainless steel bearing shells and housings are available
  • Bearing Liner: FrelonGOLD® is standard; Frelon® J & Frelon® W are optional
  • Seal Options: Available in nitrile rubber, urethane, and viton from ½” ID and up
  • External Lubrication: Optional feature for added lubrication
  • Temperature Range: -400°F to 400°F (-240°C to 204°C)
  • Vibration Damping: Ensures smooth and quiet operation
  • Precision Machining: Tighter tolerances than industry standards for better accuracy
  • Interchangeability: Size interchangeable with industry standards
  • Custom Modifications: Available upon request; contact an Application Engineer for details
Name Shaft Diameter (in) Bearing Width (in) Bearing Length (in) Static Load (lbs) Shop Link
PW04C 0.250 1.625 2.500 1200 Shop Now
PW06C 0.375 1.750 2.750 2040 Shop Now
PW08C 0.500 2.000 3.500 3900 Shop Now
PW10C 0.625 2.500 4.000 5880 Shop Now
PW12C 0.750 2.750 4.500 7620 Shop Now
PW16C 1.000 3.250 6.000 14100 Shop Now
PW20C 1.250 4.000 7.500 20580 Shop Now
PW24C 1.500 4.750 9.000 28200 Shop Now
PW32C 2.000 6.000 10.000 50100 Shop Now

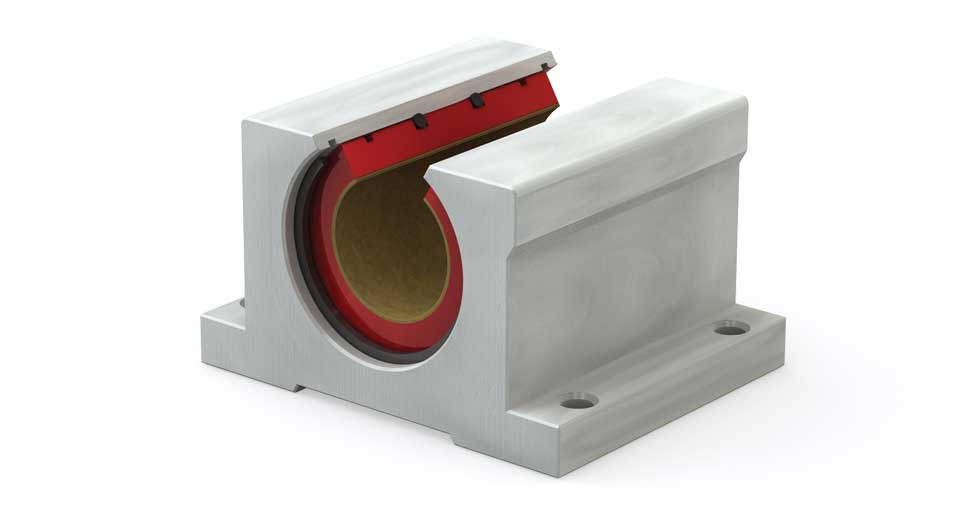

PN (Inch) Open Plain Linear Bearing Pillow Block

PN (Inch) Open Plain Linear Bearing Pillow Block

Lee combines a standard Simplicity® Linear Plain Bearing with a self-aligning housing to create the PN Open Plain Linear Bearing Pillow Block. This is the imperial (inch), open, single-length version of the bearing. The open design allows for fully supported shafts and support rails to be used for greater rigidity, making it a popular choice in North America. The pillow block offers several additional features and benefits.

  • ID Sizes: Available from 1/2” to 2”
  • Static Load Capacities: Up to 25,000 lb (111,000 N)
  • Self-Lubricating: Provides oil-free operation
  • Shell Material: Standard is aluminum; stainless steel bearing shells and housings are available
  • Bearing Liner: FrelonGOLD® is standard; Frelon® J & Frelon® W are optional
  • Seal Options: Available in nitrile rubber, urethane, and viton
  • External Lubrication: Optional feature for added lubrication
  • Temperature Range: -400°F to 400°F (-240°C to 204°C)
  • Vibration Damping: Ensures smooth and quiet operation
  • Precision Machining: Tighter tolerances than industry standards for better accuracy
  • Interchangeability: Size interchangeable with industry standards
  • Custom Modifications: Available upon request; contact an Application Engineer for details
Name Shaft Diameter (in) Bearing Width (in) Bearing Length (in) Static Load (lbs) Shop Link
PN08 0.500 2.000 1.500 1950 Shop Now
PN10 0.625 2.500 1.750 2940 Shop Now
PN12 0.750 2.750 1.880 3710 Shop Now
PN16 1.000 3.250 2.630 7050 Shop Now
PN20 1.250 4.000 3.380 10290 Shop Now
PN24 1.500 4.750 3.750 14100 Shop Now
PN32 2.000 6.000 4.750 25050 Shop Now

PNC (Inch) Open Compensated Plain Linear Bearing Pillow Block

PNC (Inch) Open Compensated Plain Linear Bearing Pillow Block

Lee combines a compensated Simplicity® Linear Plain Bearing with a self-aligning housing to create a sturdy and reliable Pillow Block. This is the imperial (inch), open, compensated, single-length version of the bearing. The open design allows for fully supported shafts and support rails to be used for greater rigidity, making it a popular choice in North America. The pillow block offers several additional features and benefits.

  • ID Sizes: Available from 1/2” to 2”
  • Static Load Capacities: Up to 25,000 lb (111,000 N)
  • Self-Lubricating: Provides oil-free operation
  • Shell Material: Standard is aluminum; stainless steel bearing shells and housings are available
  • Bearing Liner: FrelonGOLD® is standard; Frelon® J & Frelon® W are optional
  • Seal Options: Available in nitrile rubber, urethane, and viton
  • External Lubrication: Optional feature for added lubrication
  • Temperature Range: -400°F to 400°F (-240°C to 204°C)
  • Vibration Damping: Ensures smooth and quiet operation
  • Precision Machining: Tighter tolerances than industry standards for better accuracy
  • Interchangeability: Size interchangeable with industry standards
  • Custom Modifications: Available upon request; contact an Application Engineer for details
Name Shaft Diameter (in) Bearing Width (in) Bearing Length (in) Static Load (lbs) Shop Link
PN08C 0.500 2.000 1.500 1950 Shop Now
PN10C 0.625 2.500 1.750 2940 Shop Now
PN12C 0.750 2.750 1.880 3710 Shop Now
PN16C 1.000 3.250 2.630 7050 Shop Now
PN20C 1.250 4.000 3.380 10290 Shop Now
PN24C 1.500 4.750 3.750 14100 Shop Now
PN32C 2.000 6.000 4.750 25050 Shop Now

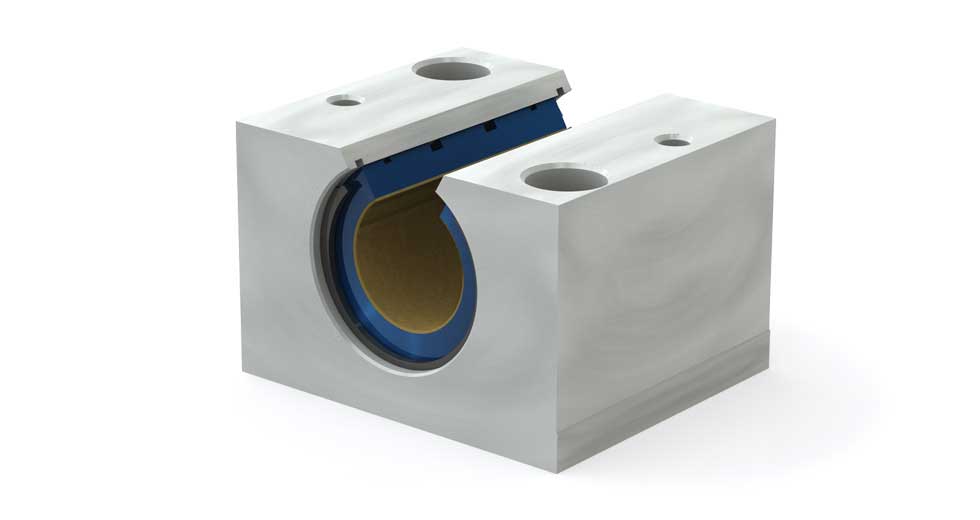

PMN (Metric) Open Plain Linear Bearing Pillow Block

PMN (Metric) Open Plain Linear Bearing Pillow Block

Lee combines a standard Simplicity® Linear Plain Bearing with a self-aligning housing to create the PMN Open Plain Linear Bearing Pillow Block. This is the ISO Metric, open, single-length version of the bearing. The open design allows for fully supported shafts and support rails to be used for greater rigidity, making it a popular choice in Europe. The pillow block offers several additional features and benefits.

  • ID Sizes: Available from 12 mm to 50 mm
  • Static Load Capacities: Up to 103,000 N (23,100 lb)
  • Self-Lubricating: Provides oil-free operation
  • Shell Material: Standard is aluminum; stainless steel bearing shells and housings are available
  • Bearing Liner: FrelonGOLD® is standard; Frelon® J & Frelon® W are optional
  • Seal Options: Urethane seals available
  • External Lubrication: Optional feature for added lubrication
  • Temperature Range: -240°C to 204°C (-400°F to 400°F)
  • Vibration Damping: Ensures smooth and quiet operation
  • Precision Machining: Tighter tolerances than industry standards for better accuracy
  • Interchangeability: Size interchangeable with industry standards
  • Custom Modifications: Available upon request; contact an Application Engineer for details
Name Shaft Diameter (mm) Bearing Width (mm) Bearing Length (mm) Static Load (N) Shop Link
PMN12 12.00 28.00 43.00 7907.00 Shop Now
PMN16 16.00 35.00 53.00 11870.00 Shop Now
PMN20 20.00 42.00 60.00 18541.00 Shop Now
PMN25 25.00 51.00 78.00 29881.00 Shop Now
PMN30 30.00 60.00 87.00 42026.00 Shop Now
PMN40 40.00 77.00 108.00 65923.00 Shop Now
PMN50 50.00 88.00 132.00 103005.00 Shop Now

PMNC (Metric) Open Compensated Plain Linear Bearing Pillow Block

PMNC (Metric) Open Compensated Plain Linear Bearing Pillow Block

Lee combines an open compensated Simplicity® Linear Plain Bearing with a self-aligning housing to create the PMNC Open Compensated Plain Linear Bearing Pillow Block. This is the ISO Metric, open, single-length version of the bearing, designed for flexibility and enhanced performance. The open design allows for fully supported shafts and support rails to be used for greater rigidity, making it a popular choice in Europe. The pillow block offers several additional features and benefits.

  • ID Sizes: Available from 12 mm to 50 mm
  • Static Load Capacities: Up to 103,000 N (23,100 lb)
  • Self-Lubricating: Provides oil-free operation
  • Shell Material: Standard is aluminum; stainless steel bearing shells and housings are available
  • Bearing Liner: FrelonGOLD® is standard; Frelon® J & Frelon® W are optional
  • Seal Options: Urethane seals available
  • External Lubrication: Optional feature for added lubrication
  • Temperature Range: -240°C to 204°C (-400°F to 400°F)
  • Vibration Damping: Ensures smooth and quiet operation
  • Precision Machining: Tighter tolerances than industry standards for better accuracy
  • Interchangeability: Size interchangeable with industry standards
  • Custom Modifications: Available upon request; contact an Application Engineer for details
Name Shaft Diameter (mm) Bearing Width (mm) Bearing Length (mm) Static Load (N) Shop Link
PMN12C 12.00 28.00 43.00 7907.00 Shop Now
PMN16C 16.00 35.00 53.00 11870.00 Shop Now
PMN20C 20.00 42.00 60.00 18541.00 Shop Now
PMN25C 25.00 51.00 78.00 29881.00 Shop Now
PMN30C 30.00 60.00 87.00 42026.00 Shop Now
PMN40C 40.00 77.00 108.00 65923.00 Shop Now
PMN50C 50.00 88.00 132.00 103005.00 Shop Now

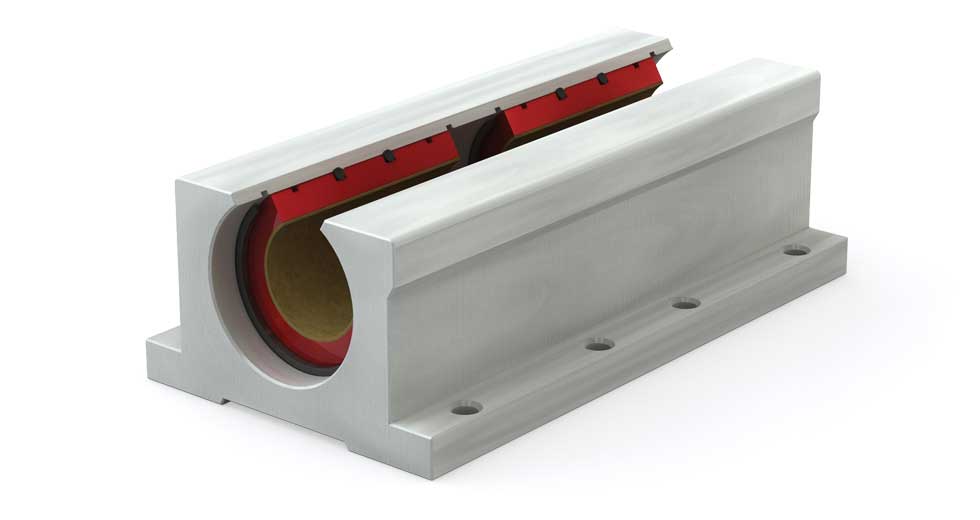

PWN (Inch) Twin Open Plain Linear Bearing Pillow Block

PWN (Inch) Twin Open Plain Linear Bearing Pillow Block

Lee combines a standard Simplicity® Linear Plain Bearing with a self-aligning housing to create the PWN Twin Open Plain Linear Bearing Pillow Block. This is the imperial (inch), open, double-length version of the bearing. The open design allows for fully supported shafts and support rails to be used for greater rigidity, making it a popular choice in North America. The pillow block offers several additional features and benefits.

  • ID Sizes: Available from 1/2” to 2”
  • Static Load Capacities: Up to 50,000 lb (222,000 N)
  • Self-Lubricating: Provides oil-free operation
  • Shell Material: Standard is aluminum; stainless steel bearing shells and housings are available
  • Bearing Liner: FrelonGOLD® is standard; Frelon® J & Frelon® W are optional
  • Seal Options: Available in nitrile rubber, urethane, and viton
  • External Lubrication: Optional feature for added lubrication
  • Temperature Range: -400°F to 400°F (-240°C to 204°C)
  • Vibration Damping: Ensures smooth and quiet operation
  • Precision Machining: Tighter tolerances than industry standards for better accuracy
  • Interchangeability: Size interchangeable with industry standards
  • Custom Modifications: Available upon request; contact an Application Engineer for details
Name Shaft Diameter (in) Bearing Width (in) Bearing Length (in) Static Load (lbs) Shop Link
PWN08 0.500 2.000 3.500 3900 Shop Now
PWN10 0.625 2.500 4.000 5880 Shop Now
PWN12 0.750 2.750 4.500 7620 Shop Now
PWN16 1.000 3.250 6.000 14100 Shop Now
PWN20 1.250 4.000 7.500 20580 Shop Now
PWN24 1.500 4.750 9.000 28200 Shop Now
PWN32 2.000 6.000 10.000 50100 Shop Now

PWNC (Inch) Twin Open Compensated Plain Linear Bearing Pillow Block

PWNC (Inch) Twin Open Compensated Plain Linear Bearing Pillow Block

Lee combines an open compensated Simplicity® Linear Plain Bearing with a self-aligning housing to create the PWNC Twin Open Compensated Plain Linear Bearing Pillow Block. This is the imperial (inch), open, double-length version of the bearing, designed for greater flexibility along imperfect shafts. The open design allows for fully supported shafts and support rails to be used for greater rigidity, making it a popular choice in North America. The pillow block offers several additional features and benefits.

  • ID Sizes: Available from 1/2” to 2”
  • Static Load Capacities: Up to 50,000 lb (222,000 N)
  • Self-Lubricating: Provides oil-free operation
  • Shell Material: Standard is aluminum; stainless steel bearing shells and housings are available
  • Bearing Liner: FrelonGOLD® is standard; Frelon® J & Frelon® W are optional
  • Seal Options: Available in nitrile rubber, urethane, and viton
  • External Lubrication: Optional feature for added lubrication
  • Temperature Range: -400°F to 400°F (-240°C to 204°C)
  • Vibration Damping: Ensures smooth and quiet operation
  • Precision Machining: Tighter tolerances than industry standards for better accuracy
  • Interchangeability: Size interchangeable with industry standards
  • Custom Modifications: Available upon request; contact an Application Engineer for details
Name Shaft Diameter (in) Bearing Width (in) Bearing Length (in) Static Load (lbs) Shop Link
PWN08C 0.500 2.000 3.500 3900 Shop Now
PWN10C 0.625 2.500 4.000 5880 Shop Now
PWN12C 0.750 2.750 4.500 7620 Shop Now
PWN16C 1.000 3.250 6.000 14100 Shop Now
PWN20C 1.250 4.000 7.500 20580 Shop Now
PWN24C 1.500 4.750 9.000 28200 Shop Now
PWN32C 2.000 6.000 10.000 50100 Shop Now

PW (Inch) Twin Closed Linear Plain Bearing Pillow Blocks

PW (Inch) Twin Closed Linear Plain Bearing Pillow Blocks

Lee combines a standard Simplicity® Linear Plain Bearing with a self-aligning housing to create the PW Twin Closed Linear Plain Bearing Pillow Block. This is the imperial (inch), closed, double-length version of the bearing, commonly used in North America. The closed bearing design allows for cost-effective installation using end-supported shafts. The pillow block offers several additional features and benefits.

  • ID Sizes: Available from 1/4” to 2”
  • Static Load Capacities: Up to 50,000 lb (222,000 N)
  • Self-Lubricating: Provides oil-free operation
  • Shell Material: Standard is aluminum; stainless steel bearing shells and housings are available
  • Bearing Liner: FrelonGOLD® is standard; Frelon® J & Frelon® W are optional
  • Seal Options: Available in nitrile rubber, urethane, and viton from ½” ID and up
  • External Lubrication: Optional feature for added lubrication
  • Temperature Range: -400°F to 400°F (-240°C to 204°C)
  • Vibration Damping: Ensures smooth and quiet operation
  • Precision Machining: Tighter tolerances than industry standards for better accuracy
  • Interchangeability: Size interchangeable with industry standards
  • Custom Modifications: Available upon request; contact an Application Engineer for details
Name Shaft Diameter (in) Bearing Width (in) Bearing Length (in) Static Load (lbs) Shop Link
PW04 0.250 1.625 2.500 1200 Shop Now
PW06 0.375 1.750 2.750 2040 Shop Now
PW08 0.500 2.000 3.500 3900 Shop Now
PW10 625.000 2.500 4.000 5880 Shop Now
PW12 0.750 2.750 4.500 7620 Shop Now
PW16 1.000 3.250 6.000 14100 Shop Now
PW20 1.250 4.000 7.500 20580 Shop Now
PW24 1.500 4.750 9.000 28200 Shop Now
PW32 2.000 6.000 10.000 50100 Shop Now
