Linear Plain Bearing Flange Mounts

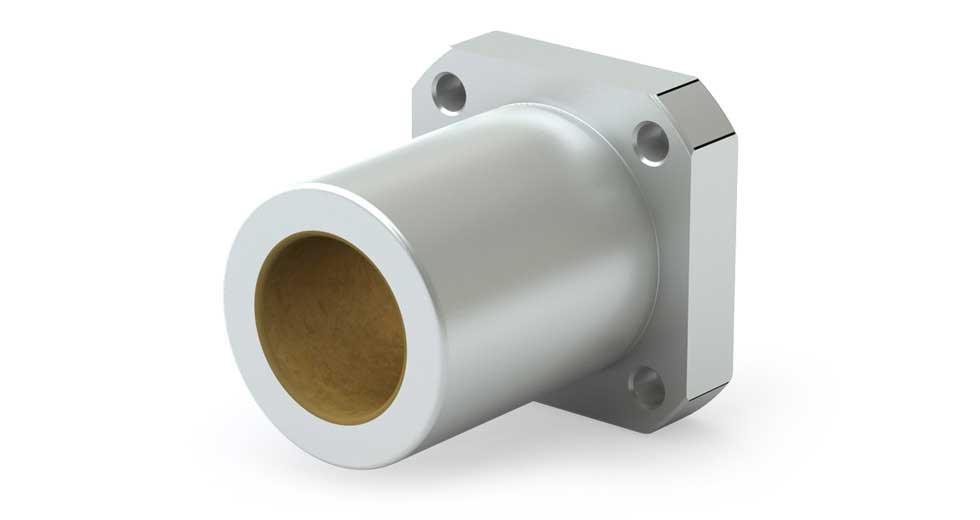

SFPM (Metric) Square Flange Single Bearing

SFPM (Metric) Square Flange Single Bearing

The SFPM Square Flange Single Metric Plain Bearing adheres to the ISO Metric standard for single-length flange bearings, commonly used across Europe. This bearing features a sturdy aluminum housing with a Frelon® liner bonded to the interior diameter, ensuring durability and high performance. The flange, positioned at one end of the bearing, provides enhanced stability and support for a variety of applications. Round flanges are also available for added flexibility.

  • ID Sizes: Ranges from 8 mm to 80 mm
  • Static Load Capacities: Up to 284,000 N (63,900 lbs)
  • Housing Material: Anodized aluminum (standard)
  • Liner: FrelonGOLD® is standard; Optional liners include Frelon J and Frelon W
  • Lubrication: Self-lubricating for maintenance-free operation
  • Temperature Range: -240° C to 204° C (-400° F to 400° F)
  • Additional Features: Effective vibration dampening
  • Customization: Custom modifications available. Please contact an Application Engineer for further details
Name Nominal ID (mm) Nominal OD (mm) Shaft Diameter (mm) Static Load (N) Shop Link
SFPM08 8.02 15.99 8.00 4318.00 Shop Now
SFPM12 12.03 21.99 12.00 8280.00 Shop Now
SFPM16 16.03 25.99 16.00 12429.00 Shop Now
SFPM20 20.04 31.99 20.00 19414.00 Shop Now
SFPM25 25.04 39.99 25.00 31284.00 Shop Now
SFPM30 30.04 46.99 30.00 44008.00 Shop Now
SFPM40 40.05 61.99 40.00 69033.00 Shop Now
SFPM50 50.05 74.99 50.00 107871.00 Shop Now
SFPM60 60.05 89.98 60.00 161796.00 Shop Now
SFPM80 80.05 119.98 80.00 284765.00 Shop Now

SFPMC (Metric) Square Compensated Flange Single Bearing

SFPMC (Metric) Square Compensated Flange Single Bearing

The SFPMC Square Compensated Flange Single Metric Plain Bearing is designed to meet the ISO Metric standards for single-length flange bearings, widely utilized in Europe. Featuring a robust aluminum body and a Frelon® liner securely bonded to the internal diameter, this bearing is engineered for enhanced performance and durability. The flange, positioned at one end, provides additional stability and support, with the option for round flanges as well.

  • ID Sizes: Available from 8 mm to 80 mm
  • Static Load Capacities: Up to 284,000 N (63,900 lbs)
  • Housing Material: Anodized Aluminum (standard)
  • Liner Options: FrelonGOLD® (standard); Frelon J and Frelon W available upon request
  • Lubrication: Self-lubricating, requiring no additional oil
  • Temperature Tolerance: -240° C to 204° C (-400° F to 400° F)
  • Additional Benefits: Effective vibration dampening
  • Customization: Available for specific needs – please contact an Application Engineer for more information
Name Nominal ID (mm) Nominal OD (mm) Shaft Diameter (mm) Static Load (N) Shop Link
SFPM08C 8.02 15.99 8.00 4318.00 Shop Now
SFPM12C 12.03 21.99 12.00 8280.00 Shop Now
SFPM16C 16.03 25.99 16.00 12429.00 Shop Now
SFPM20C 20.04 31.99 20.00 19414.00 Shop Now
SFPM25C 25.04 39.99 25.00 31284.00 Shop Now
SFPM30C 30.04 46.99 30.00 44008.00 Shop Now
SFPM40C 40.05 61.99 40.00 69033.00 Shop Now
SFPM50C 50.05 74.99 50.00 107871.00 Shop Now
SFPM60C 60.05 89.98 60.00 161796.00 Shop Now
SFPM80C 80.05 119.98 80.00 284765.00 Shop Now

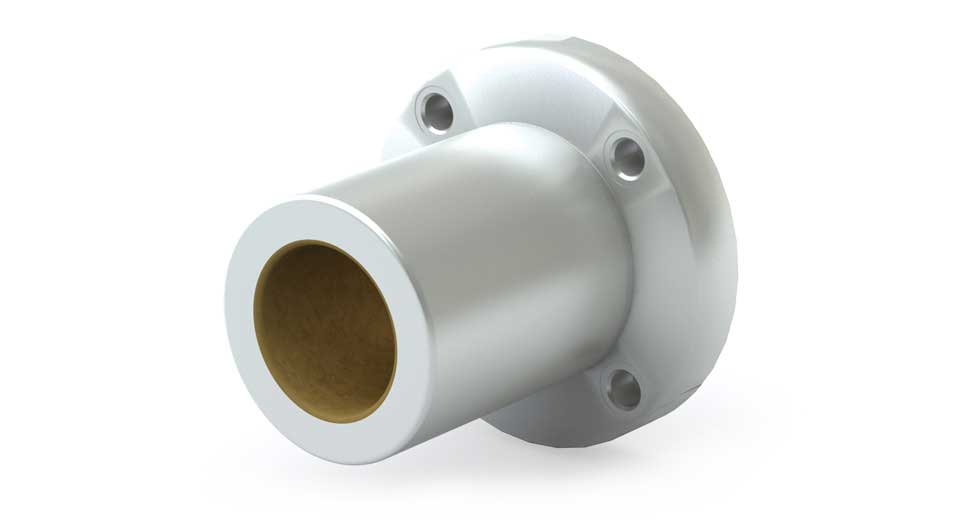

SFPMR (Metric) Round Flange Single Bearing

SFPMR (Metric) Round Flange Single Bearing

The SFPMR Round Flange Single Metric Plain Bearing adheres to ISO Metric standards for single-length flange bearings, predominantly used in Europe. This bearing features a durable aluminum housing with a Frelon® liner bonded to the inner diameter. The round flange at one end enhances the bearing's stability and ease of installation, while square flanges are also available upon request.

  • ID Sizes: Ranges from 8 mm to 80 mm
  • Static Load Capacities: Up to 284,000 N (63,900 lbs)
  • Housing Material: Anodized Aluminum (standard)
  • Liner Options: FrelonGOLD® (standard); Frelon J and Frelon W available on request
  • Lubrication: Self-lubricating for maintenance-free operation
  • Temperature Tolerance: -240° C to 204° C (-400° F to 400° F)
  • Additional Benefits: Effective vibration dampening for improved performance
  • Customization: Available upon request – please reach out to an Application Engineer for tailored solutions
Name Nominal ID (mm) Nominal OD (mm) Shaft Diameter (mm) Static Load (N) Shop Link
SFPMR08 8.02 15.99 8.00 4316.00 Shop Now
SFPMR12 12.03 21.99 12.00 8280.00 Shop Now
SFPMR16 16.03 25.99 16.00 12429.00 Shop Now
SFPMR20 20.04 31.99 20.00 19414.00 Shop Now
SFPMR25 25.04 39.99 25.00 31284.00 Shop Now
SFPMR30 30.04 46.99 30.00 44008.00 Shop Now
SFPMR40 40.05 61.99 40.00 69033.00 Shop Now
SFPMR50 50.05 74.99 50.00 107871.00 Shop Now
SFPMR60 60.05 89.98 60.00 161796.00 Shop Now
SFPMR80 80.05 119.98 80.00 284765.00 Shop Now

SFPMRC (Metric) Round Compensated Flange Single Bearing

SFPMRC (Metric) Round Compensated Flange Single Bearing

The SFPMRC Round Compensated Flange Single Metric Plain Bearing is an ISO Metric single-length flange bearing that excels in precision and durability. Commonly used across Europe, this bearing features a robust aluminum body with a Frelon® liner directly bonded to the inner diameter. Its round flange at one end ensures secure mounting, while compensated design features enhance performance under variable conditions.

  • ID Sizes: Available from 8 mm to 80 mm
  • Static Load Capacities: Up to 284,000 N (63,900 lbs)
  • Housing Material: Anodized Aluminum (standard)
  • Liner Options: FrelonGOLD® (standard); Frelon J and Frelon W available upon request
  • Lubrication: Self-lubricating for a maintenance-free experience
  • Temperature Range: -240° C to 204° C (-400° F to 400° F)
  • Additional Features: Compensated design for enhanced load distribution and performance stability
  • Custom Solutions: Available upon request – contact an Application Engineer for specific needs
Name Nominal ID (mm) Nominal OD (mm) Shaft Diameter (mm) Static Load (N) Shop Link
SFPMR08C 8.02 15.99 8.00 4316.00 Shop Now
SFPMR12C 12.03 21.99 12.00 8280.00 Shop Now
SFPMR16C 16.03 25.99 16.00 12429.00 Shop Now
SFPMR20C 20.04 31.99 20.00 19414.00 Shop Now
SFPMR25C 25.04 39.99 25.00 31284.00 Shop Now
SFPMR30C 30.04 46.99 30.00 44008.00 Shop Now
SFPMR40C 40.05 61.99 40.00 69033.00 Shop Now
SFPMR50C 50.05 74.99 50.00 107871.00 Shop Now
SFPMR60C 60.05 89.98 60.00 161796.00 Shop Now
SFPMR80C 80.05 119.98 80.00 284765.00 Shop Now

SFPJ (JIS) Square Flange Single Bearing

SFPJ (JIS) Square Flange Single Bearing

The SFPJ Square Flange Single Metric Plain Bearing is an ISO Metric single-length bearing designed for demanding applications across Japan and Asia. It features a durable aluminum housing and a Frelon® liner bonded to the internal diameter, ensuring robust performance. The flange is positioned at one end, providing reliable mounting and stability.

  • ID Sizes: Available from 6 mm to 80 mm
  • Static Load Capacities: Up to 241,000 N (54,000 lbs)
  • Housing Material: Standard anodized aluminum
  • Liner Options: FrelonGOLD® (standard); Frelon J and Frelon W available upon request
  • Lubrication: Self-lubricating for a maintenance-free operation
  • Temperature Range: -240° C to 204° C (-400° F to 400° F)
  • Additional Features: Effective vibration damping
  • Custom Solutions: Tailored modifications available – consult an Application Engineer for details
Name Nominal ID (mm) Nominal OD (mm) Shaft Diameter (mm) Static Load (N) Shop Link
SFPJ06 6.02 11.99 6.00 2462.00 Shop Now
SFPJ08 8.02 14.99 8.00 4140.00 Shop Now
SFPJ10 10.02 18.99 10.00 6259.00 Shop Now
SFPJ12 12.03 20.99 12.00 7770.00 Shop Now
SFPJ13 13.03 22.99 13.00 8976.00 Shop Now
SFPJ16 16.03 27.99 16.00 12773.00 Shop Now
SFPJ20 20.04 31.99 20.00 18119.00 Shop Now
SFPJ25 25.04 39.99 25.00 31824.00 Shop Now
SFPJ30 30.04 44.99 30.00 41418.00 Shop Now
SFPJ35 35.04 51.99 35.00 52856.00 Shop Now
SFPJ40 40.05 59.99 40.00 69033.00 Shop Now
SFPJ50 50.05 79.98 50.00 107871.00 Shop Now
SFPJ60 60.05 89.98 60.00 142382.00 Shop Now
SFPJ80 80.05 119.98 80.00 241620.00 Shop Now

SFPJC (JIS) Square Compensated Flange Single Bearing

SFPJC (JIS) Square Compensated Flange Single Bearing

The SFPJC Square Compensated Flange Single Bearing, adhering to JIS Metric standards, is a versatile component predominantly used in Japan and Asia. This single-length bearing features a robust aluminum housing complemented by a bonded Frelon® liner, ensuring durability and performance. The flange is positioned at one end, optimized for stable mounting in various applications.

  • ID Sizes: Ranges from 6 mm to 80 mm
  • Static Load Capacities: Up to 241,000 N (54,000 lbs)
  • Material: Anodized aluminum shell
  • Liner: FrelonGOLD® as standard; Frelon J and Frelon W available upon request
  • Lubrication: Self-lubricating, providing an oil-free operation
  • Temperature Range: Operates from -240° C to 204° C (-400° F to 400° F)
  • Additional Features: Effective vibration damping
  • Custom Options: Modifications available – please consult with an Application Engineer
Name Nominal ID (mm) Nominal OD (mm) Shaft Diameter (mm) Static Load (N) Shop Link
SFPJ06C 6.02 11.99 6.00 2462.00 Shop Now
SFPJ08C 8.02 14.99 8.00 4140.00 Shop Now
SFPJ10C 10.02 18.99 10.00 6259.00 Shop Now
SFPJ12C 12.03 20.99 12.00 7770.00 Shop Now
SFPJ13C 13.03 22.99 13.00 8976.00 Shop Now
SFPJ16C 16.03 27.99 16.00 12773.00 Shop Now
SFPJ20C 20.04 31.99 20.00 18119.00 Shop Now
SFPJ25C 25.04 39.99 25.00 31824.00 Shop Now
SFPJ30C 30.04 44.99 30.00 41418.00 Shop Now
SFPJ35C 35.04 51.99 35.00 52856.00 Shop Now
SFPJ40C 40.05 59.99 40.00 69033.00 Shop Now
SFPJ50C 50.05 79.98 50.00 107871.00 Shop Now
SFPJ60C 60.05 89.98 60.00 142382.00 Shop Now
SFPJ80C 80.05 119.98 80.00 241620.00 Shop Now

SFPJR (JIS) Round Flange Single Bearing

SFPJR (JIS) Round Flange Single Bearing

The SFPJR Round Flange Single Bearing, built to JIS Metric standards, is designed for reliability in linear motion applications, especially in Japan and Asia. This bearing features a robust aluminum construction with a Frelon® liner securely bonded to the inner diameter. The flange is strategically positioned at one end to facilitate mounting and alignment in various setups.

  • ID Sizes: Available from 6 mm to 80 mm
  • Static Load Capacities: Up to 241,000 N (54,000 lbs)
  • Material: Anodized aluminum shell
  • Liner: Standard FrelonGOLD®; Frelon J and Frelon W also offered
  • Lubrication: Self-lubricating, ensuring a maintenance-free operation
  • Temperature Range: Suitable for -240° C to 204° C (-400° F to 400° F)
  • Additional Benefits: Effective vibration damping for enhanced performance
  • Custom Modifications: Available upon request; consult with an Application Engineer for details
Name Nominal ID (mm) Nominal OD (mm) Shaft Diameter (mm) Static Load (N) Shop Link
SFPJR06 6.02 11.99 6.00 2462.00 Shop Now
SFPJR08 8.02 14.99 8.00 4140.00 Shop Now
SFPJR10 10.02 18.99 10.00 6259.00 Shop Now
SFPJR12 12.03 20.99 12.00 7770.00 Shop Now
SFPJR13 13.03 22.99 13.00 8976.00 Shop Now
SFPJR16 16.03 27.99 16.00 12773.00 Shop Now
SFPJR20 20.04 31.99 20.00 18119.00 Shop Now
SFPJR25 25.04 39.99 25.00 31824.00 Shop Now
SFPJR30 30.04 44.99 30.00 41418.00 Shop Now
SFPJR35 35.04 51.99 35.00 52856.00 Shop Now
SFPJR40 40.05 59.99 40.00 69033.00 Shop Now
SFPJR50 50.05 79.98 50.00 107871.00 Shop Now
SFPJR60 60.05 89.98 60.00 142382.00 Shop Now
SFPJR80 80.05 119.98 80.00 241620.00 Shop Now

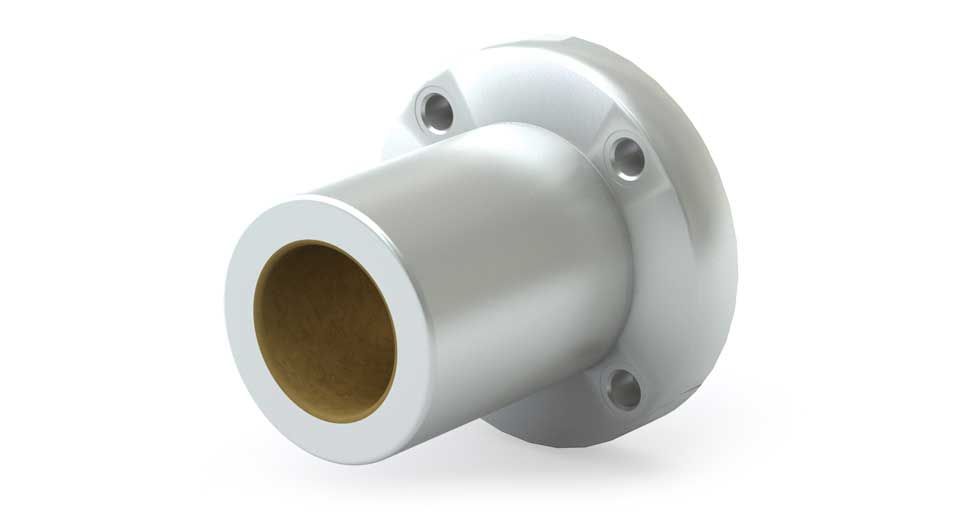

SFPJRC (JIS) Round Compensated Flange Single Bearing

SFPJRC (JIS) Round Compensated Flange Single Bearing

The SFPJRC Round Compensated Flange Single Bearing, crafted to JIS Metric standards, is an ideal choice for precision applications commonly found in Japan and across Asia. This bearing features a durable aluminum body with a Frelon® liner bonded to the inner diameter, providing reliable performance and efficiency. The flange, positioned at one end, ensures easy mounting and alignment within various mechanical assemblies.

  • ID Sizes: Ranges from 6 mm to 80 mm
  • Static Load Capacities: Up to 241,000 N (54,000 lbs)
  • Material: Anodized aluminum shell for enhanced durability
  • Liner: FrelonGOLD® as standard, with Frelon J and Frelon W available as options
  • Lubrication: Self-lubricating for maintenance-free operation
  • Temperature Range: Operates effectively between -240° C and 204° C (-400° F and 400° F)
  • Additional Benefits: Superior vibration damping for smooth operation
  • Custom Modifications: Available upon request. Contact an Application Engineer for more details
Name Nominal ID (mm) Nominal OD (mm) Shaft Diameter (mm) Static Load (N) Shop Link
SFPJR06C 6.02 11.99 6.00 2462.00 Shop Now
SFPJR08C 8.02 14.99 8.00 4140.00 Shop Now
SFPJR10C 10.02 18.99 10.00 6259.00 Shop Now
SFPJR12C 12.03 20.99 12.00 7770.00 Shop Now
SFPJR13C 13.03 22.99 13.00 8976.00 Shop Now
SFPJR16C 16.03 27.99 16.00 12773.00 Shop Now
SFPJR20C 20.04 31.99 20.00 18119.00 Shop Now
SFPJR25C 25.04 39.99 25.00 31824.00 Shop Now
SFPJR30C 30.04 44.99 30.00 41418.00 Shop Now
SFPJR35C 35.04 51.99 35.00 52856.00 Shop Now
SFPJR40C 40.05 59.99 40.00 69033.00 Shop Now
SFPJR50C 50.05 79.98 50.00 107871.00 Shop Now
SFPJR60C 60.05 89.98 60.00 142382.00 Shop Now
SFPJR80C 80.05 119.98 80.00 241620.00 Shop Now

CFPM (Metric) Square Center Flange Double Bearing

CFPM (Metric) Square Center Flange Double Bearing

The CFPM Square Center Flange Double Bearing, conforming to ISO Metric standards, is engineered for double length applications commonly used in Europe. This robust bearing features a central flange mounted on a durable aluminum housing with a Frelon® liner bonded to the inner diameter. Its central flange design ensures precise alignment and stability in various industrial settings.

  • ID Sizes: Available from 8 mm to 60 mm
  • Static Load Capacities: Up to 188,000 N (42,200 lbs)
  • Material: Anodized aluminum shell for enhanced durability
  • Liner: FrelonGOLD® is the standard liner; options include Frelon J and Frelon W
  • Lubrication: Self-lubricating for maintenance-free operation
  • Temperature Range: Effective from -240° C to 204° C (-400° F to 400° F)
  • Additional Benefits: Provides excellent vibration damping for smoother operation
  • Custom Modifications: Available upon request. Contact an Application Engineer for details
Name Nominal ID (mm) Nominal OD (mm) Shaft Diameter (mm) Static Load (N) Shop Link
CFPM08 8.02 15.99 8.00 4179.00 Shop Now
CFPM12 12.03 21.99 12.00 7976.00 Shop Now
CFPM16 16.03 25.99 16.00 14087.00 Shop Now
CFPM20 20.04 31.99 20.00 19071.00 Shop Now
CFPM25 25.04 39.99 25.00 35708.00 Shop Now
CFPM30 30.04 46.99 30.00 45303.00 Shop Now
CFPM40 40.05 61.99 40.00 75939.00 Shop Now
CFPM50 50.05 74.99 50.00 149936.00 Shop Now
CFPM60 60.05 89.98 60.00 188980.00 Shop Now

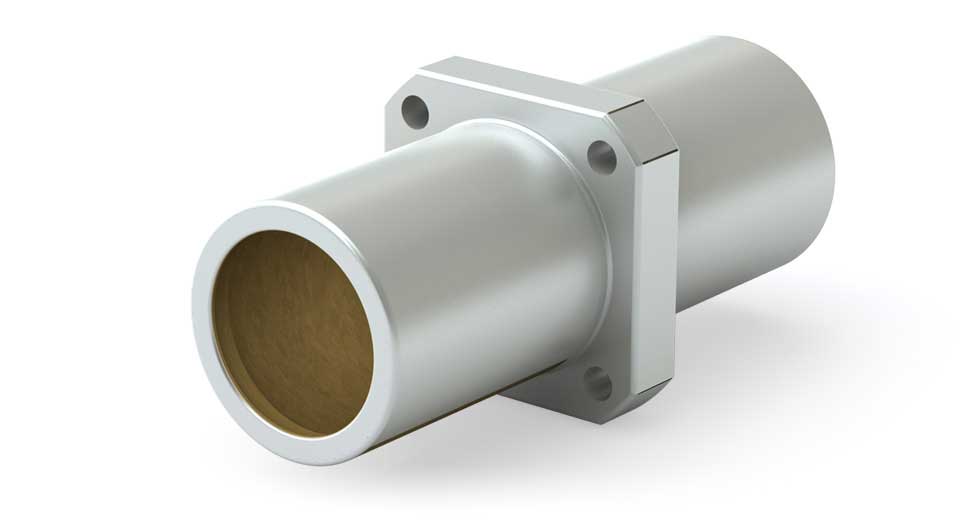

CFPMC (Metric) Square Center Compensated Flange Double Bearing

CFPMC (Metric) Square Center Compensated Flange Double Bearing

The CFPMC Square Center Compensated Flange Double Bearing, adhering to ISO Metric standards, is designed for double length applications with a central flange. Predominantly used in Europe, this bearing features a robust aluminum body with a Frelon® liner bonded directly to the inner diameter. The compensated flange design provides enhanced alignment and reduces potential misalignment issues.

  • ID Sizes: Available from 8 mm to 60 mm
  • Static Load Capacities: Up to 188,000 N (42,200 lbs)
  • Material: Anodized aluminum shell for increased strength
  • Liner: FrelonGOLD® is the standard; Frelon J and Frelon W are also available
  • Lubrication: Self-lubricating, ensuring oil-free operation
  • Temperature Range: Operates efficiently from -240° C to 204° C (-400° F to 400° F)
  • Additional Benefits: Provides excellent vibration dampening for smoother performance
  • Custom Modifications: Available upon request. Contact an Application Engineer for tailored solutions
Name Nominal ID (mm) Nominal OD (mm) Shaft Diameter (mm) Static Load (N) Shop Link
CFPM08C 8.02 15.99 8.00 4179.00 Shop Now
CFPM12C 12.03 21.99 12.00 7976.00 Shop Now
CFPM16C 16.03 25.99 16.00 14087.00 Shop Now
CFPM20C 20.04 31.99 20.00 19071.00 Shop Now
CFPM25C 25.04 39.99 25.00 35708.00 Shop Now
CFPM30C 30.04 46.99 30.00 45303.00 Shop Now
CFPM40C 40.05 61.99 40.00 75939.00 Shop Now
CFPM50C 50.05 74.99 50.00 149936.00 Shop Now
CFPM60C 60.05 89.98 60.00 188980.00 Shop Now

CFPMR (Metric) Round Center Flange Double Bearing

CFPMR (Metric) Round Center Flange Double Bearing

The CFPMR Round Center Flange Double Bearing is designed to ISO Metric standards for double length applications with a central flange. Commonly used in Europe, this bearing features a durable aluminum body with a Frelon® liner bonded to the inner diameter. The centrally positioned flange enhances stability and alignment.

  • ID Sizes: Available from 8 mm to 60 mm
  • Static Load Capacities: Up to 188,000 N (42,200 lbs)
  • Material: Anodized aluminum shell for robust performance
  • Liner: FrelonGOLD® is the standard; optional Frelon J and Frelon W liners available
  • Lubrication: Self-lubricating, ensuring maintenance-free operation
  • Temperature Range: Effective from -240° C to 204° C (-400° F to 400° F)
  • Additional Features: Excellent vibration dampening properties
  • Customization: Custom modifications available. Contact an Application Engineer for details
Name Nominal ID (mm) Nominal OD (mm) Shaft Diameter (mm) Static Load (N) Shop Link
CFPMR08 8.02 15.99 8.00 4179.00 Shop Now
CFPMR12 12.03 21.99 12.00 7976.00 Shop Now
CFPMR16 16.03 25.99 25.00 14087.00 Shop Now
CFPMR20 20.04 31.99 20.00 19071.00 Shop Now
CFPMR25 25.04 39.99 25.00 35708.00 Shop Now
CFPMR30 30.04 46.99 30.00 45303.00 Shop Now
CFPMR40 40.05 61.99 40.00 75939.00 Shop Now
CFPMR50 50.05 74.99 50.00 149936.00 Shop Now
CFPMR60 60.05 89.98 60.00 188980.00 Shop Now

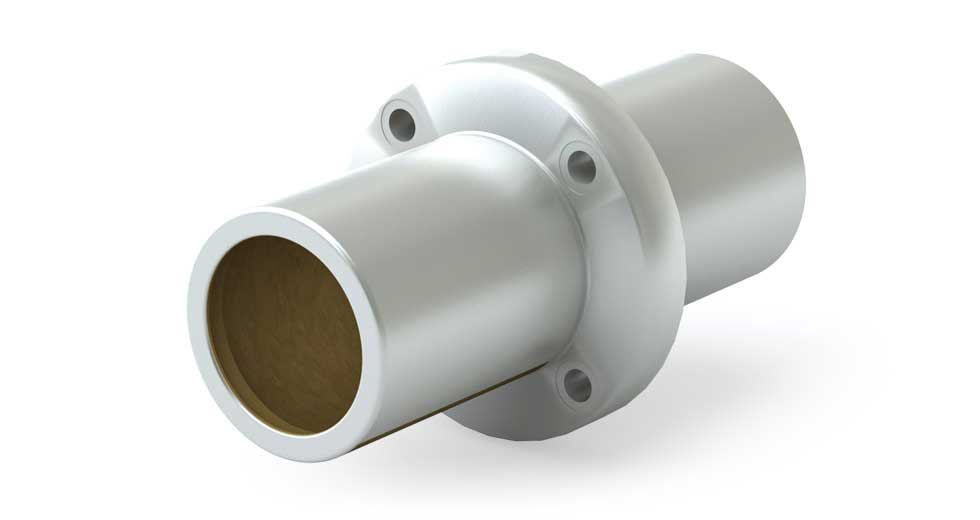

CFPMRC (Metric) Round Center Compensated Flange Double Bearing

CFPMRC (Metric) Round Center Compensated Flange Double Bearing

The CFPMRC Round Center Compensated Flange Double Bearing, designed to ISO Metric standards, is a high-performance solution for double length applications. Commonly used in Europe, this bearing features a robust aluminum body with a Frelon® liner bonded to the inner diameter. The central flange provides enhanced alignment, while the compensated design offers improved load distribution and reduced stress.

  • ID Sizes: Available from 8 mm to 60 mm
  • Static Load Capacities: Up to 188,000 N (42,200 lbs)
  • Material: Anodized aluminum shell for durability
  • Liner: FrelonGOLD® is standard; optional Frelon J and Frelon W liners available
  • Lubrication: Self-lubricating for maintenance-free operation
  • Temperature Range: Suitable for temperatures from -240° C to 204° C (-400° F to 400° F)
  • Features: Excellent vibration dampening properties
  • Customization: Custom modifications available. Contact an Application Engineer for details
Name Nominal ID (mm) Nominal OD (mm) Shaft Diameter (mm) Static Load (N) Shop Link
CFPMR08C 8.02 15.99 8.00 4179.00 Shop Now
CFPMR12C 12.03 21.99 12.00 7976.00 Shop Now
CFPMR16C 16.03 25.99 25.00 14087.00 Shop Now
CFPMR20C 20.04 31.99 20.00 19071.00 Shop Now
CFPMR25C 25.04 39.99 25.00 35708.00 Shop Now
CFPMR30C 30.04 46.99 30.00 45303.00 Shop Now
CFPMR40C 40.05 61.99 40.00 75939.00 Shop Now
CFPMR50C 50.05 74.99 50.00 149936.00 Shop Now
CFPMR60C 60.05 89.98 60.00 188980.00 Shop Now

CFPJ (JIS) Square Center Flange Double Bearing

CFPJ (JIS) Square Center Flange Double Bearing

The CFPJ Square Center Flange Double Bearing is designed to JIS Metric standards, typically used in Japan and other parts of Asia. This bearing features a robust aluminum body with a Frelon® liner bonded directly to the inner diameter. The flange is positioned at the center of the bearing for enhanced stability and alignment.

  • ID Sizes: Available from 6 mm to 60 mm
  • Static Load Capacities: Up to 188,000 N (42,200 lbs)
  • Material: Anodized aluminum shell for strength and durability
  • Liner: FrelonGOLD® is standard; optional Frelon J and Frelon W liners available
  • Lubrication: Self-lubricating for maintenance-free operation
  • Temperature Range: Effective in temperatures ranging from -240° C to 204° C (-400° F to 400° F)
  • Features: Superior vibration dampening properties
  • Customization: Custom modifications available. Contact an Application Engineer for more information
Name Nominal ID (mm) Nominal OD (mm) Shaft Diameter (mm) Static Load (N) Shop Link
CFPJ06 6.02 11.99 6.00 3110.00 Shop Now
CFPJ08 8.02 14.99 8.00 4140.00 Shop Now
CFPJ10 10.02 18.99 10.00 6043.00 Shop Now
CFPJ12 12.03 20.99 12.00 7770.00 Shop Now
CFPJ13 13.03 22.99 13.00 8976.00 Shop Now
CFPJ16 16.03 27.99 16.00 13803.00 Shop Now
CFPJ20 20.04 31.99 20.00 18982.00 Shop Now
CFPJ25 25.04 39.99 25.00 45303.00 Shop Now
CFPJ30 30.04 44.99 30.00 45303.00 Shop Now
CFPJ35 35.04 51.99 35.00 60410.00 Shop Now
CFPJ40 40.05 59.99 40.00 75939.00 Shop Now
CFPJ50 50.05 79.98 50.00 151015.00 Shop Now
CFPJ60 60.05 89.98 60.00 188980.00 Shop Now

CFPJC (JIS) Square Center Compensated Flange Double Bearing

CFPJC (JIS) Square Center Compensated Flange Double Bearing

The CFPJC Square Center Compensated Flange Double Bearing is designed to JIS Metric standards, commonly used in Japan and other parts of Asia. This bearing is compensated and features a durable aluminum body with a Frelon® liner bonded directly to the inner diameter. The flange is positioned at the center of the bearing, ensuring enhanced stability and alignment.

  • ID Sizes: Available from 6 mm to 60 mm
  • Static Load Capacities: Up to 188,000 N (42,200 lbs)
  • Material: Anodized aluminum shell for strength and durability
  • Liner: FrelonGOLD® is standard; optional Frelon J and Frelon W liners available
  • Lubrication: Self-lubricating for maintenance-free operation
  • Temperature Range: Effective in temperatures ranging from -240° C to 204° C (-400° F to 400° F)
  • Features: Superior vibration dampening properties
  • Customization: Custom modifications available. Contact an Application Engineer for more information
Name Nominal ID (mm) Nominal OD (mm) Shaft Diameter (mm) Static Load (N) Shop Link
CFPJ06C 6.02 11.99 6.00 3110.00 Shop Now
CFPJ08C 8.02 14.99 8.00 4140.00 Shop Now
CFPJ10C 10.02 18.99 10.00 6043.00 Shop Now
CFPJ12C 12.03 20.99 12.00 7770.00 Shop Now
CFPJ13C 13.03 22.99 13.00 8976.00 Shop Now
CFPJ16C 16.03 27.99 16.00 13803.00 Shop Now
CFPJ20C 20.04 31.99 20.00 18982.00 Shop Now
CFPJ25C 25.04 39.99 25.00 45303.00 Shop Now
CFPJ30C 30.04 44.99 30.00 45303.00 Shop Now
CFPJ35C 35.04 51.99 35.00 60410.00 Shop Now
CFPJ40C 40.05 59.99 40.00 75939.00 Shop Now
CFPJ50C 50.05 79.98 50.00 151015.00 Shop Now
CFPJ60C 60.05 89.98 60.00 188980.00 Shop Now

CFPJR (JIS) Round Center Flange Double Bearing

CFPJR (JIS) Round Center Flange Double Bearing

The CFPJR Round Center Flange Double Bearing is designed to JIS Metric standards and is commonly used in Japan and other regions of Asia. This bearing features a robust aluminum body with a Frelon® liner bonded directly to the inner diameter. The flange is located at the center of the bearing, providing enhanced support and stability.

  • ID Sizes: Available from 6 mm to 60 mm
  • Static Load Capacities: Up to 188,000 N (42,200 lbs)
  • Material: Anodized aluminum shell for durability
  • Liner: FrelonGOLD® is standard; optional Frelon J and Frelon W liners available
  • Lubrication: Self-lubricating for maintenance-free operation
  • Temperature Range: Operates effectively from -240° C to 204° C (-400° F to 400° F)
  • Features: Excellent vibration dampening properties
  • Customization: Custom modifications available. Contact an Application Engineer for more details
Name Nominal ID (mm) Nominal OD (mm) Shaft Diameter (mm) Static Load (N) Shop Link
CFPJR06 6.02 11.99 6.00 3110.00 Shop Now
CFPJR08 8.02 14.99 8.00 4140.00 Shop Now
CFPJR10 10.02 18.99 10.00 6043.00 Shop Now
CFPJR12 12.03 20.99 12.00 7770.00 Shop Now
CFPJR13 13.03 22.99 13.00 8976.00 Shop Now
CFPJR16 16.03 27.99 16.00 13803.00 Shop Now
CFPJR20 20.04 31.99 20.00 18982.00 Shop Now
CFPJR25 25.04 39.99 25.00 35600.00 Shop Now
CFPJR30 30.04 44.99 30.00 45303.00 Shop Now
CFPJR35 35.04 51.99 35.00 60410.00 Shop Now
CFPJR40 40.05 59.99 40.00 75939.00 Shop Now
CFPJR50 50.05 79.98 50.00 151015.00 Shop Now
CFPJR60 60.05 89.98 60.00 188980.00 Shop Now

CFPJRC (JIS) Round Center Compensated Flange Double Bearing

CFPJRC (JIS) Round Center Compensated Flange Double Bearing

The CFPJRC Round Center Compensated Flange Double Bearing is designed to JIS Metric standards, featuring compensated running clearance. Commonly used in Japan and other Asian regions, this bearing offers a robust aluminum body with a Frelon® liner bonded directly to the inner diameter. The flange is located at one end of the bearing for added stability.

  • ID Sizes: Available from 6 mm to 60 mm
  • Static Load Capacities: Up to 188,000 N (42,200 lbs)
  • Material: Anodized aluminum shell for durability
  • Liner: FrelonGOLD® is standard; optional Frelon J and Frelon W liners available
  • Lubrication: Self-lubricating for maintenance-free operation
  • Temperature Range: Operates effectively from -240° C to 204° C (-400° F to 400° F)
  • Features: Effective vibration dampening
  • Customization: Custom modifications available. Contact an Application Engineer for more details
Name Nominal ID (mm) Nominal OD (mm) Shaft Diameter (mm) Static Load (N) Shop Link
CFPJR06C 6.02 11.99 6.00 3110.00 Shop Now
CFPJR08C 8.02 14.99 8.00 4140.00 Shop Now
CFPJR10C 10.02 18.99 10.00 6043.00 Shop Now
CFPJR12C 12.03 20.99 12.00 7770.00 Shop Now
CFPJR13C 13.03 22.99 13.00 8976.00 Shop Now
CFPJR16C 16.03 27.99 16.00 13803.00 Shop Now
CFPJR20C 20.04 31.99 20.00 18982.00 Shop Now
CFPJR25C 25.04 39.99 25.00 35600.00 Shop Now
CFPJR30C 30.04 44.99 30.00 45303.00 Shop Now
CFPJR35C 35.04 51.99 35.00 60410.00 Shop Now
CFPJR40C 40.05 59.99 40.00 75939.00 Shop Now
CFPJR50C 50.05 79.98 50.00 151015.00 Shop Now
CFPJR60C 60.05 89.98 60.00 188980.00 Shop Now

DFPM (Metric) Square Flange Double Bearing

DFPM (Metric) Square Flange Double Bearing

The DFPM Square Flange Double Bearing is designed to ISO Metric standards, providing a robust solution for double length applications commonly used in Europe. This bearing features a durable aluminum body with a Frelon® liner bonded directly to the inner diameter. The flange is positioned at one end of the bearing for added support and stability.

  • ID Sizes: Available from 8 mm to 60 mm
  • Static Load Capacities: Up to 188,000 N (42,200 lbs)
  • Material: Anodized aluminum shell for enhanced durability
  • Liner: FrelonGOLD® is standard; optional Frelon J and Frelon W liners available
  • Lubrication: Self-lubricating for maintenance-free operation
  • Temperature Range: Operates effectively from -240° C to 204° C (-400° F to 400° F)
  • Features: Effective vibration dampening
  • Customization: Custom modifications available. Contact an Application Engineer for more details
Name Nominal ID (mm) Nominal OD (mm) Shaft Diameter (mm) Static Load (N) Shop Link
DFPM08 8.02 15.99 8.00 4179.00 Shop Now
DFPM12 12.03 21.99 12.00 7976.00 Shop Now
DFPM16 16.03 25.99 16.00 14087.00 Shop Now
DFPM20 20.04 31.99 20.00 19071.00 Shop Now
DFPM25 25.04 39.99 25.00 35708.00 Shop Now
DFPM30 30.04 46.99 30.00 45303.00 Shop Now
DFPM40 40.05 61.99 40.00 75939.00 Shop Now
DFPM50 50.05 74.99 50.00 149936.00 Shop Now
DFPM60 60.05 89.98 60.00 188980.00 Shop Now

DFPMC (Metric) Square Center Compensated Flange Double Bearing

DFPMC (Metric) Square Center Compensated Flange Double Bearing

The DFPMC Square Center Compensated Flange Double Bearing is designed to ISO Metric standards, offering a compensated running clearance for enhanced performance in double length applications commonly found in Europe. This bearing features a robust aluminum body with a Frelon® liner bonded directly to the inner diameter, with the flange positioned at the center of the bearing for optimal alignment and support.

  • ID Sizes: Available from 8 mm to 60 mm
  • Static Load Capacities: Up to 188,000 N (42,200 lbs)
  • Material: Anodized aluminum shell for durability
  • Liner: FrelonGOLD® is standard; optional Frelon J and Frelon W liners available
  • Lubrication: Self-lubricating for maintenance-free operation
  • Temperature Range: Effective from -240° C to 204° C (-400° F to 400° F)
  • Features: Compensated running clearance and effective vibration dampening
  • Customization: Custom modifications available. Contact an Application Engineer for more details
Name Nominal ID (mm) Nominal OD (mm) Shaft Diameter (mm) Static Load (N) Shop Link
DFPM08C 8.02 15.99 8.00 4179.00 Shop Now
DFPM12C 12.03 21.99 12.00 7976.00 Shop Now
DFPM16C 16.03 25.99 16.00 14087.00 Shop Now
DFPM20C 20.04 31.99 20.00 19071.00 Shop Now
DFPM25C 25.04 39.99 25.00 35708.00 Shop Now
DFPM30C 30.04 46.99 30.00 45303.00 Shop Now
DFPM40C 40.05 61.99 40.00 75939.00 Shop Now
DFPM50C 50.05 74.99 50.00 149936.00 Shop Now
DFPM60C 60.05 89.98 60.00 188980.00 Shop Now

DFPMR (Metric) Round Flange Double Bearing

DFPMR (Metric) Round Flange Double Bearing

The DFPMR Round Flange Double Bearing is designed to ISO Metric standards for double length applications and is predominantly used in Europe. This bearing features a robust aluminum body with a Frelon® liner bonded directly to the inner diameter. The flange is positioned at one end of the bearing, providing secure mounting and support.

  • ID Sizes: Available from 8 mm to 60 mm
  • Static Load Capacities: Up to 188,000 N (42,200 lbs)
  • Material: Anodized aluminum shell for enhanced durability
  • Liner: FrelonGOLD® is standard; optional Frelon J and Frelon W liners available
  • Lubrication: Self-lubricating for maintenance-free operation
  • Temperature Range: Operates effectively from -240° C to 204° C (-400° F to 400° F)
  • Features: Includes vibration dampening for improved performance
  • Customization: Custom modifications available. Contact an Application Engineer for further details
Name Nominal ID (mm) Nominal OD (mm) Shaft Diameter (mm) Static Load (N) Shop Link
DFPMR08 8.02 15.99 8.00 4179.00 Shop Now
DFPMR12 12.03 21.99 12.00 7976.00 Shop Now
DFPMR16 16.03 25.99 16.00 14087.00 Shop Now
DFPMR20 20.04 31.99 20.00 19071.00 Shop Now
DFPMR25 25.04 39.99 25.00 35708.00 Shop Now
DFPMR30 30.04 46.99 30.00 45303.00 Shop Now
DFPMR40 40.05 61.99 40.00 75939.00 Shop Now
DFPMR50 50.05 74.99 50.00 149936.00 Shop Now
DFPMR60 60.05 89.98 60.00 188980.00 Shop Now

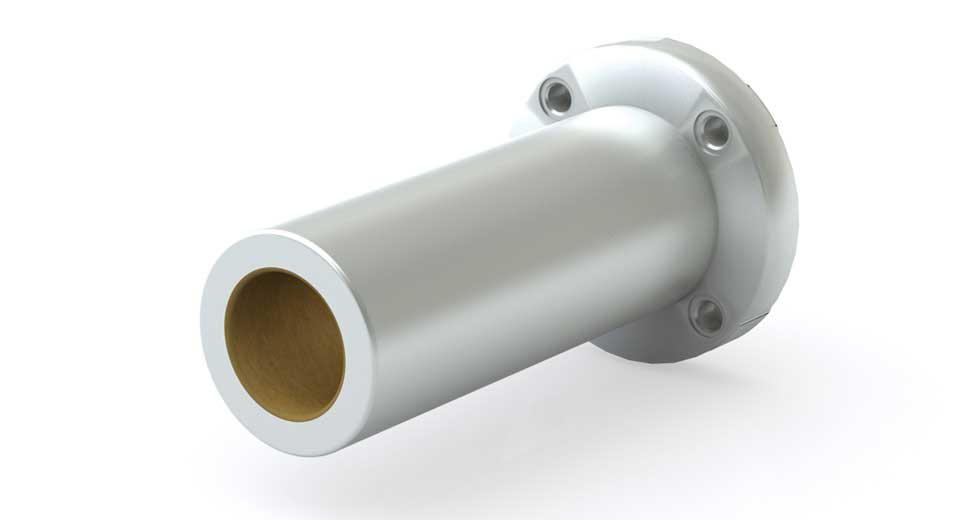

DFPMRC (Metric) Round Compensated Flange Double Bearing

DFPMRC (Metric) Round Compensated Flange Double Bearing

The DFPMRC Round Compensated Flange Double Bearing is designed for ISO Metric double length applications and is commonly used in Europe. This bearing features a robust aluminum body with a Frelon® liner bonded directly to the inner diameter. It is compensated for running clearance to ensure optimal performance. The flange is positioned at one end of the bearing for secure mounting and support.

  • ID Sizes: Available from 8 mm to 60 mm
  • Static Load Capacities: Up to 188,000 N (42,200 lbs)
  • Material: Anodized aluminum shell for enhanced durability
  • Liner: FrelonGOLD® is standard; optional Frelon J and Frelon W liners available
  • Lubrication: Self-lubricating for maintenance-free operation
  • Temperature Range: Operates effectively from -240° C to 204° C (-400° F to 400° F)
  • Features: Includes vibration dampening for improved performance
  • Customization: Custom modifications available. Contact an Application Engineer for further details
Name Nominal ID (mm) Nominal OD (mm) Shaft Diameter (mm) Static Load (N) Shop Link
DFPMR08C 8.02 15.99 8.00 4179.00 Shop Now
DFPMR12C 12.03 21.99 12.00 7976.00 Shop Now
DFPMR16C 16.03 25.99 16.00 14087.00 Shop Now
DFPMR20C 20.04 31.99 20.00 19071.00 Shop Now
DFPMR25C 25.04 39.99 25.00 35708.00 Shop Now
DFPMR30C 30.04 46.99 30.00 45303.00 Shop Now
DFPMR40C 40.05 61.99 40.00 75939.00 Shop Now
DFPMR50C 50.05 74.99 50.00 149936.00 Shop Now
DFPMR60C 60.05 89.98 60.00 188980.00 Shop Now

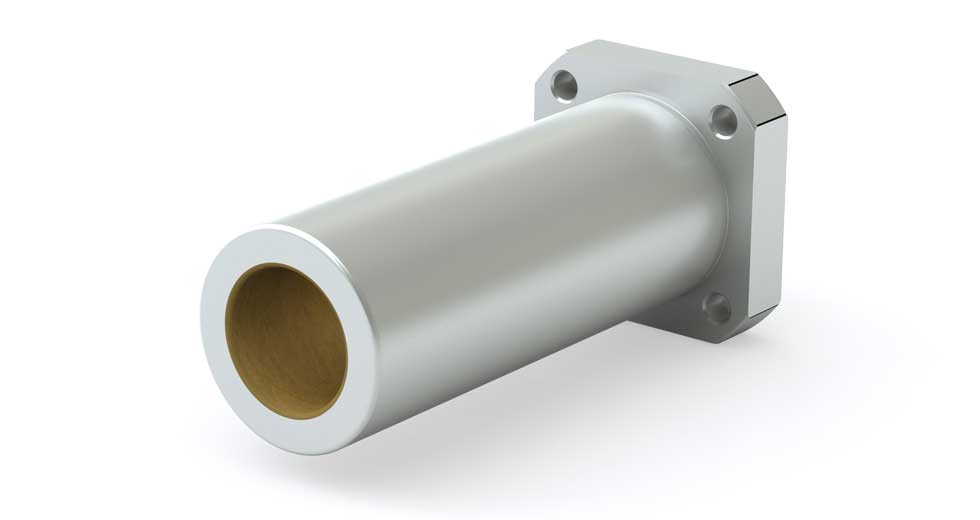

DFPJ (JIS) Square Flange Double Bearing

DFPJ (JIS) Square Flange Double Bearing

The DFPJ Square Flange Double Bearing is a JIS Metric double length bearing commonly used in Japan and Asia. This bearing features a sturdy aluminum body with a Frelon® liner bonded directly to the inner diameter. The flange is positioned at one end of the bearing, ensuring robust support and alignment.

  • ID Sizes: Available from 6 mm to 60 mm
  • Static Load Capacities: Up to 188,000 N (42,200 lbs)
  • Material: Anodized aluminum shell for strength and durability
  • Liner: FrelonGOLD® is standard; optional Frelon J and Frelon W liners available
  • Lubrication: Self-lubricating for maintenance-free operation
  • Temperature Range: Operates effectively from -240° C to 204° C (-400° F to 400° F)
  • Features: Includes vibration dampening for enhanced performance
  • Flange Options: Available with square or round flanges
  • Customization: Custom modifications available. Contact an Application Engineer for details
Name Nominal ID (mm) Nominal OD (mm) Shaft Diameter (mm) Static Load (N) Shop Link
DFPJ06 6.02 11.99 6.00 3110.00 Shop Now
DFPJ08 8.02 14.99 8.00 4140.00 Shop Now
DFPJ10 10.02 18.99 10.00 6043.00 Shop Now
DFPJ12 12.03 20.99 12.00 7770.00 Shop Now
DFPJ13 13.03 22.99 13.00 8976.00 Shop Now
DFPJ16 16.03 27.99 16.00 13803.00 Shop Now
DFPJ20 20.04 31.99 20.00 18982.00 Shop Now
DFPJ25 25.04 39.99 25.00 35600.00 Shop Now
DFPJ30 30.04 44.99 30.00 45303.00 Shop Now
DFPJ35 35.04 51.99 35.00 60410.00 Shop Now
DFPJ40 40.05 59.99 40.00 75939.00 Shop Now
DFPJ50 50.05 79.98 50.00 151015.00 Shop Now
DFPJ60 60.05 89.98 60.00 188980.00 Shop Now

DFPJC (JIS) Square Center Compensated Flange Double Bearing

DFPJC (JIS) Square Center Compensated Flange Double Bearing

The DFPJC Square Center Compensated Flange Double Bearing is a JIS Metric double length bearing designed for applications in Japan and Asia. It features a compensated running clearance on the ID and is constructed with a robust aluminum body and a Frelon® liner bonded directly to the inner diameter. The flange is positioned at one end of the bearing, providing solid support and alignment.

  • ID Sizes: Available from 6 mm to 60 mm
  • Static Load Capacities: Up to 188,000 N (42,200 lbs)
  • Material: Anodized aluminum shell for durability
  • Liner: FrelonGOLD® is the standard; optional Frelon J and Frelon W liners available
  • Lubrication: Self-lubricating for maintenance-free operation
  • Temperature Range: Effective from -240° C to 204° C (-400° F to 400° F)
  • Features: Vibration dampening for improved performance
  • Flange Options: Available with square or round flanges
  • Customization: Custom modifications available. Contact an Application Engineer for details
Name Nominal ID (mm) Nominal OD (mm) Shaft Diameter (mm) Static Load (N) Shop Link
DFPJ06C 6.02 11.99 6.00 3110.00 Shop Now
DFPJ08C 8.02 14.99 8.00 4140.00 Shop Now
DFPJ10C 10.02 18.99 10.00 6043.00 Shop Now
DFPJ12C 12.03 20.99 12.00 7770.00 Shop Now
DFPJ13C 13.03 22.99 13.00 8976.00 Shop Now
DFPJ16C 16.03 27.99 16.00 13803.00 Shop Now
DFPJ20C 20.04 31.99 20.00 18982.00 Shop Now
DFPJ25C 25.04 39.99 25.00 35600.00 Shop Now
DFPJ30C 30.04 44.99 30.00 45303.00 Shop Now
DFPJ35C 35.04 51.99 35.00 60410.00 Shop Now
DFPJ40C 40.05 59.99 40.00 75939.00 Shop Now
DFPJ50C 50.05 79.98 50.00 151015.00 Shop Now
DFPJ60C 60.05 89.98 60.00 188980.00 Shop Now

DFPJR (JIS) Round Flange Double Bearing

DFPJR (JIS) Round Flange Double Bearing

The DFPJR Round Flange Double Bearing is a JIS Metric double length bearing, commonly used in Japan and Asia. It features a durable aluminum body and a Frelon® liner bonded directly to the inner diameter. The flange is positioned at one end of the bearing, offering strong support and stability.

  • ID Sizes: Available from 6 mm to 60 mm
  • Static Load Capacities: Up to 188,000 N (42,200 lbs)
  • Material: Anodized aluminum shell for enhanced durability
  • Liner: FrelonGOLD® is standard; Frelon J and Frelon W are optional
  • Lubrication: Self-lubricating for maintenance-free operation
  • Temperature Range: Suitable for temperatures from -240° C to 204° C (-400° F to 400° F)
  • Features: Provides vibration dampening for improved performance
  • Flange Options: Available with round or square flanges
  • Customization: Custom modifications available. Contact an Application Engineer for details
Name Nominal ID (mm) Nominal OD (mm) Shaft Diameter (mm) Static Load (N) Shop Link
DFPJR06 6.02 11.99 6.00 3110.00 Shop Now
DFPJR08 8.02 14.99 8.00 4140.00 Shop Now
DFPJR10 10.02 18.99 10.00 6043.00 Shop Now
DFPJR12 12.03 20.99 12.00 7770.00 Shop Now
DFPJR13 13.03 22.99 13.00 8976.00 Shop Now
DFPJR16 16.03 27.99 16.00 13803.00 Shop Now
DFPJR20 20.04 31.99 20.00 18982.00 Shop Now
DFPJR25 25.04 39.99 25.00 35600.00 Shop Now
DFPJR30 30.04 44.99 30.00 45303.00 Shop Now
DFPJR35 35.04 51.99 35.00 60410.00 Shop Now
DFPJR40 40.05 59.99 40.00 75939.00 Shop Now
DFPJR50 50.05 79.98 50.00 151015.00 Shop Now
DFPJR60 60.05 89.98 60.00 188980.00 Shop Now

DFPJRC (JIS) Round Compensated Flange Double Bearing

DFPJRC (JIS) Round Compensated Flange Double Bearing

The DFPJRC Round Compensated Flange Double Bearing is a JIS Metric bearing designed for precision applications in Japan and Asia. It features a double length, compensated running clearance on the inner diameter and a robust aluminum body with a bonded Frelon® liner. The flange is positioned at one end of the bearing, providing reliable support and alignment.

  • ID Sizes: Available from 6 mm to 60 mm
  • Static Load Capacities: Up to 188,000 N (42,200 lbs)
  • Material: Anodized aluminum shell for long-lasting durability
  • Liner: FrelonGOLD® is standard; Frelon J and Frelon W are optional
  • Lubrication: Self-lubricating for maintenance-free operation
  • Temperature Range: Suitable for temperatures from -240° C to 204° C (-400° F to 400° F)
  • Features: Provides vibration dampening for enhanced performance
  • Flange Options: Available with round or square flanges
  • Customization: Custom modifications available. Contact an Application Engineer for details
Name Nominal ID (mm) Nominal OD (mm) Shaft Diameter (mm) Static Load (N) Shop Link
DFPJR06C 6.02 11.99 6.00 3110.00 Shop Now
DFPJR08C 8.02 14.99 8.00 4140.00 Shop Now
DFPJR10C 10.02 18.99 10.00 6043.00 Shop Now
DFPJR12C 12.03 20.99 12.00 7770.00 Shop Now
DFPJR13C 13.03 22.99 13.00 8976.00 Shop Now
DFPJR16C 16.03 27.99 16.00 13803.00 Shop Now
DFPJR20C 20.04 31.99 20.00 18982.00 Shop Now
DFPJR25C 25.04 39.99 25.00 35600.00 Shop Now
DFPJR30C 30.04 44.99 30.00 45303.00 Shop Now
DFPJR35C 35.04 51.99 35.00 60410.00 Shop Now
DFPJR40C 40.05 59.99 40.00 75939.00 Shop Now
DFPJR50C 50.05 79.98 50.00 151015.00 Shop Now
DFPJR60C 60.05 89.98 60.00 188980.00 Shop Now
