Linear Ball Bearings and Bushings

IP Linear Ball Bearing - Closed, Inch

IP (Inch) Closed Linear Ball Bearing

Our Linear Ball Bearings feature heat-treated alloy steel shells for enhanced durability, resin retainer polymer cages that effectively reduce noise, and a low coefficient of friction for smooth, high-speed linear motion. These bearings offer advantages with cantilevered loads over plain linear bearings due to the latter facing the 2:1 binding rule. They are size-interchangeable with products from other manufacturers and with Simplicity plain linear bearings.

  • ID Sizes: Available from 1/4" to 2”
  • Static Load Capacities: Up to 1700 lb (7900 N)
  • Dynamic Load Capacities: Up to 850 lb (3800 N)
  • Interchangeable: Size interchangeable with industry standards and Lee's Simplicity series
  • Low Coefficient of Friction: Ensures smooth operation
  • Heat Treated Alloy Steel Shell: Provides durability
  • Resin Retainer: Reduces noise
  • Temperature Range: -4/+176°F (-20/+80°C)
  • Double Seals: Included as standard at no additional cost
Name Nominal ID (in) Nominal OD (in) Shaft Diameter (in) MAX Dynamic Load Rating (lbs) Shop Link
IP04G 0.250 0.500 0.250 46.000 Shop Now
IP06G 0.375 0.375 0.625 50.000 Shop Now
IP08G 0.500 0.875 0.500 114.000 Shop Now
IP10G 0.625 1.125 0.625 174.000 Shop Now
IP12G 0.750 1.250 0.750 193.000 Shop Now
IP16G 1.000 1.563 1.000 220.000 Shop Now
IP20G 1.250 2.000 1.250 352.000 Shop Now
IP24G 1.500 2.375 1.500 490.000 Shop Now
IP32G 2.000 3.000 2.000 858.000 Shop Now

IP-AJ (Inch) Closed Adjustable Linear Ball Bearing

IP-AJ (Inch) Closed Adjustable Linear Ball Bearing

The IP-AJ Closed Adjustable Linear Ball Bearing is an imperial (inch) version of our popular linear ball bearing line, featuring an adjustable design for precision applications. Commonly used in North America and the UK, this bearing is size interchangeable with other manufacturers' products and the Simplicity series plain bearings, providing flexibility in various linear motion systems.

  • ID Sizes: Available from 1/2" to 2”
  • Static Load Capacities: Up to 1700 lb (7900 N)
  • Dynamic Load Capacities: Up to 850 lb (3800 N)
  • Interchangeable: Size interchangeable with industry standards and Lee's Simplicity series
  • Low Coefficient of Friction: Ensures smooth and efficient operation
  • Heat Treated Alloy Steel Shell: Provides enhanced durability
  • Resin Retainer: Reduces noise for quieter operation
  • Temperature Range: -4/+176°F (-20/+80°C)
  • Double Seals: Included as standard at no additional cost
Name Nominal ID (in) Nominal OD (in) Shaft Diameter (in) MAX Dynamic Load Rating (lbs) Shop Link
IP08G-AJ 0.500 0.875 0.500 114.000 Shop Now
IP10G-AJ 0.625 1.125 0.625 114.000 Shop Now
IP12G-AJ 0.750 1.250 0.750 193.000 Shop Now
IP16G-AJ 1.000 1.563 1.000 220.000 Shop Now
IP20G-AJ 1.250 2.000 1.250 352.000 Shop Now
IP24G-AJ 1.500 2.375 1.500 490.000 Shop Now
IP32G-AJ 2.000 3.000 2.000 858.000 Shop Now

IP-OP (Inch) Open Linear Ball Bearing

IP-OP (Inch) Open Linear Ball Bearing

The IP-OP Open Linear Ball Bearing is the standard open version of our linear ball bearing line, designed to fit imperial (inch) measurements. Commonly used in North America and the UK, this bearing is size interchangeable with other manufacturers' products and the Simplicity series plain bearings, providing versatility and ease of integration in various linear motion applications.

  • ID Sizes: Available from 1/2" to 2”
  • Static Load Capacities: Up to 1700 lb (7900 N)
  • Dynamic Load Capacities: Up to 850 lb (3800 N)
  • Interchangeable: Size interchangeable with industry standards and Lee's Simplicity series
  • Low Coefficient of Friction: Ensures smooth operation
  • Heat Treated Alloy Steel Shell: Provides durability
  • Resin Retainer: Reduces noise for quieter operation
  • Temperature Range: -4/+176°F (-20/+80°C)
  • Double Seals: Included as standard at no additional cost
Name Nominal ID (in) Nominal OD (in) Shaft Diameter (in) MAX Dynamic Load Rating (lbs) Shop Link
IP08G-OP 0.500 0.875 0.500 114.000 Shop Now
IP10G-OP 0.625 1.125 0.625 174.000 Shop Now
IP12G-OP 0.750 1.250 0.750 193.000 Shop Now
IP16G-OP 1.000 1.565 1.000 220.000 Shop Now
IP20G-OP 1.250 2.000 1.250 352.000 Shop Now
IP24G-OP 1.500 2.375 1.500 490.000 Shop Now
IP32G-OP 2.000 3.000 2.000 858.000 Shop Now

IP-W (Inch) Closed Wide Linear Ball Bearing

IP-W (Inch) Closed Wide Linear Ball Bearing

The IP-W Closed Wide Linear Ball Bearing is a double-length, imperial (inch) version of our standard linear ball bearing, ideal for applications requiring greater load capacity and stability. This bearing is commonly used in North America and the UK and is size interchangeable with other manufacturers, making it a versatile choice for various linear motion applications.

  • ID Sizes: Available from 1/4" to 2”
  • Static Load Capacities: Up to 3500 lb (15,900 N)
  • Dynamic Load Capacities: Up to 1300 lb (6,000 N)
  • Static Moment Capacities: Up to 290 ft-lb (399 Nm)
  • Interchangeable: Size interchangeable with industry standards
  • Low Coefficient of Friction: Ensures smooth operation
  • Heat Treated Alloy Steel Shell: Provides enhanced durability
  • Resin Retainer: Reduces noise for quieter operation
  • Temperature Range: -4/+176°F (-20/+80°C)
  • Double Seals: Included as standard at no additional cost
Name Nominal ID (in) Nominal OD (in) Shaft Diameter (in) MAX Dynamic Load Rating (lbs) Shop Link
IP08GW 0.500 0.875 0.500 182.000 Shop Now
IP10GW 0.625 1.125 0.625 276.000 Shop Now
IP12GW 0.750 1.250 0.750 307.000 Shop Now
IP16GW 1.000 1.563 1.000 352.000 Shop Now
IP20GW 1.250 2.000 1.250 562.000 Shop Now
IP24GW 1.500 2.375 1.500 771.000 Shop Now
IP32GW 2.000 3.000 2.000 1366.000 Shop Now

EP (Metric) Closed Linear Ball Bearing

EP (Metric) Closed Linear Ball Bearing

The EP Closed Linear Ball Bearing is a widely recognized choice for linear motion applications, known for its reliability and performance. This is the closed, ISO Metric version, commonly used in Europe. It is size interchangeable with other manufacturers' products and the Simplicity series plain bearings, making it a versatile option for various applications.

  • ID Sizes: Available from 5 mm to 50 mm
  • Static Load Capacities: Up to 7900 N (1700 lb)
  • Dynamic Load Capacities: Up to 3800 N (850 lb)
  • Interchangeable: Size interchangeable with industry standards and Lee's Simplicity series
  • Low Coefficient of Friction: Ensures smooth operation
  • Heat Treated Alloy Steel Shell: Provides durability
  • Resin Retainer: Reduces noise for quieter operation
  • Temperature Range: -20/+80°C (-4/+176°F)
  • Double Seals: Included as standard at no additional cost
Name Nominal ID (mm) Nominal OD (mm) Shaft Diameter (mm) MAX Dynamic Load Rating (N) Shop Link
EP05G 5.00 12.00 5.00 200.00 Shop Now
EP08G 8.00 16.00 8.00 260.00 Shop Now
EP10G 10.00 19.00 10.00 372.00 Shop Now
EP12G 12.00 22.00 12.00 410.00 Shop Now
EP16G 16.00 26.00 16.00 770.00 Shop Now
EP20G 20.00 32.00 20.00 860.00 Shop Now
EP25G 25.00 40.00 25.00 980.00 Shop Now
EP30G 30.00 47.00 30.00 1560.00 Shop Now
EP40G 40.00 62.00 40.00 2150.00 Shop Now
EP50G 50.00 75.00 50.00 7930.00 Shop Now

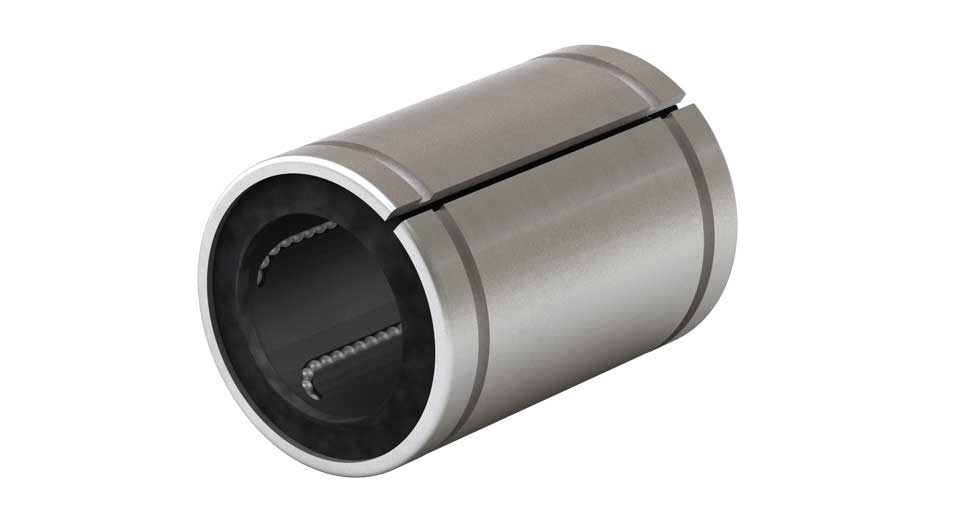

EP-AJ (Metric) Adjustable Linear Ball Bearing

EP-AJ (Metric) Adjustable Linear Ball Bearing

The EP-AJ Adjustable Linear Ball Bearing is a reliable choice for most linear motion applications. This ISO Metric version is commonly used in Europe and is size interchangeable with other manufacturers' products as well as the Simplicity series plain bearings, offering flexibility in various applications.

  • ID Sizes: Available from 12 mm to 50 mm
  • Static Load Capacities: Up to 7900 N (1700 lb)
  • Dynamic Load Capacities: Up to 3800 N (850 lb)
  • Interchangeable: Size interchangeable with industry standards and Lee's Simplicity series
  • Low Coefficient of Friction: Ensures smooth and efficient operation
  • Heat Treated Alloy Steel Shell: Provides enhanced durability
  • Resin Retainer: Reduces noise for quieter operation
  • Temperature Range: -20/+80°C (-4/+176°F)
  • Double Seals: Included as standard at no additional cost
Name Nominal ID (mm) Nominal OD (mm) Shaft Diameter (mm) MAX Dynamic Load Rating (N) Shop Link
EP12G-AJ 12.00 22.00 12.00 410.00 Shop Now
EP16G-AJ 16.00 26.00 16.00 770.00 Shop Now
EP20G-AJ 20.00 32.00 20.00 860.00 Shop Now
EP25G-AJ 25.00 40.00 25.00 980.00 Shop Now
EP30G-AJ 30.00 47.00 30.00 1560.00 Shop Now
EP40G-AJ 40.00 62.00 40.00 2150.00 Shop Now
EP50G-AJ 50.00 75.00 50.00 3820.00 Shop Now

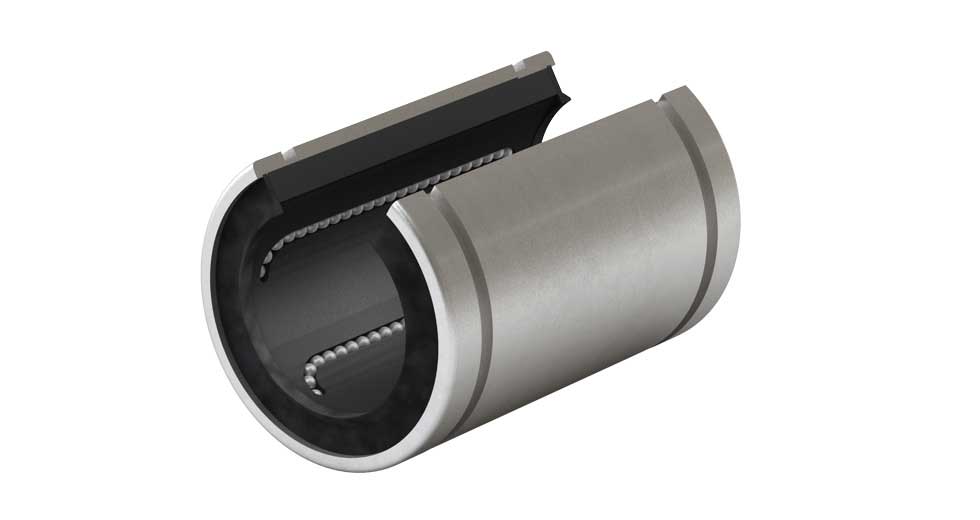

EP-OP (Metric) Open Linear Ball Bearing

EP-OP (Metric) Open Linear Ball Bearing

The EP-OP Open Linear Ball Bearing is the ISO Metric version, designed for a wide range of linear motion applications. This open version is size interchangeable with other manufacturers' products as well as the Simplicity series plain bearings, offering versatility and ease of integration.

  • ID Sizes: Available from 12 mm to 50 mm
  • Static Load Capacities: Up to 7900 N (1700 lb)
  • Dynamic Load Capacities: Up to 3800 N (850 lb)
  • Interchangeable: Size interchangeable with industry standards and Lee's Simplicity series
  • Low Coefficient of Friction: Ensures smooth operation
  • Heat Treated Alloy Steel Shell: Provides durability
  • Resin Retainer: Reduces noise for quieter operation
  • Temperature Range: -20/+80°C (-4/+176°F)
  • Double Seals: Included as standard at no additional cost
Name Nominal ID (mm) Nominal OD (mm) Shaft Diameter (mm) MAX Dynamic Load Rating (N) Shop Link
EP12G-OP 12.00 22.00 12.00 410.00 Shop Now
EP16G-OP 16.00 26.00 16.00 770.00 Shop Now
EP20G-OP 20.00 32.00 20.00 860.00 Shop Now
EP25G-OP 25.00 40.00 25.00 980.00 Shop Now
EP30G-OP 30.00 47.00 30.00 1560.00 Shop Now
EP40G-OP 40.00 62.00 40.00 2150.00 Shop Now
EP50G-OP 50.00 75.00 50.00 3820.00 Shop Now

EP-W (Metric) Closed Wide Linear Ball Bearing

EP-W (Metric) Closed Wide Linear Ball Bearing

The EP-W Closed Wide Linear Ball Bearing is the double-length, ISO Metric version of our standard linear ball bearing, designed for applications that require greater load capacity and stability. This bearing is widely used in Europe and is size interchangeable with other manufacturers, making it a versatile choice for various linear motion applications.

  • ID Sizes: Available from 8 mm to 50 mm
  • Static Load Capacities: Up to 15,900 N (3500 lb)
  • Dynamic Load Capacities: Up to 6,000 N (1300 lb)
  • Static Moment Capacities: Up to 399 Nm (290 ft-lb)
  • Interchangeable: Size interchangeable with industry standards
  • Low Coefficient of Friction: Ensures smooth operation
  • Heat Treated Alloy Steel Shell: Provides enhanced durability
  • Resin Retainer: Reduces noise for quieter operation
  • Temperature Range: -20/+80°C (-4/+176°F)
  • Double Seals: Included as standard at no additional cost
Name Nominal ID (mm) Nominal OD (mm) Shaft Diameter (mm) MAX Dynamic Load Rating (N) Shop Link
EP12GW 12.00 22.00 12.00 813.00 Shop Now
EP16GW 16.00 26.00 16.00 921.00 Shop Now
EP20GW 20.00 32.00 20.00 1370.00 Shop Now
EP25GW 25.00 40.00 25.00 1570.00 Shop Now
EP30GW 30.00 47.00 30.00 2500.00 Shop Now
EP40GW 40.00 62.00 40.00 3430.00 Shop Now
EP50GW 50.00 75.00 50.00 6080.00 Shop Now

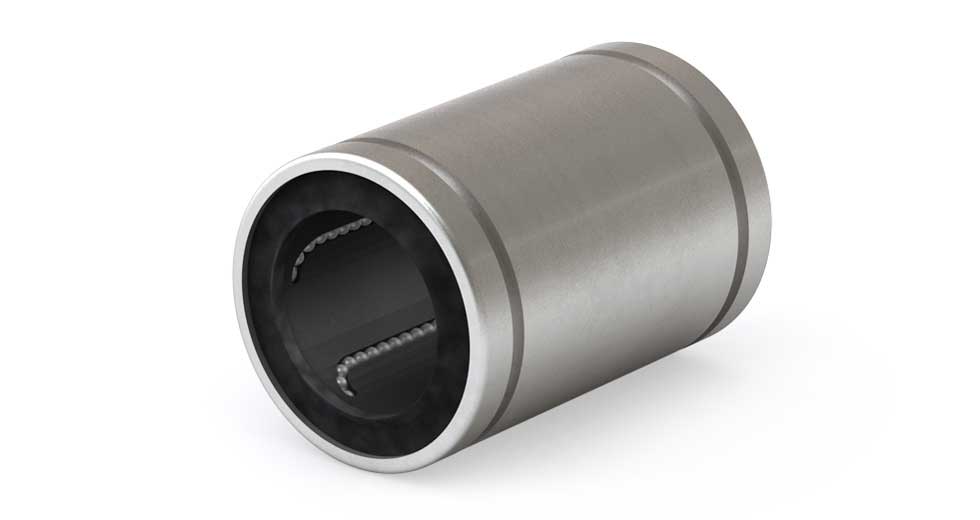

JP (JIS) Closed Linear Ball Bearing

JP (JIS) Closed Linear Ball Bearing

The JP Closed Linear Ball Bearing is the JIS Metric version of our standard linear ball bearing, ideal for a wide range of linear motion applications. Commonly used in Asia, this bearing is size interchangeable with other manufacturers' products as well as the Simplicity series plain bearings, providing versatility and ease of integration.

  • ID Sizes: Available from 8 mm to 50 mm
  • Static Load Capacities: Up to 7900 N (1700 lb)
  • Dynamic Load Capacities: Up to 3800 N (850 lb)
  • Interchangeable: Size interchangeable with industry standards and Lee's Simplicity series
  • Low Coefficient of Friction: Ensures smooth operation
  • Heat Treated Alloy Steel Shell: Provides durability
  • Resin Retainer: Reduces noise for quieter operation
  • Temperature Range: -20/+80°C (-4/+176°F)
  • Double Seals: Included as standard at no additional cost
Name Nominal ID (mm) Nominal OD (mm) Shaft Diameter (mm) MAX Dynamic Load Rating (N) Shop Link
JP08G 8.00 15.00 8.00 260.00 Shop Now
JP10G 10.00 19.00 10.00 370.00 Shop Now
JP12G 12.00 21.00 12.00 410.00 Shop Now
JP13G 13.00 23.00 13.00 500.00 Shop Now
JP16G 16.00 28.00 16.00 770.00 Shop Now
JP20G 20.00 32.00 20.00 860.00 Shop Now
JP25G 25.00 40.00 25.00 980.00 Shop Now
JP30G 30.00 45.00 30.00 1560.00 Shop Now
JP35G 35.00 52.00 35.00 1660.00 Shop Now
JP40G 40.00 60.00 40.00 2150.00 Shop Now
JP50G 50.00 80.00 50.00 3820.00 Shop Now

JP-AJ (JIS) Adjustable Linear Ball Bearing

JP-AJ (JIS) Adjustable Linear Ball Bearing

The JP-AJ Adjustable Linear Ball Bearing is an ideal choice for linear motion applications requiring an adjustable bearing. This JIS Metric version is commonly used in Asia and is size interchangeable with other manufacturers' products as well as the Simplicity series plain bearings, offering flexibility in various applications.

  • ID Sizes: Available from 12 mm to 50 mm
  • Static Load Capacities: Up to 7900 N (1700 lb)
  • Dynamic Load Capacities: Up to 3800 N (850 lb)
  • Interchangeable: Size interchangeable with industry standards and Lee's Simplicity series
  • Low Coefficient of Friction: Ensures smooth and efficient operation
  • Heat Treated Alloy Steel Shell: Provides enhanced durability
  • Resin Retainer: Reduces noise for quieter operation
  • Temperature Range: -20/+80°C (-4/+176°F)
  • Double Seals: Included as standard at no additional cost
Name Nominal ID (mm) Nominal OD (mm) Shaft Diameter (mm) MAX Dynamic Load Rating (N) Shop Link
JP12G-AJ 12.00 21.00 12.00 410.00 Shop Now
JP13G-AJ 13.00 23.00 13.00 500.00 Shop Now
JP16G-AJ 16.00 28.00 16.00 770.00 Shop Now
JP20G-AJ 20.00 32.00 20.00 860.00 Shop Now
JP25G-AJ 25.00 40.00 25.00 980.00 Shop Now
JP30G-AJ 30.00 45.00 30.00 1560.00 Shop Now
JP35G-AJ 35.00 52.00 35.00 1660.00 Shop Now
JP40G-AJ 40.00 60.00 40.00 2150.00 Shop Now
JP50G-AJ 50.00 80.00 50.00 3820.00 Shop Now

JP-OP (JIS) Open Linear Ball Bearing

JP-OP (JIS) Open Linear Ball Bearing

The JP-OP Open Linear Ball Bearing is a reliable choice for linear motion applications requiring an open bearing design. This JIS Metric open version is commonly used in Asia and is size interchangeable with other manufacturers' products as well as the Simplicity series plain bearings, providing flexibility and compatibility in various applications.

  • ID Sizes: Available from 12 mm to 50 mm
  • Static Load Capacities: Up to 7900 N (1700 lb)
  • Dynamic Load Capacities: Up to 3800 N (850 lb)
  • Interchangeable: Size interchangeable with industry standards and Lee's Simplicity series
  • Low Coefficient of Friction: Ensures smooth and efficient operation
  • Heat Treated Alloy Steel Shell: Provides enhanced durability
  • Resin Retainer: Reduces noise for quieter operation
  • Temperature Range: -20/+80°C (-4/+176°F)
  • Double Seals: Included as standard at no additional cost
Name Nominal ID (mm) Nominal OD (mm) Shaft Diameter (mm) MAX Dynamic Load Rating (N) Shop Link
JP12G-OP 12.00 21.00 12.00 410.00 Shop Now
JP13G-OP 13.00 23.00 13.00 500.00 Shop Now
JP16G-OP 16.00 28.00 16.00 770.00 Shop Now
JP20G-OP 20.00 32.00 20.00 860.00 Shop Now
JP25G-OP 25.00 40.00 25.00 980.00 Shop Now
JP30G-OP 30.00 45.00 30.00 1560.00 Shop Now
JP35G-OP 35.00 52.00 35.00 1660.00 Shop Now
JP40G-OP 40.00 60.00 40.00 2150.00 Shop Now
JP50G-OP 50.00 80.00 50.00 3820.00 Shop Now

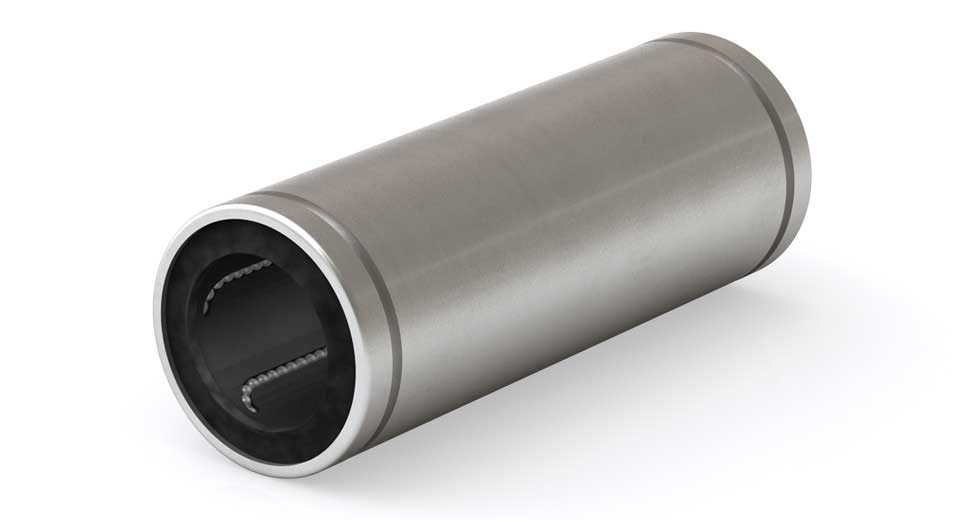

JP-W (JIS) Closed Wide Linear Ball Bearing

JP-W (JIS) Closed Wide Linear Ball Bearing

The JP-W Closed Wide Linear Ball Bearing is a double-length JIS Metric version of our standard linear ball bearing, designed for applications requiring greater load capacity and stability. Commonly used in Japan and the rest of Asia, this bearing is size interchangeable with other manufacturers, making it a versatile choice for various linear motion applications.

  • ID Sizes: Available from 8 mm to 50 mm
  • Static Load Capacities: Up to 15,900 N (3500 lb)
  • Dynamic Load Capacities: Up to 6,000 N (1300 lb)
  • Static Moment Capacities: Up to 399 Nm (290 ft-lb)
  • Interchangeable: Size interchangeable with industry standards
  • Low Coefficient of Friction: Ensures smooth operation
  • Heat Treated Alloy Steel Shell: Provides enhanced durability
  • Resin Retainer: Reduces noise for quieter operation
  • Temperature Range: -20/+80°C (-4/+176°F)
  • Double Seals: Included as standard at no additional cost
Name Nominal ID (mm) Nominal OD (mm) Shaft Diameter (mm) MAX Dynamic Load Rating (N) Shop Link
JP08GW 8.00 15.00 8.00 430.00 Shop Now
JP12GW 12.00 15.00 12.00 657.00 Shop Now
JP16GW 16.00 28.00 16.00 1230.00 Shop Now
JP20GW 20.00 32.00 20.00 1400.00 Shop Now
JP25GW 25.00 40.00 25.00 1560.00 Shop Now
JP30GW 30.00 45.00 30.00 2490.00 Shop Now
JP40GW 40.00 60.00 40.00 3430.00 Shop Now
JP50GW 50.00 80.00 50.00 6080.00 Shop Now

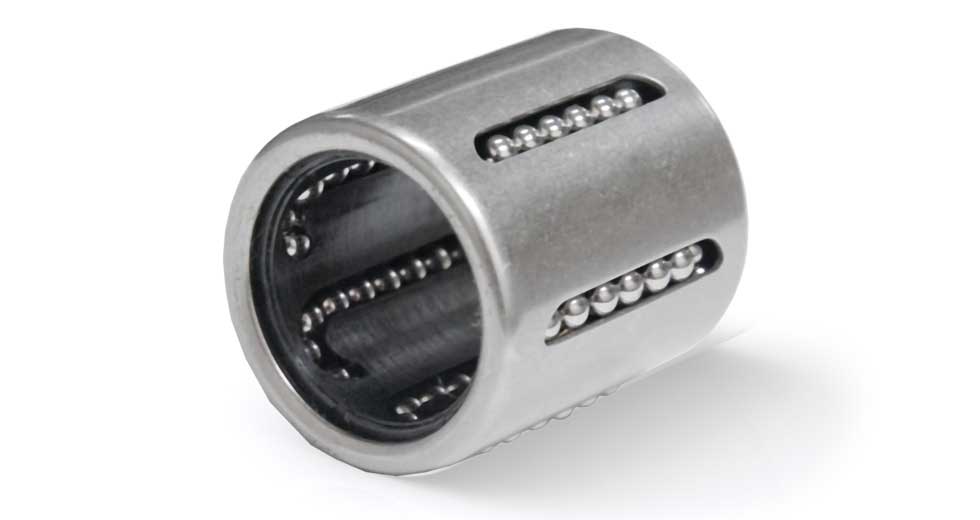

KHP (Metric) Compact Thin Wall Ball Bearing

KHP (Metric) Compact Thin Wall Ball Bearing

The KHP Compact Thin Wall Ball Bearing is a reliable choice for linear motion applications, particularly in space-constrained environments. This closed, ISO Metric version is commonly used in Europe and is size interchangeable with other manufacturers' products as well as the Simplicity series plain bearings, making it a versatile option for various applications.

  • ID Sizes: Available from 6 mm to 50 mm
  • Static Load Capacities: Up to 6300 N (1400 lb)
  • Dynamic Load Capacities: Up to 5500 N (1200 lb)
  • Interchangeable: Size interchangeable with industry standards and Lee's Simplicity series
  • Low Coefficient of Friction: Ensures smooth operation
  • Heat Treated Alloy Steel Shell: Provides durability
  • Resin Retainer: Reduces noise for quieter operation
  • Temperature Range: -20/+80°C (-4/+176°F)
  • Double Seals: Included as standard at no additional cost
Name Nominal ID (mm) Nominal OD (mm) Shaft Diameter (mm) MAX Dynamic Load Rating (N) Shop Link
KHP06 6.00 12.00 6.00 400.00 Shop Now
KHP08 8.00 15.00 8.00 435.00 Shop Now
KHP10 10.00 17.00 10.00 500.00 Shop Now
KHP12 12.00 19.00 12.00 620.00 Shop Now
KHP14 14.00 21.00 14.00 620.00 Shop Now
KHP16 16.00 24.00 16.00 800.00 Shop Now
KHP20 20.00 28.00 20.00 950.00 Shop Now
KHP25 25.00 35.00 25.00 1990.00 Shop Now
KHP30 30.00 40.00 30.00 2880.00 Shop Now
KHP40 40.00 52.00 40.00 4400.00 Shop Now
KHP50 50.00 62.00 50.00 5500.00 Shop Now

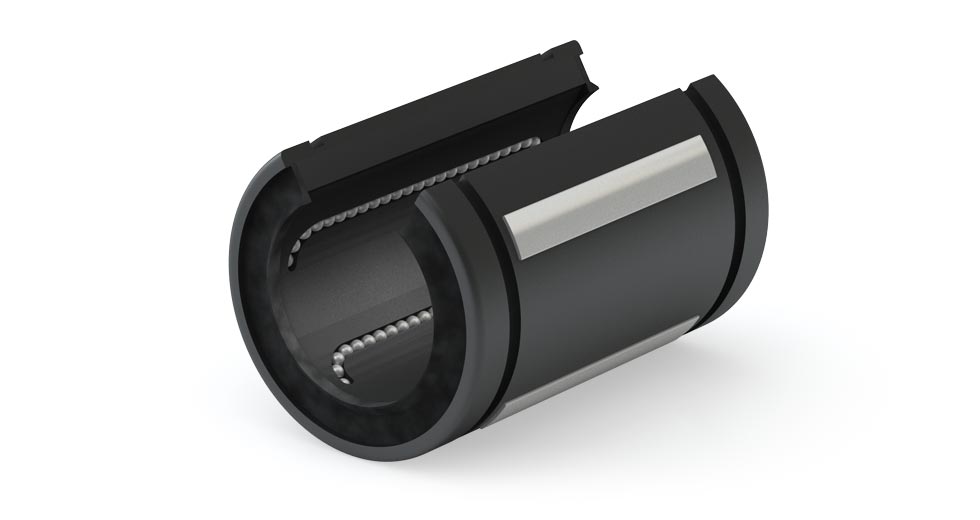

IPS-OP (Inch) Open Self-Aligning Linear Ball Bearing

IPS-OP (Inch) Open Self-Aligning Linear Ball Bearing

The IPS-OP Open Self-Aligning Linear Ball Bearing is an ideal solution for linear motion applications where misalignment may occur. This imperial (inch) version is open and self-aligning, with unique floating steel plates that allow the bearing to rock inside the housing, compensating for any misalignment within the application. It is size interchangeable with other manufacturers' products as well as the Simplicity series plain bearings, offering flexibility in various applications.

  • ID Sizes: Available from 1/4" to 2”
  • Static Load Capacities: Up to 2500 lb (11,000 N)
  • Dynamic Load Capacities: Up to 2200 lb (9700 N)
  • Interchangeable: Size interchangeable with industry standards and Lee's Simplicity series
  • Low Coefficient of Friction: Ensures smooth operation
  • Outer Shell: Made of high-strength polymer for durability
  • Ball Bearing Raceway Inserts: Hardened steel for extended life
  • Temperature Range: -4/+176°F (-20/+80°C)
  • Double Seals: Included as standard at no additional cost
Name Nominal ID (in) Nominal OD (in) Shaft Diameter (in) MAX Dynamic Load Rating (lbs) Shop Link
IPS08-OP 0.500 0.875 0.500 230.000 Shop Now
IPS10-OP 0.625 1.125 0.625 400.000 Shop Now
IPS12-OP 0.750 0.125 0.750 470.000 Shop Now
IPS16-OP 1.000 1.563 1.000 850.000 Shop Now
IPS20-OP 1.250 2.000 1.250 1230.000 Shop Now
IPS24-OP 1.500 2.375 1.500 1480.000 Shop Now
IPS32-OP 2.000 3.000 2.000 2430.000 Shop Now
