Linear Ball Bearing Pillow Blocks

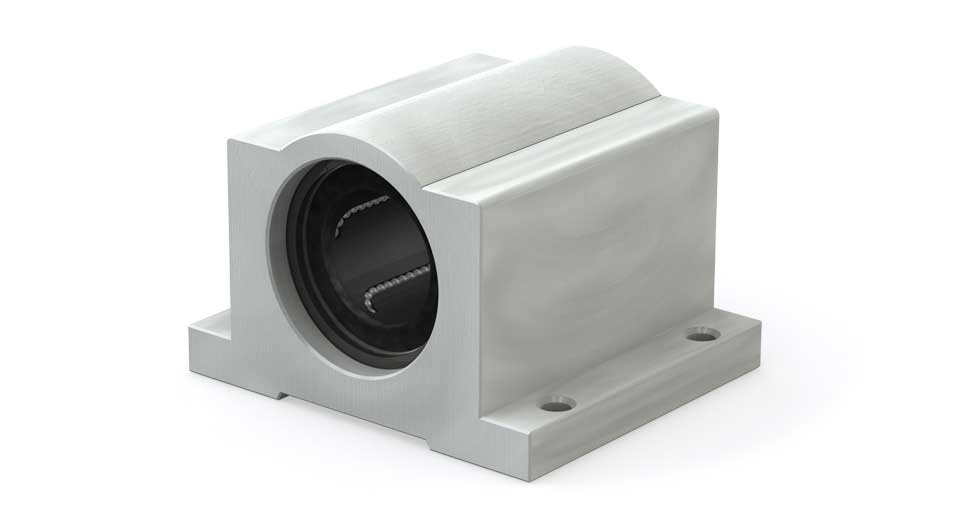

IPP (Inch) Closed Linear Ball Bearing Pillow Block

IPP (Inch) Closed Linear Ball Bearing Pillow Block

The IPP Closed Linear Ball Bearing Pillow Block is a trusted solution for linear motion applications, particularly where end-supported shafts are used. This closed, single-length imperial (inch) version is commonly found in North America and the UK. The design allows for cost-effective installations and is size interchangeable with other manufacturers' products as well as the Simplicity series linear pillow block plain bearings.

  • ID Sizes: Available from 1/4" to 2”
  • Static Load Capacities: Up to 1700 lb (7900 N)
  • Dynamic Load Capacities: Up to 850 lb (3800 N)
  • Interchangeable: Size interchangeable with industry standards and Lee's Simplicity series
  • Low Coefficient of Friction: Ensures smooth operation
  • Heat Treated Alloy Steel Shell: Provides durability
  • Resin Retainer: Reduces noise for quieter operation
  • Temperature Range: -4/+176°F (-20/+80°C)
  • Double Seals: Included as standard at no additional cost
Name Shaft Diameter (in) Bearing Width (in) Bearing Length (in) Dynamic Load (lbs) Shop Link
IPP04G 0.250 1.625 1.190 46.000 Shop Now
IPP06G 0.375 1.750 1.310 50.000 Shop Now
IPP08G 0.500 2.000 1.690 114.000 Shop Now
IPP10G 0.625 2.500 1.940 174.000 Shop Now
IPP12G 0.750 2.750 2.060 193.000 Shop Now
IPP16G 1.000 3.250 2.810 220.000 Shop Now
IPP20G 1.250 4.000 3.630 352.000 Shop Now
IPP24G 1.500 4.750 4.000 490.000 Shop Now
IPP32G 2.000 6.000 5.000 858.000 Shop Now

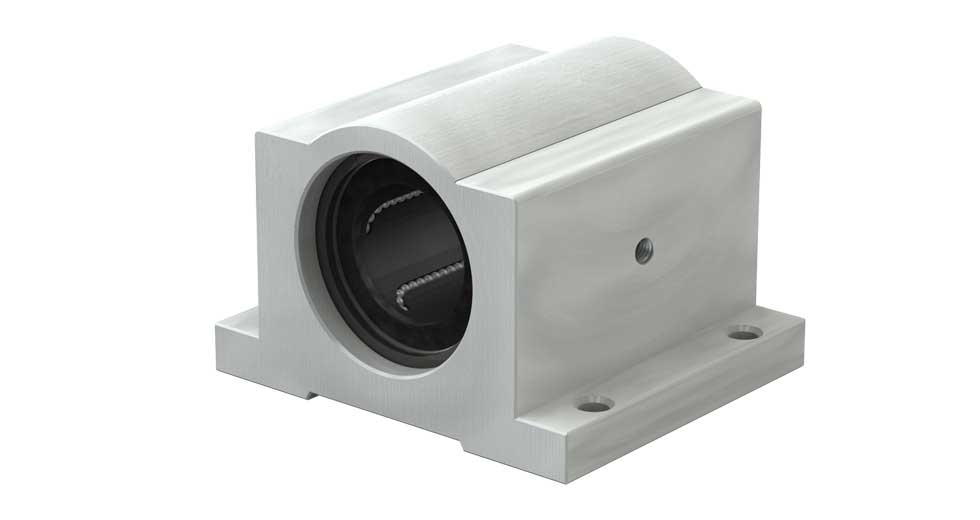

IPPS (Inch) Closed Precision Plus Linear Ball Bearing Pillow Block

IPPS (Inch) Closed Precision Plus Linear Ball Bearing Pillow Block

The IPPS Closed Precision Plus Linear Ball Bearing Pillow Block is the closed, single-length imperial (inch) version of our pillow block series, designed for precision and smooth linear motion. This self-aligning bearing compensates for misalignments or shaft deflections, ensuring consistent performance. The closed bearing design allows for cost-effective installation using end-supported shafts. It is size interchangeable with other manufacturers' products and with the Simplicity series linear pillow block plain bearings.

  • Self-Aligning: Ensures smooth travel across misalignments
  • ID Sizes: Available from 1/4" to 1-1/2”
  • Static Load Capacities: Up to 1480 lb (6585 N)
  • Interchangeable: Size interchangeable with industry standards and Lee Simplicity series
  • Low Coefficient of Friction: Ensures smooth operation
  • Heat Treated Alloy Steel Shell: Provides durability
  • Resin Retainer: Reduces noise for quieter operation
  • Temperature Range: -4/+176°F (-20/+80°C)
  • Double Seals: Included as standard at no additional cost
Name Shaft Diameter (in) Bearing Width (in) Bearing Length (in) Dynamic Load (lbs) Shop Link
IPPS08G 0.500 28.000 1.690 230.000 Shop Now
IPPS10G 0.625 2.500 1.940 400.000 Shop Now
IPPS12G 0.750 2.750 2.060 470.000 Shop Now
IPPS16G 1.000 3.250 2.810 850.000 Shop Now
IPPS20G 1.250 4.000 3.630 1230.000 Shop Now
IPPS24G 1.500 4.750 4.000 1480.000 Shop Now

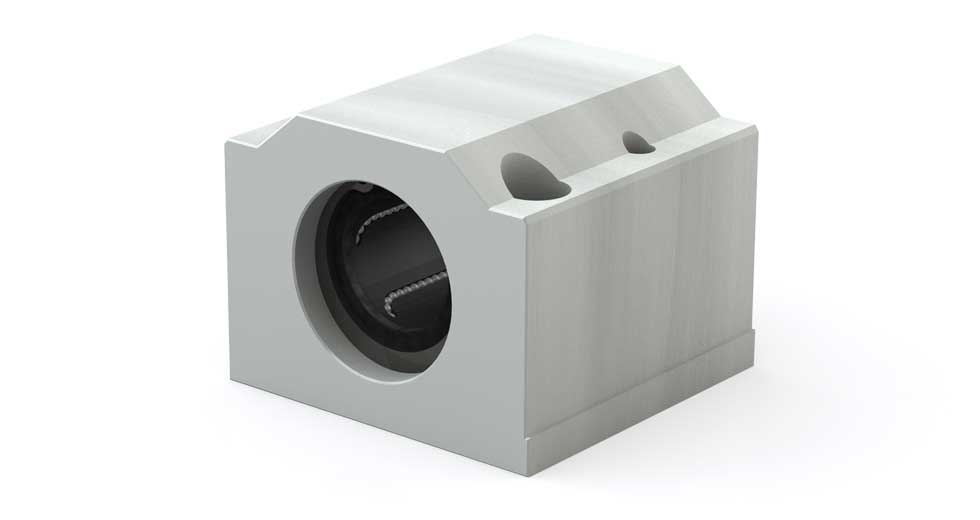

EPPM (Metric) Closed Linear Ball Bearing Pillow Block

EPPM (Metric) Closed Linear Ball Bearing Pillow Block

The EPPM Closed Linear Ball Bearing Pillow Block is a reliable choice for linear motion applications, especially in scenarios requiring a cost-effective installation using end-supported shafts. This closed, single-length ISO Metric version is commonly used in Europe and is size interchangeable with other manufacturers' products as well as the Simplicity series linear pillow block plain bearings.

  • ID Sizes: Available from 8 mm to 50 mm
  • Static Load Capacities: Up to 7900 N (1700 lb)
  • Dynamic Load Capacities: Up to 3800 N (850 lb)
  • Interchangeable: Size interchangeable with industry standards and Lee Simplicity series
  • Self-Aligning: Compensates for misalignment
  • Low Coefficient of Friction: Ensures smooth operation
  • Heat Treated Alloy Steel Shell: Provides durability
  • Resin Retainer: Reduces noise for quieter operation
  • Temperature Range: -20/80°C (-4/176°F)
  • Double Seals: Included as standard at no additional cost
Name Shaft Diameter (mm) Bearing Width (mm) Bearing Length (mm) Dynamic Load (N) Shop Link
EPPM08G 8.00 28.00 35.00 260.00 Shop Now
EPPM10G 10.00 31.50 40.00 372.00 Shop Now
EPPM12G 12.00 35.00 43.00 410.00 Shop Now
EPPM16G 16.00 42.00 53.00 770.00 Shop Now
EPPM20G 20.00 50.00 60.00 860.00 Shop Now
EPPM25G 25.00 60.00 78.00 980.00 Shop Now
EPPM30G 30.00 71.00 87.00 1560.00 Shop Now
EPPM40G 40.00 91.00 108.00 2150.00 Shop Now
EPPM50G 50.00 105.00 132.00 3820.00 Shop Now

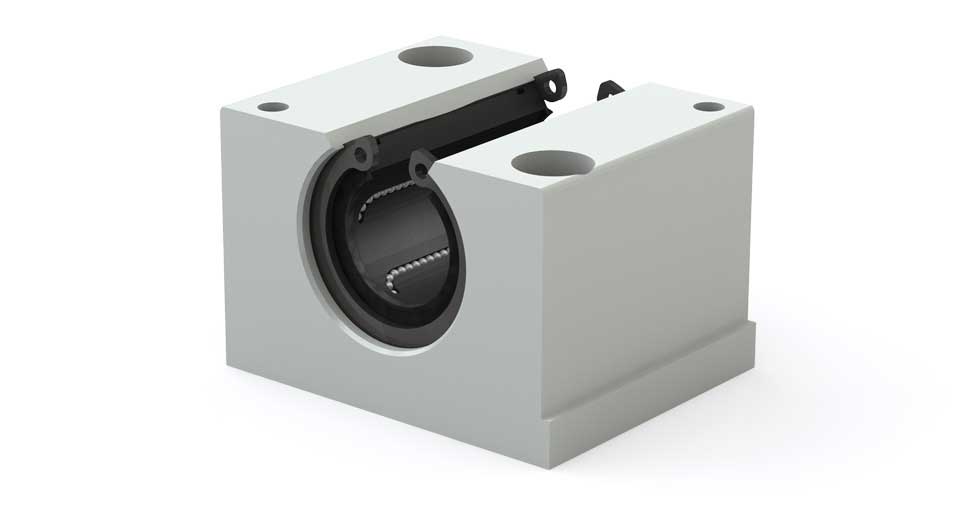

EPPMN (Metric) Open Linear Ball Bearing Pillow Block

EPPMN (Metric) Open Linear Ball Bearing Pillow Block

The EPPMN Open Linear Ball Bearing Pillow Block is a proven solution for linear motion applications, particularly where fully supported shafts and support rails are needed for increased rigidity. This open, single-length ISO Metric version is commonly used in Europe and is size interchangeable with other manufacturers' products as well as the Simplicity linear pillow block plain bearings from Lee.

  • ID Sizes: Available from 12 mm to 50 mm
  • Static Load Capacities: Up to 7900 N (1700 lb)
  • Dynamic Load Capacities: Up to 3800 N (850 lb)
  • Interchangeable: Size interchangeable with industry standards and Lee Simplicity series
  • Self-Aligning: Compensates for misalignment
  • Low Coefficient of Friction: Ensures smooth operation
  • Heat Treated Alloy Steel Shell: Provides durability
  • Resin Retainer: Reduces noise for quieter operation
  • Temperature Range: -20/80°C (-4/176°F)
  • Double Seals: Included as standard at no additional cost
Name Shaft Diameter (mm) Bearing Width (mm) Bearing Length (mm) Dynamic Load (N) Shop Link
EPPMN12G 12.00 28.00 43.00 410.00 Shop Now
EPPMN16G 16.00 35.00 53.00 770.00 Shop Now
EPPMN20G 20.00 42.00 60.00 860.00 Shop Now
EPPMN25G 25.00 51.00 78.00 980.00 Shop Now
EPPMN30G 30.00 60.00 87.00 1560.00 Shop Now
EPPMN40G 40.00 77.00 108.00 2150.00 Shop Now
EPPMN50G 50.00 88.00 132.00 3820.00 Shop Now

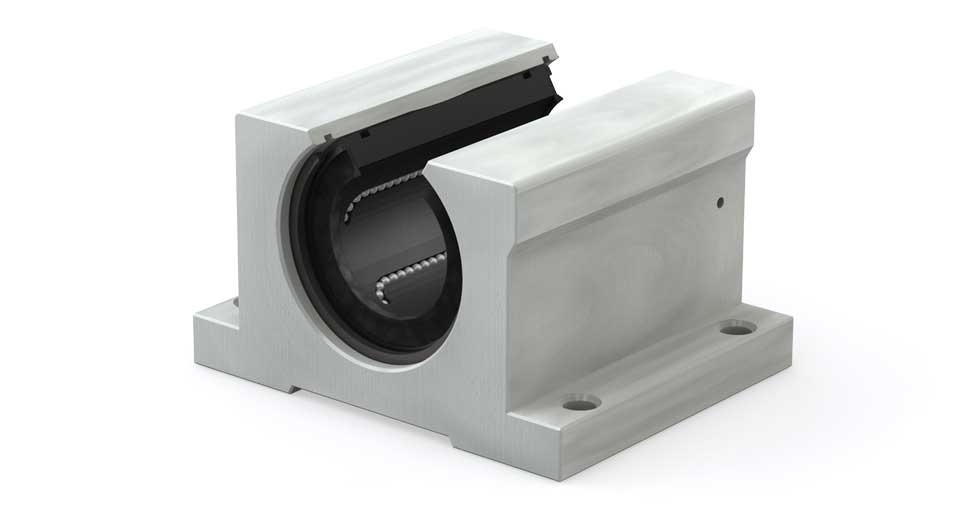

IPPN (Inch) Open Linear Ball Bearing Pillow Block

IPPN (Inch) Open Linear Ball Bearing Pillow Block

The IPPN Open Linear Ball Bearing Pillow Block is a trusted solution for linear motion applications, particularly where fully supported shafts and support rails are needed for increased rigidity. This open, single-length imperial (inch) version is commonly used in North America and the UK. It is size interchangeable with other manufacturers' products as well as the Simplicity linear pillow block plain bearings.

  • ID Sizes: Available from 1/2" to 2”
  • Static Load Capacities: Up to 1700 lb (7900 N)
  • Dynamic Load Capacities: Up to 850 lb (3800 N)
  • Interchangeable: Size interchangeable with industry standards and Lee Simplicity series
  • Low Coefficient of Friction: Ensures smooth operation
  • Heat Treated Alloy Steel Shell: Provides durability
  • Resin Retainer: Reduces noise for quieter operation
  • Temperature Range: -4/176°F (-20/80°C)
  • Double Seals: Included as standard at no additional cost
Name Shaft Diameter (in) Bearing Width (in) Bearing Length (in) Dynamic Load (lbs) Shop Link
IPPN08G 0.500 28.000 1.500 114.000 Shop Now
IPPN10G 0.625 2.500 1.750 174.000 Shop Now
IPPN12G 0.750 2.750 1.880 193.000 Shop Now
IPPN16G 1.000 3.250 2.630 220.000 Shop Now
IPPN20G 1.250 4.000 3.380 352.000 Shop Now
IPPN24G 1.500 4.750 3.750 490.000 Shop Now
IPPN32G 2.000 6.000 4.750 858.000 Shop Now

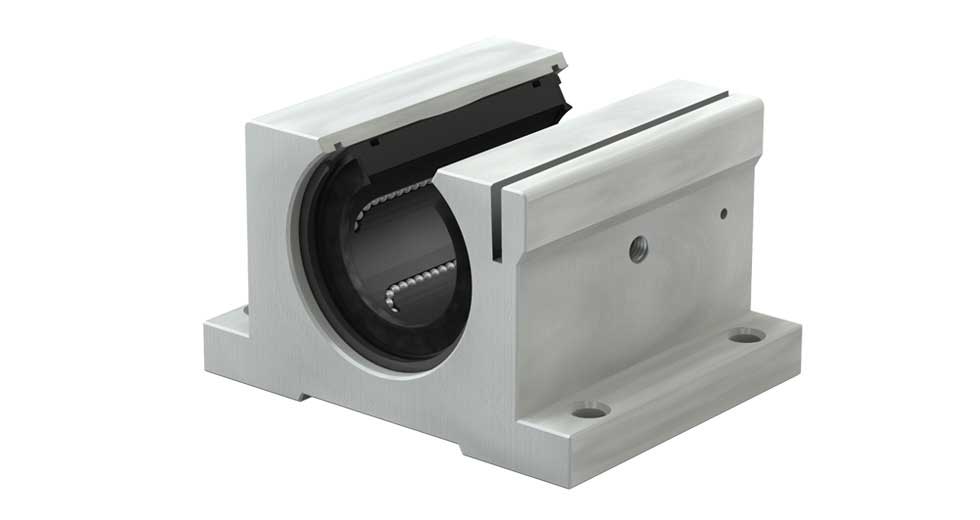

IPPSN (Inch) Open Precision Plus Linear Ball Bearing Pillow Block

IPPSN (Inch) Open Precision Plus Linear Ball Bearing Pillow Block

The IPPSN Open Precision Plus Linear Ball Bearing Pillow Block is an open, self-aligning, single-length imperial (inch) version of our precision plus roller bearing pillow blocks. Designed to offer smooth linear motion even in the presence of misalignments or shaft deflections, the open design allows for the use of fully supported shafts and support rails for greater rigidity. Commonly used in North America and the UK, this pillow block is size interchangeable with other manufacturers' products as well as the Simplicity bearings.

  • Self-Aligning: Ensures smooth travel across misalignments
  • ID Sizes: Available from 1/2" to 1-1/2”
  • Static Load Capacities: Up to 1480 lb (6585 N)
  • Grooved for a Tighter Fit: Enhances stability
  • Interchangeable: Size interchangeable with industry standards and Lee Simplicity series
  • Low Coefficient of Friction: Ensures smooth operation
  • Heat Treated Alloy Steel Shell: Provides durability
  • Resin Retainer: Reduces noise for quieter operation
  • Temperature Range: -4/176°F (-20/80°C)
  • Double Seals: Included as standard at no additional cost
Name Shaft Diameter (in) Bearing Width (in) Bearing Length (in) Dynamic Load (lbs) Shop Link
IPPSN08G 0.500 2.000 1.500 230.000 Shop Now
IPPSN10G 0.625 2.500 1.750 400.000 Shop Now
IPPSN12G 0.750 2.750 1.880 470.000 Shop Now
IPPSN16G 1.000 3.250 2.630 850.000 Shop Now
IPPSN20G 1.250 4.000 3.380 1230.000 Shop Now
IPPSN24G 1.500 4.750 3.750 1480.000 Shop Now

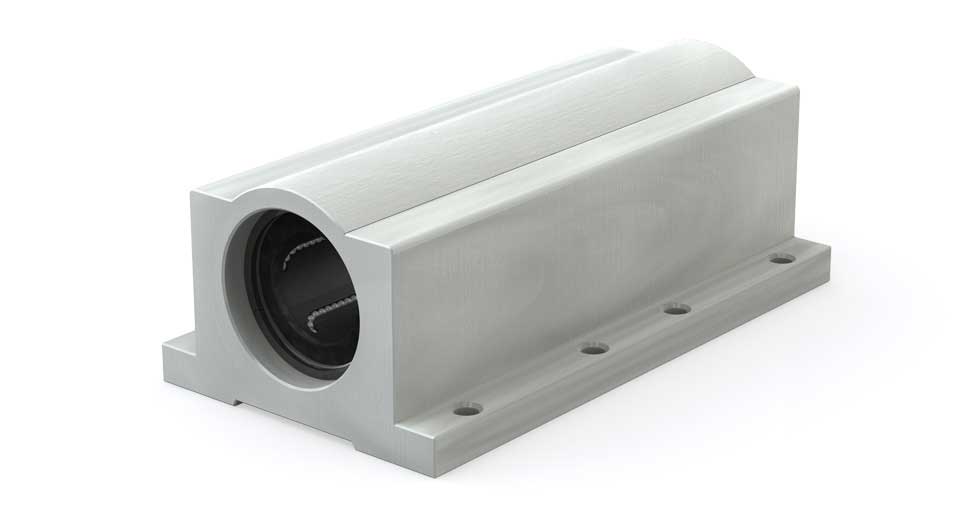

IPPW (Inch) Twin Closed Linear Ball Bearing Pillow Blocks

IPPW (Inch) Twin Closed Linear Ball Bearing Pillow Blocks

The IPPW Twin Closed Linear Ball Bearing Pillow Block is a reliable choice for linear motion applications, particularly where a double-length bearing is required. This closed, imperial (inch) version allows for cost-effective installations using end-supported shafts. Commonly found in North America and the UK, these pillow block bearings are size interchangeable with other manufacturers' products as well as the Simplicity bearings.

  • ID Sizes: Available from 1/4" to 2”
  • Static Load Capacities: Up to 3400 lb (15,800 N)
  • Dynamic Load Capacities: Up to 1700 lb (7600 N)
  • Interchangeable: Size interchangeable with industry standards and Lee Simplicity series
  • Self-Aligning: Compensates for misalignment
  • Low Coefficient of Friction: Ensures smooth operation
  • Heat Treated Alloy Steel Shell: Provides durability
  • Resin Retainer: Reduces noise for quieter operation
  • Temperature Range: -4/176°F (-20/80°C)
  • Double Seals: Included as standard at no additional cost
Name Shaft Diameter (in) Bearing Width (in) Bearing Length (in) Dynamic Load (lbs) Shop Link
IPPW04G 0.250 1.625 2.500 92.000 Shop Now
IPPW06G 0.375 1.750 2.750 100.000 Shop Now
IPPW08G 0.500 2.000 3.500 228.000 Shop Now
IPPW10G 0.625 2.500 4.000 348.000 Shop Now
IPPW12G 0.750 2.750 4.500 386.000 Shop Now
IPPW16G 1.000 3.250 6.000 440.000 Shop Now
IPPW20G 1.250 4.000 7.500 704.000 Shop Now
IPPW24G 1.500 4.750 9.000 980.000 Shop Now
IPPW32G 2.000 6.000 10.000 1716.000 Shop Now

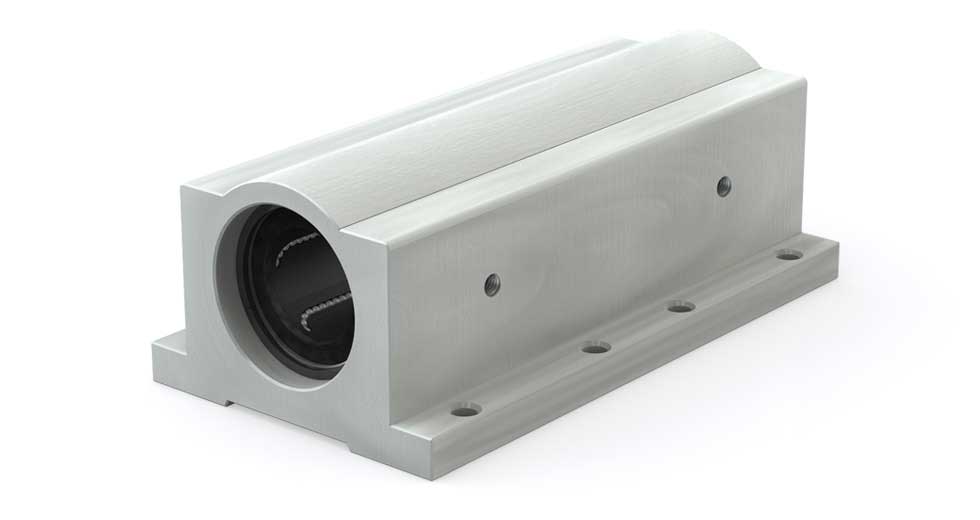

IPPSW (Inch) Closed Precision Plus Twin Ball Bearing Pillow Block

IPPSW (Inch) Closed Precision Plus Twin Ball Bearing Pillow Block

The IPPSW Closed Precision Plus Twin Ball Bearing Pillow Block is a double-length, imperial (inch) pillow block designed for precision and reliability. This pillow block features self-aligning bearings that ensure smooth linear motion even in the presence of misalignments or shaft deflections. The closed bearing design allows for cost-effective installation using end-supported shafts. It is size interchangeable with other manufacturers' products as well as the Linear Pillow Block Plain Simplicity Bearings.

  • Self-Aligning: Compensates for misalignment for smooth operation
  • ID Sizes: Available from 1/4" to 1-1/2”
  • Static Load Capacities: Up to 3000 lb (13,345 N)
  • Interchangeable: Size interchangeable with industry standards and Lee Simplicity series
  • Low Coefficient of Friction: Ensures smooth and efficient operation
  • Heat Treated Alloy Steel Shell: Provides durability and long-lasting performance
  • Resin Retainer: Reduces noise for quieter operation
  • Temperature Range: -4/176°F (-20/80°C)
  • Double Seals: Included as standard at no additional cost
Name Shaft Diameter (in) Bearing Width (in) Bearing Length (in) Dynamic Load (lbs) Shop Link
IPPSW08G 0.500 2.000 3.500 460.000 Shop Now
IPPSW10G 0.625 2.500 4.000 800.000 Shop Now
IPPSW12G 0.750 2.750 4.500 940.000 Shop Now
IPPSW16G 1.000 3.250 6.000 1700.000 Shop Now
IPPSW20G 1.250 4.000 7.500 2460.000 Shop Now
IPPSW24G 1.500 4.750 9.000 2958.000 Shop Now

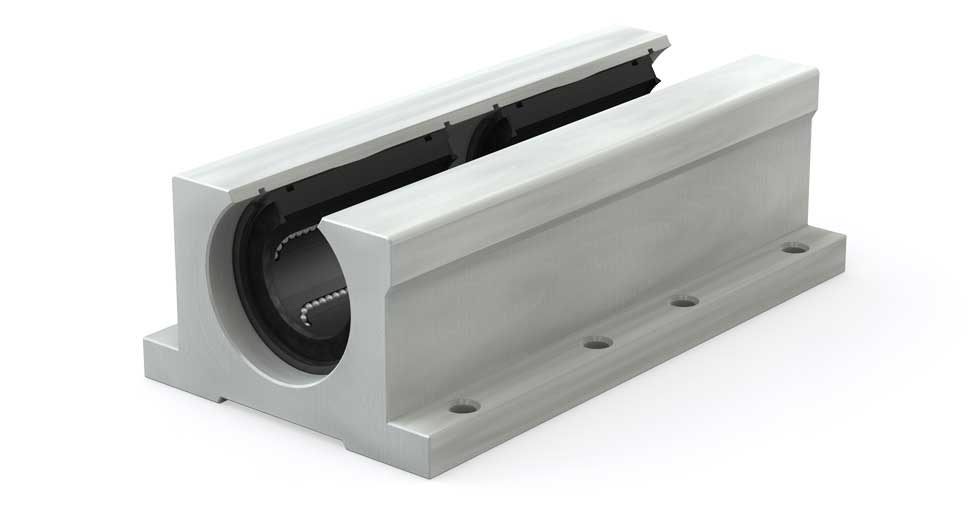

IPPWN (Inch) Twin Open Linear Ball Bearing Pillow Blocks

IPPWN (Inch) Twin Open Linear Ball Bearing Pillow Blocks

The IPPWN Twin Open Linear Ball Bearing Pillow Block is a trusted solution for linear motion applications, particularly where a double-length bearing is needed. This open, imperial (inch) version is designed for use with fully supported shafts and support rails for increased rigidity. Commonly found in North America and the UK, these pillow block bearings are size interchangeable with other manufacturers' products as well as the Simplicity bearings.

  • ID Sizes: Available from 1/4" to 1.5”
  • Static Load Capacities: Up to 3000 lb (13,344 N)
  • Dynamic Load Capacities: Up to 1700 lb (7600 N)
  • Interchangeable: Size interchangeable with industry standards and Lee Simplicity series
  • Self-Aligning: Compensates for misalignment
  • Low Coefficient of Friction: Ensures smooth operation
  • Heat Treated Alloy Steel Shell: Provides durability
  • Resin Retainer: Reduces noise for quieter operation
  • Temperature Range: -4/176°F (-20/80°C)
  • Double Seals: Included as standard at no additional cost
Name Shaft Diameter (in) Bearing Width (in) Bearing Length (in) Dynamic Load (lbs) Shop Link
IPPWN08G 0.500 2.000 3.500 228.000 Shop Now
IPPWN10G 0.625 2.500 4.000 348.000 Shop Now
IPPWN12G 0.750 2.750 4.500 386.000 Shop Now
IPPWN16G 1.000 3.250 6.000 440.000 Shop Now
IPPWN20G 1.250 4.000 7.500 704.000 Shop Now
IPPWN24G 1.500 4.750 9.000 980.000 Shop Now
IPPWN32G 2.000 6.000 10.000 1716.000 Shop Now

IPPSWN (Inch) Open Precision Plus Twin Ball Bearing Pillow Block

IPPSWN (Inch) Open Precision Plus Twin Ball Bearing Pillow Block

The IPPSWN Open Precision Plus Twin Ball Bearing Pillow Block is a double-length, open, imperial (inch) version in our Precision Plus pillow block series. Designed for applications requiring self-aligning bearings, this pillow block offers smooth linear motion even in the presence of misalignments or shaft deflections. The open bearing design allows for cost-effective installation using end-supported shafts. Commonly used in North America and the UK, these pillow block bearings are size interchangeable with other manufacturers' products as well as Simplicity Linear Plain Bearings.

  • Self-Aligning: Compensates for misalignment to ensure smooth operation
  • ID Sizes: Available from 1/4" to 2”
  • Static Load Capacities: Up to 3000 lb (13,345 N)
  • Grooved for a Tighter Fit: Enhances stability and performance
  • Interchangeable: Size interchangeable with industry standards and Simplicity Linear Plain Bearings
  • Low Coefficient of Friction: Ensures smooth and efficient operation
  • Heat Treated Alloy Steel Shell: Provides durability and long-lasting performance
  • Resin Retainer: Reduces noise for quieter operation
  • Temperature Range: -4/176°F (-20/80°C)
  • Double Seals: Included as standard at no additional cost
Name Shaft Diameter (in) Bearing Width (in) Bearing Length (in) Dynamic Load (lbs) Shop Link
IPPSWN08G 0.500 2.000 3.500 460.000 Shop Now
IPPSWN10G 0.625 2.500 4.000 800.000 Shop Now
IPPSWN12G 0.750 2.750 4.500 940.000 Shop Now
IPPSWN16G 1.000 3.250 6.000 1700.000 Shop Now
IPPSWN20G 1.250 4.000 7.500 2460.000 Shop Now
IPPSWN24G 1.500 4.750 9.000 2950.000 Shop Now
