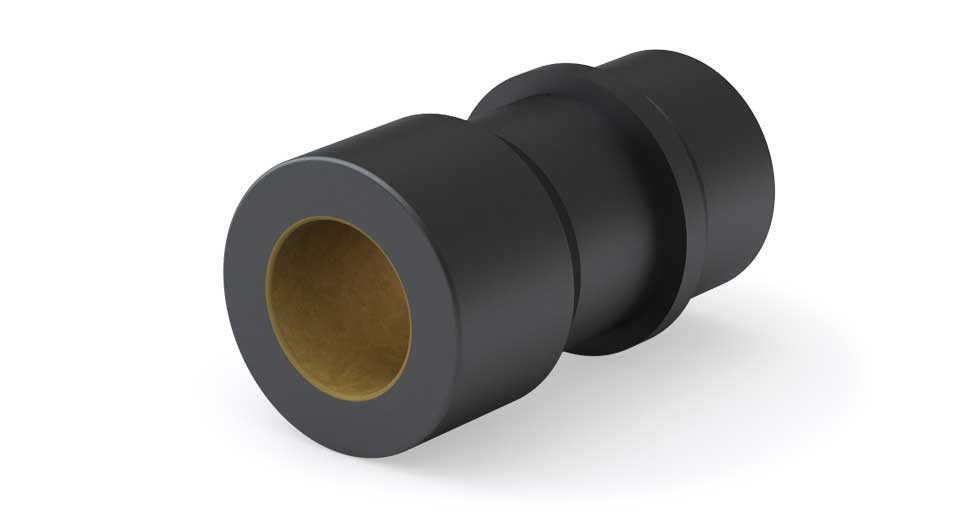

Die Set Bushing Flange Mount

PACZ (Inch) Die Set Bushings, Flange Mount Plain Bearing

PACZ (Inch) Die Set Bushings, Flange Mount Plain Bearing

The PACZ Die Set Flange Mount Inch Plain Bearing is designed with a robust aluminum body and a bonded Frelon® liner for superior performance and longevity. This flange bearing is ideal for a range of applications and offers the following features and benefits:

  • Available Sizes: 3/4” ID to 3” ID
  • Static Load Capacities: Up to 55,000 lbs (244,600 N)
  • Housing Material: Standard is anodized aluminum
  • Liner Options: FrelonGOLD® (standard); Frelon J and Frelon W available upon request
  • Lubrication: Self-lubricating for oil-free operation; External lubrication feature is an added option
  • Temperature Range: -400°F to 400°F (-240°C to 204°C)
  • Additional Benefits: Effective vibration damping
  • Included: (4) PAC Clamps with each bearing
  • Customization: Available for specific needs – please contact an Application Engineer for more information
Name Nominal ID (in) Nominal OD (in) Shaft Diameter (in) Static Load (lbs) Shop Link
PACZ100 1.001 1.731 1.000 9817 Shop Now
PACZ125 1.251 2.105 1.250 13744 Shop Now
PACZ150 1.501 2.354 1.500 19439 Shop Now
PACZ200 2.001 3.103 2.000 29060 Shop Now
PACZ250 2.501 3.603 2.500 42215 Shop Now
PACZ300 3.001 4.353 3.000 55371 Shop Now
PACZ750 0.751 1.293 0.750 6626 Shop Now

PACZC (Inch) Die Set Bushings, Flange Mount Compensated Plain Bearing

PACZC (Inch) Die Set Bushings, Flange Mount Compensated Plain Bearing

The PACZC Die Set Flange Mount Inch Plain Bearing features a robust aluminum body with a bonded Frelon® liner and is compensated for running clearance. This bearing is engineered for high performance and durability, making it suitable for a variety of applications. Key features and benefits include:

  • Available Sizes: 3/4” ID to 3” ID
  • Static Load Capacities: Up to 55,000 lbs (244,600 N)
  • Housing Material: Standard is anodized aluminum
  • Liner Options: FrelonGOLD® (standard); Frelon J and Frelon W available upon request
  • Lubrication: Self-lubricating for oil-free operation; External lubrication feature is an added option
  • Temperature Range: -400°F to 400°F (-240°C to 204°C)
  • Additional Benefits: Effective vibration damping
  • Included: (4) PAC Clamps with each bearing
  • Customization: Available for specific needs – please contact an Application Engineer for more information
Name Nominal ID (in) Nominal OD (in) Shaft Diameter (in) Static Load (lbs) Shop Link
PACZ100C 1.001 1.731 1.000 9817 Shop Now
PACZ125C 1.251 2.105 1.250 13744 Shop Now
PACZ150C 1.501 2.354 1.500 19439 Shop Now
PACZ200C 2.001 3.103 2.000 29060 Shop Now
PACZ250C 2.501 3.603 2.500 42215 Shop Now
PACZ300C 3.001 4.353 3.000 55371 Shop Now
PACZ750C 0.751 1.293 0.750 6626 Shop Now

PACMZ (Metric) Die Set Bushings, Flange Mount Metric Bearing

PACMZ (Metric) Die Set Bushings, Flange Mount Metric Bearing

The PACMZ Die Set Flange Mount Metric Plain Bearing is designed with a durable aluminum body and a bonded Frelon® liner, providing high performance and reliability. This bearing is suitable for various applications, offering several key features and benefits:

  • Available Sizes: 19 mm ID to 80 mm ID
  • Static Load Capacities: Up to 24,600 kg (54,200 lbs)
  • Housing Material: Standard is anodized aluminum
  • Liner Options: FrelonGOLD® (standard); Frelon J and Frelon W available upon request
  • Lubrication: Self-lubricating for oil-free operation; External lubrication feature is an added option
  • Temperature Range: -240°C to 204°C (-400°F to 400°F)
  • Additional Benefits: Effective vibration damping
  • Included: (4) PAC clamps with each bearing
  • Customization: Available for specific needs – please contact an Application Engineer for more information
Name Nominal ID (in) Nominal OD (in) Shaft Diameter (in) Static Load (lbs) Shop Link
PACMZ19 19.037 33.988 19.000 28694 Shop Now
PACMZ25 25.037 43.988 25.000 43144 Shop Now
PACMZ32 32.037 52.985 32.000 62127 Shop Now
PACMZ40 40.045 62.985 40.000 86289 Shop Now
PACMZ50 50.045 78.985 50.000 118652 Shop Now
PACMZ63 63.048 91.983 63.000 106056 Shop Now
PACMZ80 80.048 110.983 80.000 258876 Shop Now

PACMZC (Metric) Die Set Bushings, Flange Mount Metric Compensated Bearing

PACMZC (Metric) Die Set Bushings, Flange Mount Metric Compensated Bearing

The PACMZC Die Set Flange Mount Metric Compensated Plain Bearing features a robust aluminum body with a bonded Frelon® liner, designed for enhanced performance and durability. This bearing is ideal for a variety of applications and offers the following key features and benefits:

  • Available Sizes: 19 mm ID to 80 mm ID
  • Static Load Capacities: Up to 24,600 kg (54,200 lbs)
  • Housing Material: Standard is anodized aluminum
  • Liner Options: FrelonGOLD® (standard); Frelon J and Frelon W available upon request
  • Lubrication: Self-lubricating for oil-free operation; External lubrication feature is an added option
  • Temperature Range: -240°C to 204°C (-400°F to 400°F)
  • Additional Benefits: Effective vibration damping
  • Included: (4) PAC clamps with each bearing
  • Customization: Available for specific needs – please contact an Application Engineer for more information
Name Nominal ID (in) Nominal OD (in) Shaft Diameter (in) Static Load (lbs) Shop Link
PACMZ19C 19.113 33.988 19.000 28694 Shop Now
PACMZ25C 25.113 43.988 25.000 43144 Shop Now
PACMZ32C 32.113 52.985 32.000 62127 Shop Now
PACMZ40C 40.147 62.985 40.000 86289 Shop Now
PACMZ50C 50.147 78.985 50.000 118652 Shop Now
PACMZ63C 63.205 91.983 63.000 106056 Shop Now
PACMZ80C 80.205 110.983 80.000 258876 Shop Now
