Flanged Ball Bearings

EPF (Metric) Round Flange Mount Linear Bearing

Considered by many to be the default choice for linear motion applications, the EPF Round Flange Mount Linear Bearing is a tried and tested option, particularly suited for most linear motion needs. This is the single-length, ISO Metric version with a round flange located at one end, commonly used in Europe. It is size interchangeable with other manufacturers and with the Simplicity Linear Plain Bearings. Additional benefits include:

ID Sizes: Available from 8 mm to 50 mm
Static Load Capacities: Up to 7900 N (1700 lb)
Dynamic Load Capacities: Up to 3800 N (850 lb)
Interchangeability: Size interchangeable with industry standards and with Simplicity series
Design: Single length with end mount round flange
Low Coefficient of Friction: Ensures smooth operation
Material: Heat-treated alloy steel shell
Noise Reduction: Resin retainer for reduced noise
Temperature Range: -20°C to +80°C (-4°F to +176°F)
Sealing: Double seals included standard at no additional cost

Name	Nominal ID (mm)	Nominal OD (mm)	Shaft Diameter (mm)	MAX Dynamic Load Rating (N)	Shop Link
EPF08G	8.00	16.00	8.00	265.00	Shop Now
EPF16G	16.01	26.00	16.00	578.00	Shop Now
EPF20G	20.00	32.00	20.00	862.00	Shop Now
EPF25G	25.01	40.00	25.00	980.00	Shop Now
EPF30G	30.01	47.00	30.00	2740.00	Shop Now
EPF40G	40.01	62.00	40.00	2160.00	Shop Now
EPF50G	50.01	75.00	50.00	3820.00	Shop Now

EPFC (Metric) Flanged Mount Linear Ball Bearing

Considered by many to be the default choice for linear motion applications, the EPFC Flanged Mount Linear Ball Bearing is a reliable option, especially suited for most linear motion needs. This is the double-length, ISO Metric version with a round flange located at the center of the bearing, commonly used in Europe. It is size interchangeable with other manufacturers and with the Simplicity Linear Plain Bearings. Additional benefits include:

ID Sizes: Available from 8 mm to 50 mm
Static Load Capacities: Up to 15,900 N (3,500 lb)
Dynamic Load Capacities: Up to 6,000 N (1,300 lb)
Static Moment Capacities: Up to 399 Nm (290 ft-lb)
Interchangeability: Size interchangeable with industry standards and with Simplicity series
Design: Double length with center mount round flange
Low Coefficient of Friction: Ensures smooth operation
Material: Heat-treated alloy steel shell
Noise Reduction: Resin retainer for reduced noise
Temperature Range: -20°C to +80°C (-4°F to +176°F)
Sealing: Double seals included standard at no additional cost

Name	Nominal ID (mm)	Nominal OD (mm)	Shaft Diameter (mm)	MAX Dynamic Load Rating (N)	Shop Link
EPFC08G	8.00	16.00	8.00	421.00	Shop Now
EPFC12G	12.00	22.00	12.00	813.00	Shop Now
EPFC16G	16.01	26.00	16.00	813.00	Shop Now
EPFC20G	20.01	32.00	20.00	1370.00	Shop Now
EPFC25G	25.01	40.00	25.00	1570.00	Shop Now
EPFC30G	30.01	47.00	30.00	2500.00	Shop Now
EPFC40G	40.01	62.00	40.00	3430.00	Shop Now
EPFC50G	50.01	75.00	50.00	6080.00	Shop Now

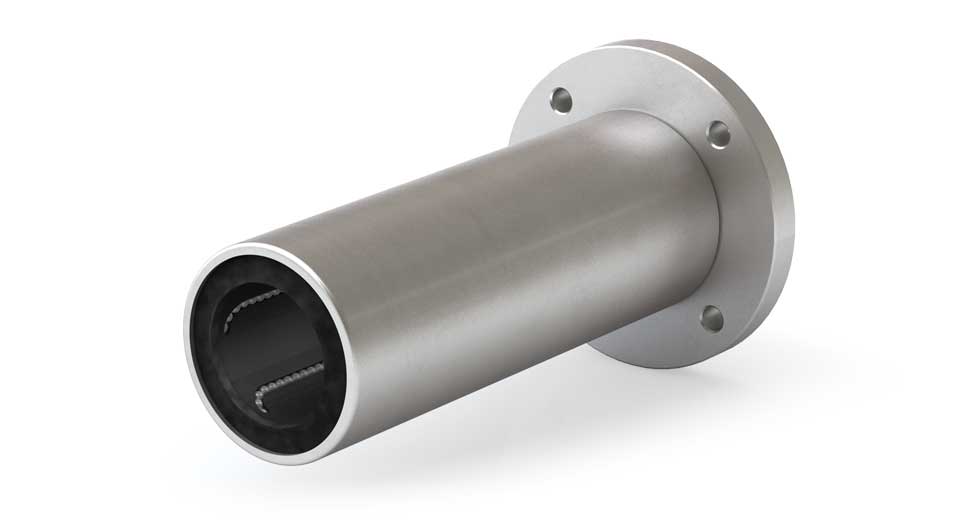

EPF-W (Metric) Round Flange Mount Wide Linear Ball Bearing

Considered by many to be the default choice for linear motion applications, the EPF-W Round Flange Mount Wide Linear Ball Bearing is a reliable option for most linear motion needs. This is the double-length, ISO Metric version with a round flange located at one end, commonly used in Europe. It is size interchangeable with other manufacturers and with the Simplicity Linear Plain Bearings. Additional benefits include:

ID Sizes: Available from 8 mm to 50 mm
Static Load Capacities: Up to 15,900 N (3,500 lb)
Dynamic Load Capacities: Up to 6,000 N (1,300 lb)
Static Moment Capacities: Up to 399 Nm (290 ft-lb)
Interchangeability: Size interchangeable with industry standards and with Simplicity series
Design: Double length with end mount round flange
Low Coefficient of Friction: Ensures smooth operation
Material: Heat-treated alloy steel shell
Noise Reduction: Resin retainer for reduced noise
Temperature Range: -20°C to +80°C (-4°F to +176°F)
Sealing: Double seals included standard at no additional cost

Name	Nominal ID (mm)	Nominal OD (mm)	Shaft Diameter (mm)	MAX Dynamic Load Rating (N)	Shop Link
EPF08GW	8.00	16.99	8.00	421.00	Shop Now
EPF12GW	12.00	22.00	12.00	813.00	Shop Now
EPF16GW	16.01	26.00	16.00	921.00	Shop Now
EPF20GW	20.01	32.00	20.00	1370.00	Shop Now
EPF25GW	25.01	40.00	25.00	1570.00	Shop Now
EPF30GW	30.01	47.00	30.00	2500.00	Shop Now
EPF40GW	40.01	62.00	40.00	3430.00	Shop Now
EPF50GW	50.01	75.00	50.00	6080.00	Shop Now

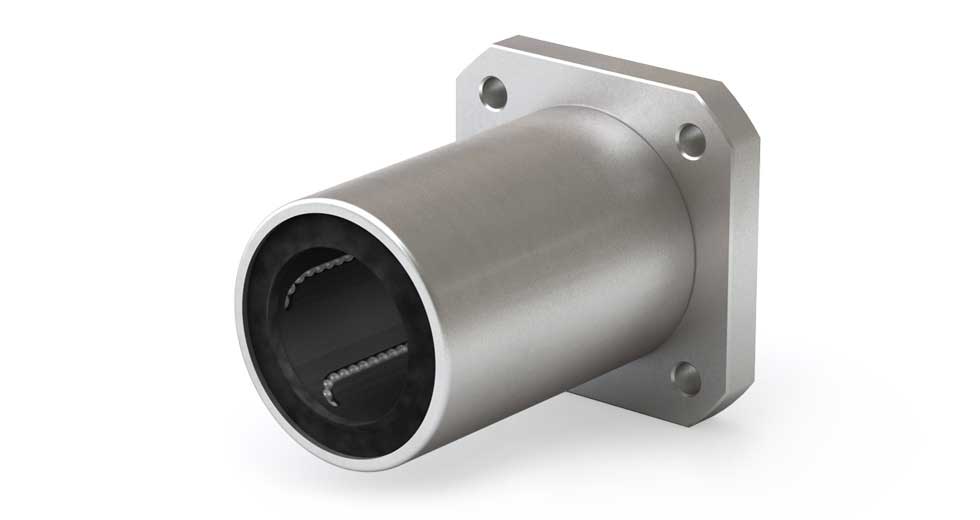

EPK (Metric) Square Flange Mount Linear Ball Bearing

Considered by many to be the default choice for linear motion applications, the EPK Square Flange Mount Linear Ball Bearing is a reliable option for most linear motion needs. This is the single-length, ISO Metric version with a square flange located at one end, commonly used in Europe. It is size interchangeable with other manufacturers and with the Simplicity Linear Plain Bearings. Additional benefits include:

ID Sizes: Available from 8 mm to 50 mm
Static Load Capacities: Up to 7900 N (1700 lb)
Dynamic Load Capacities: Up to 3800 N (850 lb)
Interchangeability: Size interchangeable with industry standards and with Simplicity series
Design: Single length with end mount square flange
Low Coefficient of Friction: Ensures smooth operation
Material: Heat-treated alloy steel shell
Noise Reduction: Resin retainer for reduced noise
Temperature Range: -20°C to +80°C (-4°F to +176°F)
Sealing: Double seals included standard at no additional cost

Name	Nominal ID (mm)	Nominal OD (mm)	Shaft Diameter (mm)	MAX Dynamic Load Rating (N)	Shop Link
EPK08G	8.00	16.00	8.00	265.00	Shop Now
EPK12G	12.00	22.00	12.00	510.00	Shop Now
EPK16G	16.00	26.00	16.00	578.00	Shop Now
EPK20G	20.01	32.00	20.00	862.00	Shop Now
EPK25G	25.01	40.00	25.00	980.00	Shop Now
EPK30G	30.01	47.00	30.00	1570.00	Shop Now
EPK40G	40.01	62.00	40.00	2160.00	Shop Now
EPK50G	50.01	75.00	50.00	3820.00	Shop Now

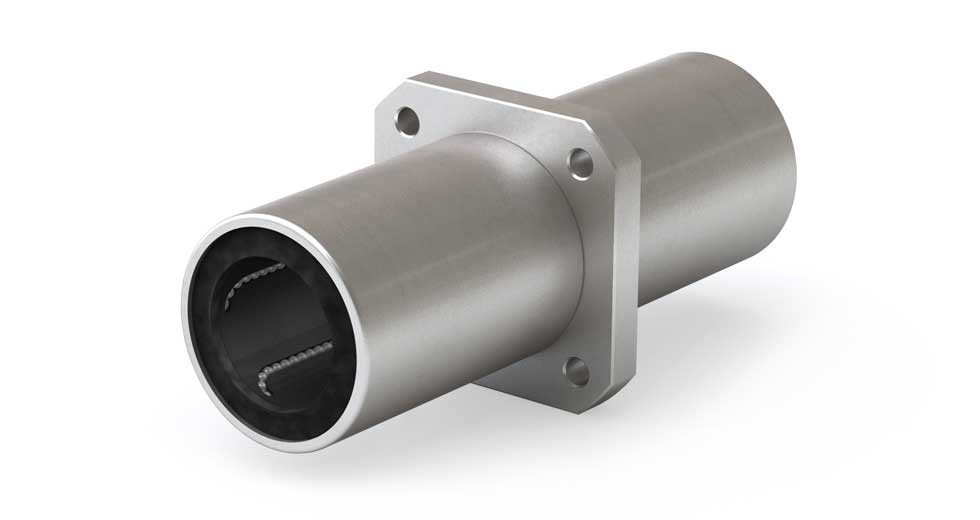

EPKC (Metric) Square Flange Center Mount Linear Ball Bearing

Considered by many to be the default choice for linear motion applications, the EPKC Square Flange Center Mount Linear Ball Bearing is a reliable option for most linear motion needs. This is the double-length, ISO Metric version with a square flange located at the center of the bearing, commonly used in Europe. It is size interchangeable with other manufacturers and with Simplicity Linear Plain Bearings. Additional benefits include:

ID Sizes: Available from 8 mm to 50 mm
Static Load Capacities: Up to 15,900 N (3,500 lb)
Dynamic Load Capacities: Up to 6,000 N (1,300 lb)
Static Moment Capacities: Up to 399 Nm (290 ft-lb)
Interchangeability: Size interchangeable with industry standards and with Simplicity series
Design: Double length with center mount square flange
Low Coefficient of Friction: Ensures smooth operation
Material: Heat-treated alloy steel shell
Noise Reduction: Resin retainer for reduced noise
Temperature Range: -20°C to +80°C (-4°F to +176°F)
Sealing: Double seals included standard at no additional cost

Name	Nominal ID (mm)	Nominal OD (mm)	Shaft Diameter (mm)	MAX Dynamic Load Rating (N)	Shop Link
EPKC08G	8.00	16.99	8.00	421.00	Shop Now
EPKC12G	12.00	22.00	12.00	813.00	Shop Now
EPKC16G	16.01	26.00	16.00	921.00	Shop Now
EPKC20G	20.01	32.00	20.00	1370.00	Shop Now
EPKC25G	25.01	40.00	25.00	1570.00	Shop Now
EPKC30G	30.01	47.00	30.00	2500.00	Shop Now
EPKC40G	40.01	62.00	40.00	3430.00	Shop Now
EPKC50G	50.01	75.00	50.00	6080.00	Shop Now

EPK-W (Metric) Square Flange Mount Wide Linear Ball Bearing

Considered by many to be the default choice for linear motion applications, the EPK-W Square Flange Mount Wide Linear Ball Bearing is a reliable option for most linear motion needs. This is the double-length, ISO Metric version with a square flange located at one end, commonly used in Europe. It is size interchangeable with other manufacturers and with Simplicity Linear Plain Bearings. Additional benefits include:

ID Sizes: Available from 8 mm to 50 mm
Static Load Capacities: Up to 15,900 N (3,500 lb)
Dynamic Load Capacities: Up to 6,000 N (1,300 lb)
Static Moment Capacities: Up to 399 Nm (290 ft-lb)
Interchangeability: Size interchangeable with industry standards and with Simplicity series
Design: Double length with end mount square flange
Low Coefficient of Friction: Ensures smooth operation
Material: Heat-treated alloy steel shell
Noise Reduction: Resin retainer for reduced noise
Temperature Range: -20°C to +80°C (-4°F to +176°F)
Sealing: Double seals included standard at no additional cost

Name	Nominal ID (mm)	Nominal OD (mm)	Shaft Diameter (mm)	MAX Dynamic Load Rating (N)	Shop Link
EPK08GW	8.00	16.00	8.00	421.00	Shop Now
EPK12GW	12.00	22.00	12.00	813.00	Shop Now
EPK16GW	16.01	26.00	16.00	921.00	Shop Now
EPK20GW	20.01	32.00	20.00	1370.00	Shop Now
EPK25GW	25.01	40.00	25.00	1570.00	Shop Now
EPK30GW	30.01	47.00	30.00	2500.00	Shop Now
EPK40GW	40.01	62.00	40.00	3430.00	Shop Now
EPK50GW	50.01	75.00	50.00	6080.00	Shop Now

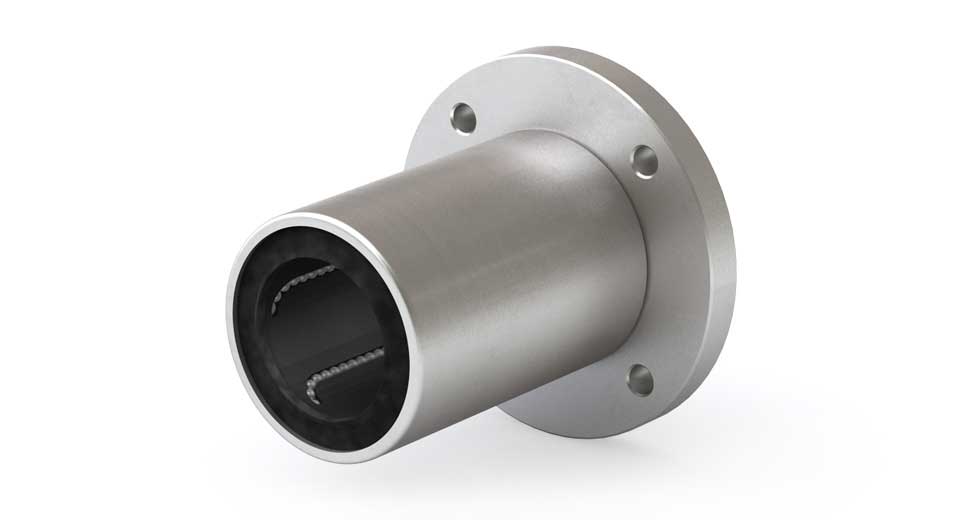

JPF (JIS) Round Flange Mount Linear Ball Bearing

Considered by many to be the default choice for linear motion applications, the JPF Round Flange Mount Linear Ball Bearing is a reliable option for most linear motion needs. This is the single-length, JIS Metric version with a round flange located at one end, commonly used in Japan and the rest of Asia. It is size interchangeable with other manufacturers and with Simplicity Linear Plain Bearings. Additional benefits include:

ID Sizes: Available from 8 mm to 50 mm
Static Load Capacities: Up to 7900 N (1700 lb)
Dynamic Load Capacities: Up to 3800 N (850 lb)
Interchangeability: Size interchangeable with industry standards and with Simplicity series
Design: Single length with end mount round flange
Low Coefficient of Friction: Ensures smooth operation
Material: Heat-treated alloy steel shell
Noise Reduction: Resin retainer for reduced noise
Temperature Range: -20°C to +80°C (-4°F to +176°F)
Sealing: Double seals included standard at no additional cost

Name	Nominal ID (mm)	Nominal OD (mm)	Shaft Diameter (mm)	MAX Dynamic Load Rating (N)	Shop Link
JPF08G	8.00	15.00	8.00	274.00	Shop Now
JPF12G	12.00	21.00	12.00	510.00	Shop Now
JPF16G	16.00	28.00	16.00	774.00	Shop Now
JPF20G	20.00	32.00	20.00	882.00	Shop Now
JPF25G	25.00	40.00	25.00	980.00	Shop Now
JPF30G	30.00	45.00	30.00	1570.00	Shop Now
JPF40G	40.00	60.00	40.00	2160.00	Shop Now
JPF50G	50.00	80.00	50.00	3820.00	Shop Now

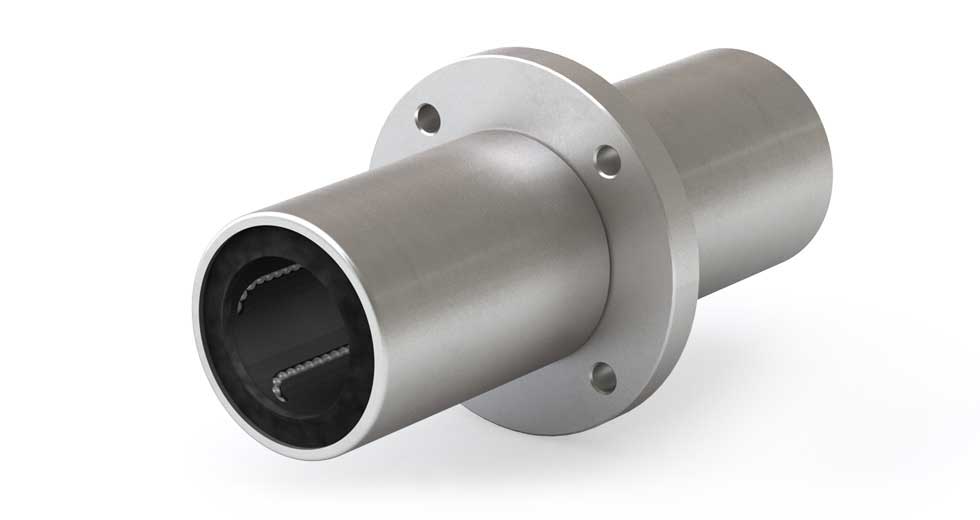

JPFC (JIS) Flanged Center Mount Linear Ball Bearing

Considered by many to be the default choice for linear motion applications, the JPFC Flanged Center Mount Linear Ball Bearing is a reliable option for most linear motion needs. This is the double-length, JIS Metric version with a round flange located at the center of the bearing, commonly used in Japan and the rest of Asia. It is size interchangeable with other manufacturers and with Simplicity Linear Plain Bearings. Additional benefits include:

ID Sizes: Available from 8 mm to 50 mm
Static Load Capacities: Up to 15,900 N (3,500 lb)
Dynamic Load Capacities: Up to 6,000 N (1,300 lb)
Static Moment Capacities: Up to 397 Nm (290 ft-lb)
Interchangeability: Size interchangeable with industry standards and with Simplicity series
Design: Double length with center mount round flange
Low Coefficient of Friction: Ensures smooth operation
Material: Heat-treated alloy steel shell
Noise Reduction: Resin retainer for reduced noise
Temperature Range: -20°C to +80°C (-4°F to +176°F)
Sealing: Double seals included standard at no additional cost

Name	Nominal ID (mm)	Nominal OD (mm)	Shaft Diameter (mm)	MAX Dynamic Load Rating (N)	Shop Link
JPFC12G	12.00	21.00	12.00	813.00	Shop Now
JPFC16G	16.00	28.00	16.00	1230.00	Shop Now
JPFC20G	20.00	32.00	20.00	1400.00	Shop Now
JPFC25G	25.00	40.00	25.00	1560.00	Shop Now
JPFC30G	30.00	45.00	30.00	2490.00	Shop Now
JPFC40G	40.00	60.00	40.00	3430.00	Shop Now
JPFC50G	50.00	80.00	50.00	6080.00	Shop Now
JPFC8G	8.00	15.00	8.00	431.00	Shop Now

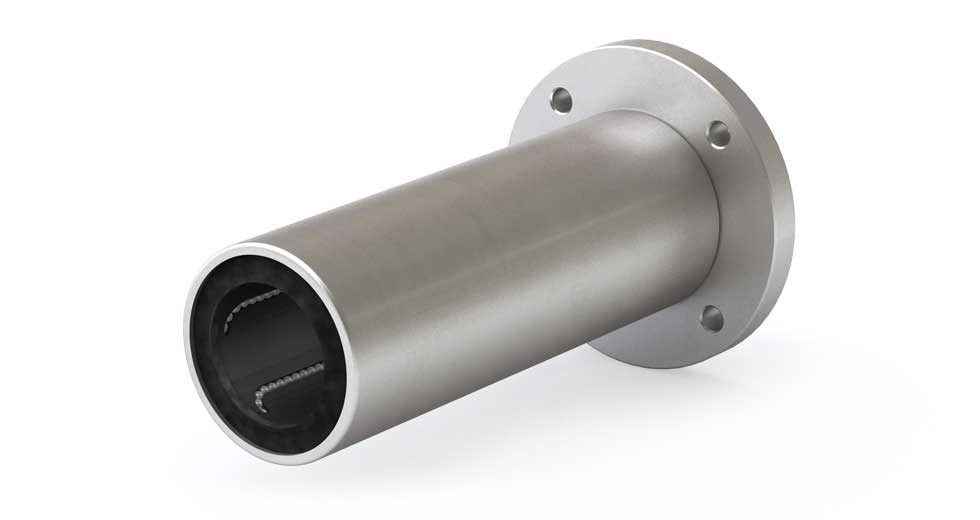

JPF-W (JIS) Flange Mount Wide Linear Ball Bearing

Considered by many to be the default choice for linear motion applications, the JPF-W Flange Mount Wide Linear Ball Bearing is a reliable option for most linear motion needs. This is the double-length, JIS Metric version with a round flange located at one end, commonly used in Japan and the rest of Asia. It is size interchangeable with other manufacturers and with the Simplicity Linear Plain Bearings. Additional benefits include:

ID Sizes: Available from 8 mm to 50 mm
Static Load Capacities: Up to 15,900 N (3,500 lb)
Dynamic Load Capacities: Up to 6,000 N (1,300 lb)
Static Moment Capacities: Up to 397 Nm (290 ft-lb)
Interchangeability: Size interchangeable with industry standards and with Simplicity series
Design: Double length with end mount round flange
Low Coefficient of Friction: Ensures smooth operation
Material: Heat-treated alloy steel shell
Noise Reduction: Resin retainer for reduced noise
Temperature Range: -20°C to +80°C (-4°F to +176°F)
Sealing: Double seals included standard at no additional cost

Name	Nominal ID (mm)	Nominal OD (mm)	Shaft Diameter (mm)	MAX Dynamic Load Rating (N)	Shop Link
JPF08GW	8.00	15.00	8.00	431.00	Shop Now
JPF12GW	12.00	21.00	12.00	813.00	Shop Now
JPF16GW	16.00	28.00	16.00	1230.00	Shop Now
JPF20GW	20.00	32.00	20.00	1400.00	Shop Now
JPF25GW	25.00	40.00	25.00	1560.00	Shop Now
JPF40GW	40.00	60.00	40.00	3430.00	Shop Now
JPF50GW	50.00	80.00	50.00	15900.00	Shop Now

JPK (JIS) Square Flange Mount Linear Ball Bearing

Considered by many to be the default choice for linear motion applications, the JPK Square Flange Mount Linear Ball Bearing is a reliable and tested option suitable for various linear motion needs. This is the single-length, JIS Metric version with a square flange located at one end, commonly used in Japan and the rest of Asia. It is size interchangeable with other manufacturers and with Simplicity Linear Plain Bearings. Additional benefits include:

ID Sizes: Available from 8 mm to 50 mm
Static Load Capacities: Up to 7,900 N (1,700 lb)
Dynamic Load Capacities: Up to 3,800 N (850 lb)
Interchangeability: Size interchangeable with industry standards and with Simplicity series
Design: Single length with end mount square flange
Low Coefficient of Friction: Ensures smooth operation
Material: Heat-treated alloy steel shell
Noise Reduction: Resin retainer for reduced noise
Temperature Range: -20°C to +80°C (-4°F to +176°F)
Sealing: Double seals included standard at no additional cost

Name	Nominal ID (mm)	Nominal OD (mm)	Shaft Diameter (mm)	MAX Dynamic Load Rating (N)	Shop Link
JPK08G	8.00	15.00	8.00	274.00	Shop Now
JPK12G	12.00	21.00	12.00	510.00	Shop Now
JPK16G	16.00	28.00	16.00	774.00	Shop Now
JPK20G	20.00	32.00	20.00	882.00	Shop Now
JPK25G	25.00	40.00	25.00	980.00	Shop Now
JPK30G	30.00	45.00	30.00	1570.00	Shop Now
JPK40G	40.00	60.00	40.00	2160.00	Shop Now
JPK50G	50.00	80.00	50.00	3820.00	Shop Now

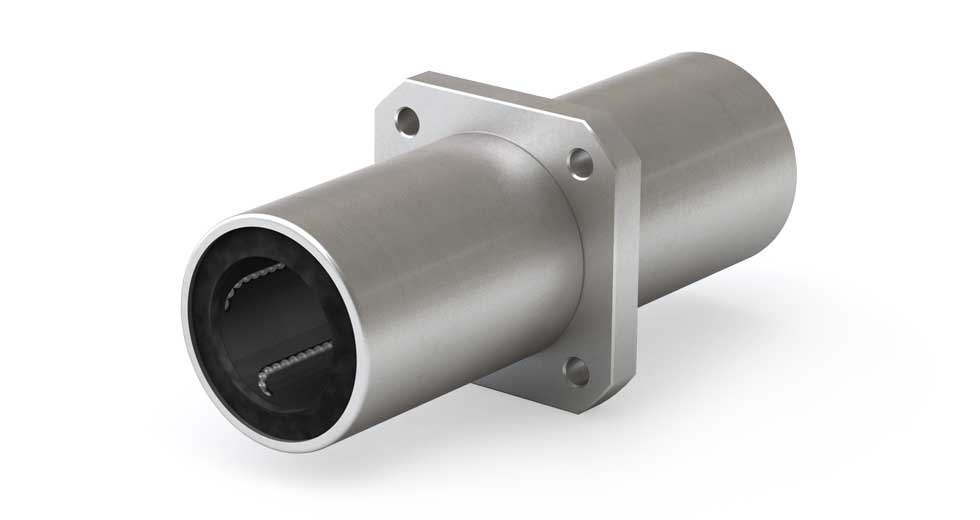

JPKC (JIS) Square Flange Center Mount Linear Ball Bearing

Considered by many to be the default choice for linear motion applications, the JPKC Square Flange Center Mount Linear Ball Bearing offers proven performance for a wide range of linear motion needs. This is the double-length, JIS Metric version with a square flange located at the center of the bearing. Commonly used in Japan and the rest of Asia, it is size interchangeable with other manufacturers and with Simplicity Linear Plain Bearings. Additional benefits include:

ID Sizes: Available from 8 mm to 50 mm
Static Load Capacities: Up to 15,900 N (3,500 lb)
Dynamic Load Capacities: Up to 6,000 N (1,300 lb)
Static Moment Capacities: Up to 397 Nm (290 ft-lb)
Interchangeability: Size interchangeable with industry standards and with Simplicity series
Design: Double length with center mount square flange
Low Coefficient of Friction: Ensures smooth operation
Material: Heat-treated alloy steel shell
Noise Reduction: Resin retainer for reduced noise
Temperature Range: -20°C to +80°C (-4°F to +176°F)
Sealing: Double seals included standard at no additional cost

Name	Nominal ID (mm)	Nominal OD (mm)	Shaft Diameter (mm)	MAX Dynamic Load Rating (N)	Shop Link
JPKC08G	8.00	15.00	8.00	431.00	Shop Now
JPKC12G	12.00	21.00	12.00	813.00	Shop Now
JPKC16G	16.00	28.00	16.00	1230.00	Shop Now
JPKC20G	20.00	32.00	20.00	1400.00	Shop Now
JPKC25G	25.00	40.00	25.00	1560.00	Shop Now
JPKC30G	30.00	45.00	30.00	2490.00	Shop Now
JPKC40G	40.00	60.00	40.00	3430.00	Shop Now
JPKC50G	50.00	80.00	50.00	6080.00	Shop Now

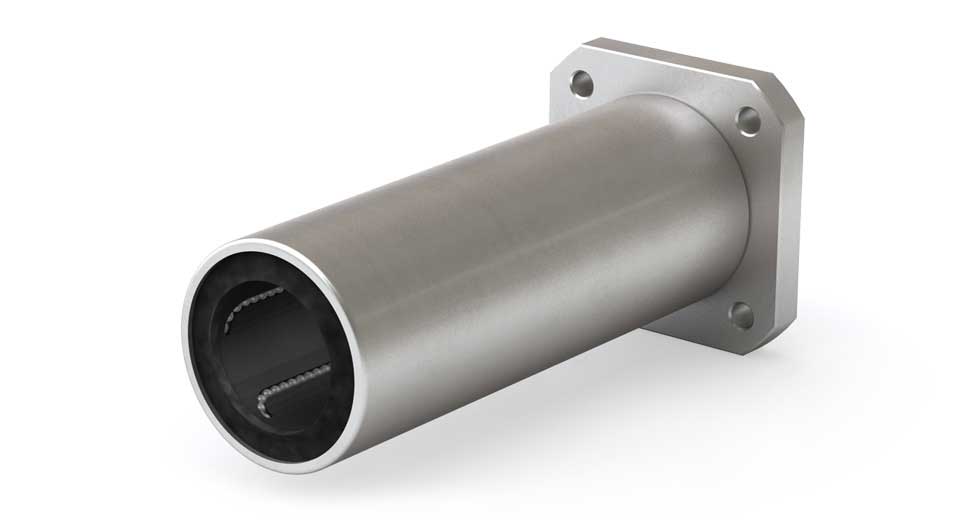

JPK-W (JIS) Square Flange Mount Wide Linear Ball Bearing

Regarded as a reliable choice for linear motion applications, the JPK-W Square Flange Mount Wide Linear Ball Bearing is designed for robust performance. This double-length, JIS Metric version features a square flange located at one end. Widely used in Japan and Asia, it is interchangeable with other manufacturers and Simplicity Linear Plain Bearings. Additional benefits include:

ID Sizes: Available from 8 mm to 50 mm
Static Load Capacities: Up to 15,900 N (3,500 lb)
Dynamic Load Capacities: Up to 6,000 N (1,300 lb)
Static Moment Capacities: Up to 397 Nm (290 ft-lb)
Interchangeability: Size interchangeable with industry standards and with Simplicity series
Design: Double length with end mount square flange
Low Coefficient of Friction: Ensures smooth operation
Material: Heat-treated alloy steel shell
Noise Reduction: Resin retainer for reduced noise
Temperature Range: -20°C to +80°C (-4°F to +176°F)
Sealing: Double seals included standard at no additional cost

Name	Nominal ID (mm)	Nominal OD (mm)	Shaft Diameter (mm)	MAX Dynamic Load Rating (N)	Shop Link
JPK08GW	8.00	15.00	8.00	431.00	Shop Now
JPK12GW	12.00	21.00	12.00	813.00	Shop Now
JPK16GW	16.00	28.00	16.00	1230.00	Shop Now
JPK20GW	20.00	32.00	20.00	1400.00	Shop Now
JPK25GW	25.00	40.00	25.00	1560.00	Shop Now
JPK30GW	30.00	45.00	30.00	2490.00	Shop Now
JPK40GW	40.00	60.00	40.00	3430.00	Shop Now
JPK50GW	50.00	80.00	50.00	6080.00	Shop Now

Most searched for today
